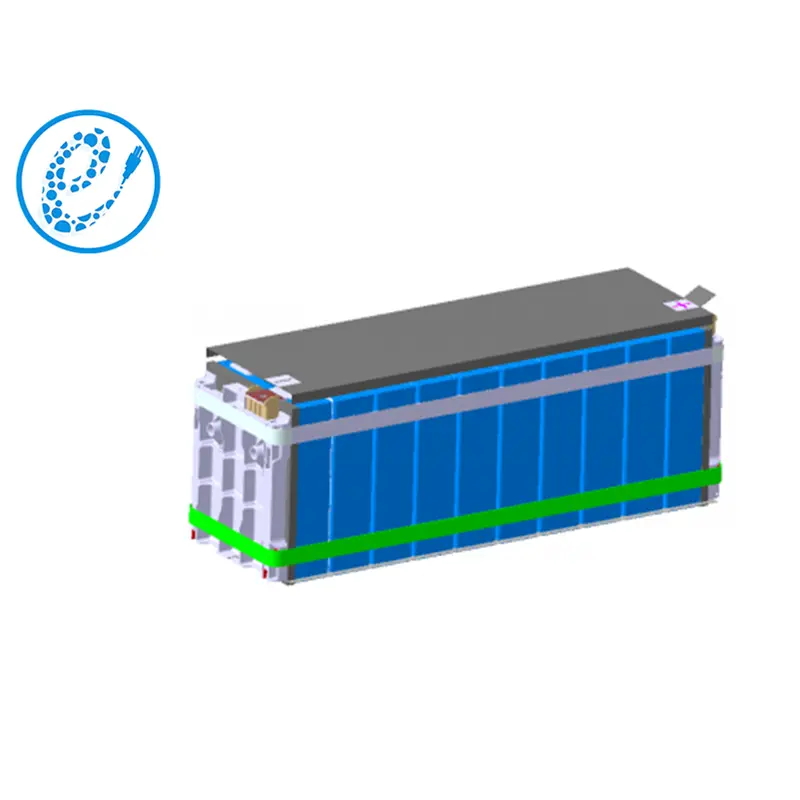

The EcoPowerBattery MS0302-45.08V228Ah features a rated voltage of 45.08V, rated capacity of 228Ah, and 1P14S configuration. Its intelligent Battery Management System (BMS) optimises energy distribution and improves efficiency and performance. Minimises energy loss and extends the overall life of the battery.
| No. | Items | EP-LFP228Ah STANDARD MODULE | Note | |||
| MS0302-32.2V228A | MS0302-45.08V228A | MS0302-51.52V228A | ||||
| 228AH1P10S | 228AH1P14S | 228AH1P16S | ||||
| 1 | Nominal voltage(V) | 32.2 | 45.08 | 51.52 | ||
| 2 | Operating voltage(V) | min | 25 | 35 | 40 | T＞0℃ |
| 3 | max | 36.5 | 51.1 | 58.4 | ||
| 4 | Nominal capacity(Ah) | 228 | 1/3C，100%DOD | |||
| 5 | Nominal energy（KWh ） | 7.341 | 10.278 | 11.746 | 1/3C，100%DOD | |
| 6 | Cell Configuration | 1P10S | 1P14S | 1P16S | ||
| 7 | Maximum continuous charge current（A） | 114 | ||||
| 8 | Maximum continuous discharge current（A） | 228 | ||||
| 9 | Maximum pulse discharge current（≤180s）（A） | 456 | ||||
| 10 | SOC operating range（%） | 10~90 | ||||
| 11 | Insulation requirements(MΩ) | ≥20 | ||||
| 12 | Module cooling method | Natural cooling | ||||
| 13 | Module heating film | No | Or heating film | |||
| 14 | Shipping capacity (SOC) | ≈30% | SOC is consistency in the same batch | |||
| 15 | Dimension L （mm） | 592 | 823.1 | 934.5 | ||
| Dimension B （mm） | 178 | 178 | 178 | |||
| Dimension H （mm） | 224 | 224 | 224 | |||
