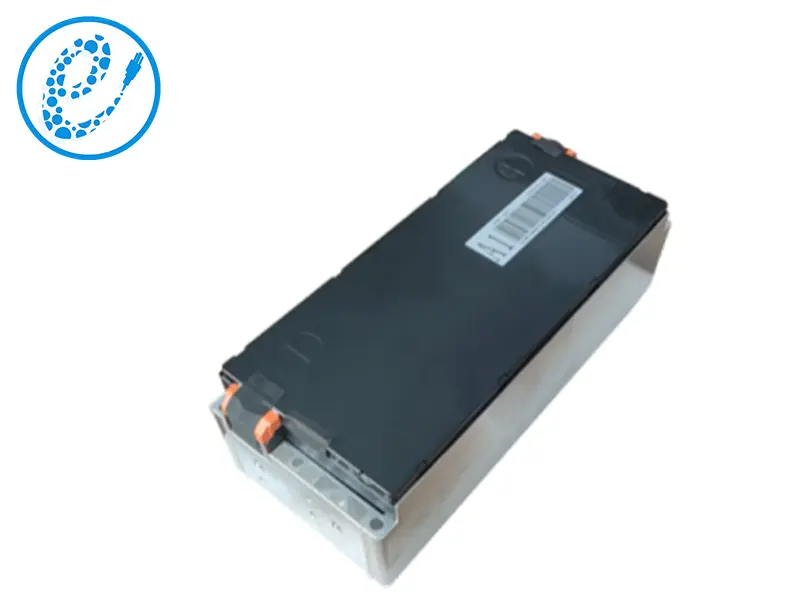

MS0505-14.92V177A (177AH1P4S) It has a rated capacity of 177Ah and a rated voltage of 14.92V with a 1P4S design. This module can provide stable and reliable power supply to meet the needs of different applications, such as electric forklifts, electric trucks and so on.
| No. | Items | MS0505-14.92V177A | Note | ||
| 177Ah1P4S | |||||
| 1 | Nominal voltage(V) | 14.92(1/3C) | 14.64(1C) | ||
| 2 | Operating voltage(V) | min | 11.2 | 11.2 | |
| 3 | max | 17.4 | 17.4 | ||
| 4 | Nominal capacity(Ah) | 177 | 174 | 25°C | |
| 5 | Nominal energy（KWh ） | 2.641 (1/3C) | 2.54736(1C) | 25°C | |
| 6 | Cell Configuration | 1P4S | |||
| 7 | Module weight（Kg） | 16 | |||
| 8 | Maximum continuous charge current（A） | ≤211.3A | |||
| 9 | Maximum continuous discharge current（A） | ≤348 A | |||
| 10 | Maximum pulse discharge current（≤30s）（A） | ≤465A | |||
| 11 | SOC operating range（%） | 10~90 | |||
| 12 | Insulation requirements(MΩ) | ≥20 | |||
| 13 | Module cooling method | Natural cooling | |||
| 14 | Module heating film | NO | |||
| 15 | Shipping capacity (SOC) | ≈30% | SOC is consistency in the same batch | ||
| 16 | Dimension L （mm） | 355 | |||
| Dimension B （mm） | 151.5 | ||||
| Dimension H （mm） | 108.5 | ||||
