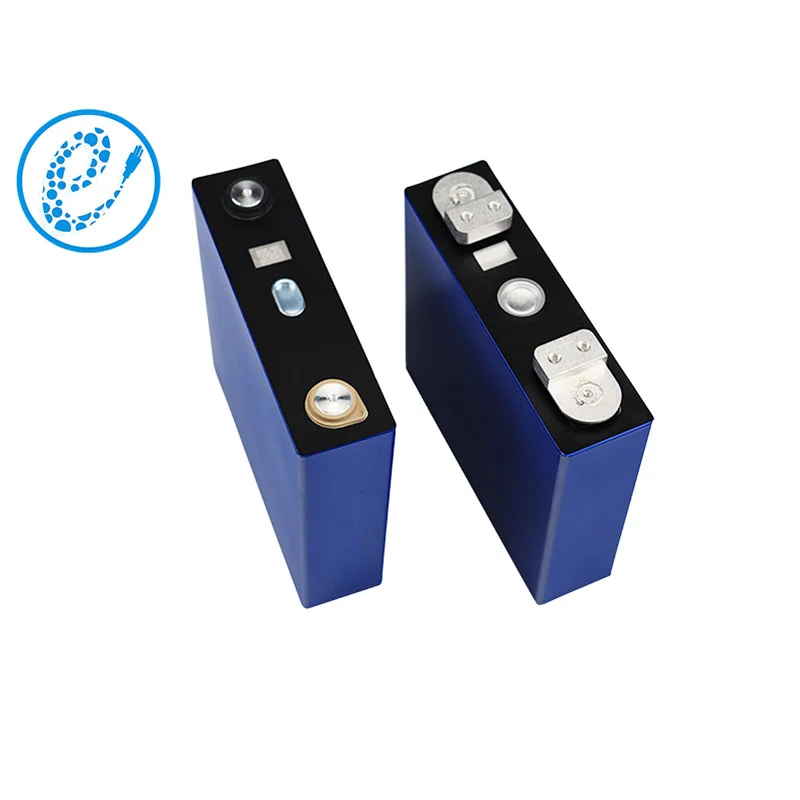

LiFePO4 batteries with 100Ah lithium lifepo are a popular choice for energy storage due to their high energy density, superior cycle life and low cost. These 100Ah lithium batteries are capable of delivering up to 100Ah of power, making these electric tourist vehicle lithium ion battery an excellent choice for powering electronics, electric vehicles and renewable energy storage systems.
| Item | specification | |
| Dimension | 47.8mm *173.9mm *132.6mm | |
| Weight | 2.2kg | |
| Min. capacity | 100Ah (0.5C)@ 25℃ | |
| Min. energy | 320Wh (0.5C)@ 25℃ | |
| Recommended SOC usage window | 10~90% | |
| Terminal | Welding | |
| Impedance ( 1kHz) | ≤0.4mΩ | |
| Voltage | Max. | 3.65V |
| Nominal | 3.2V | |
| Min. | 2.5V（T＞0℃） | |
| Current | Maximum continuous charge | 100A |
| Maximum continuous discharge | 100A | |
| Energy density | Gravimetric | 145Wh/kg |
| Volumetric | 290Wh/L | |
| Temp. Condition | Operation (Charge) | 0~55℃ |
| Operation (Discharge) | -10~55℃ | |
| Storage | 0~45℃ | |
| Self-Discharge Rate | Count after fresh cell need Standard Chargeto 50%SOC and storage at 25+2°C for 3 months | ≤3% |
| Cycle Life | 0.5C/1C,80% DOD 25℃ | 4000 cycles |
| Abuse test | Overcharge, Over-discharge, Short, Heat | GB/T 31485-2015 |
