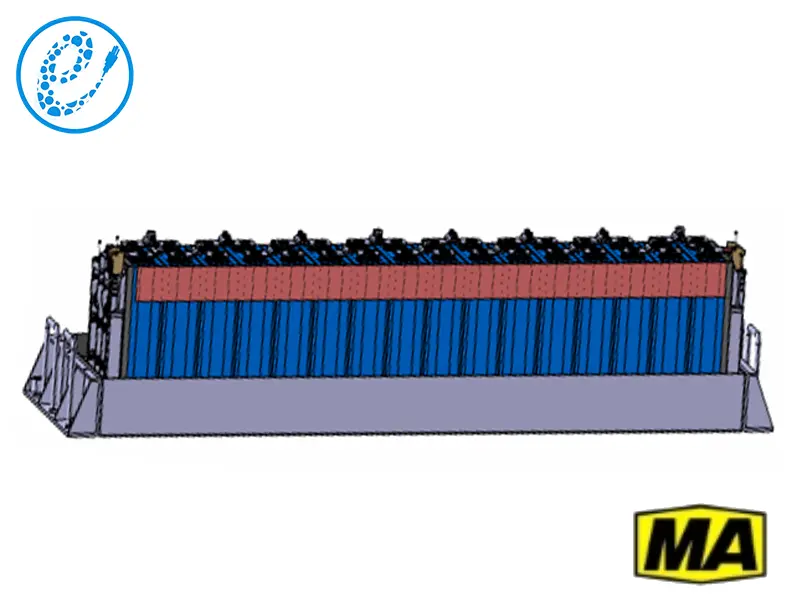

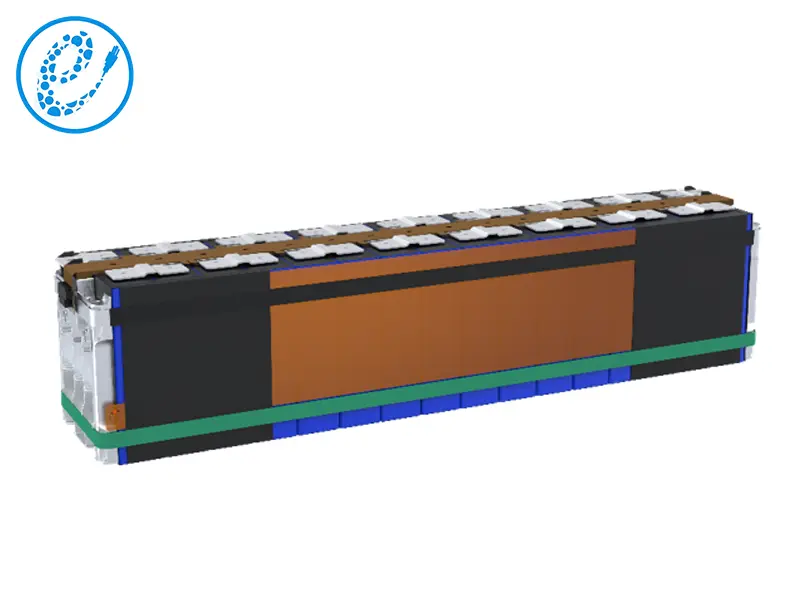

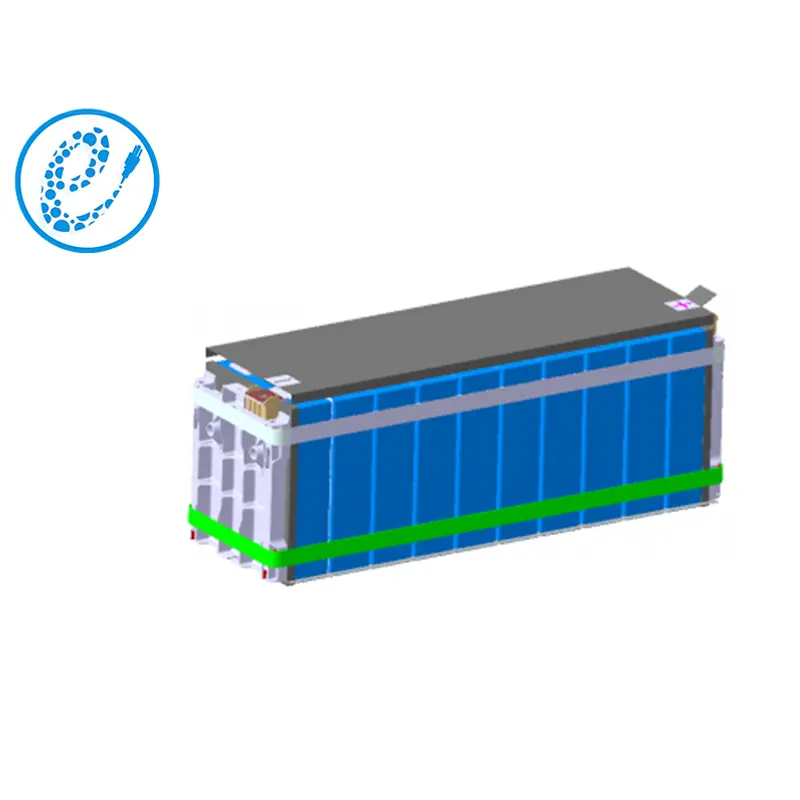

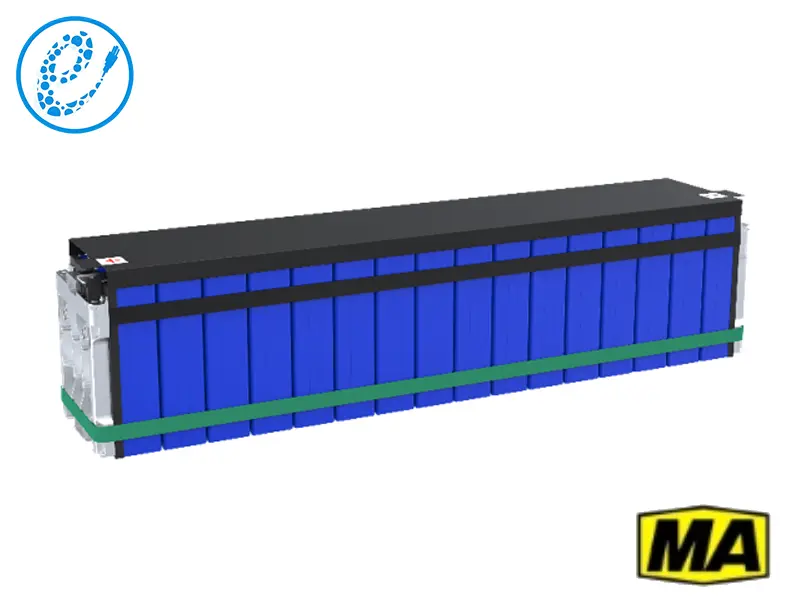

EcoPowerBattery MS0302-51.52V228A-(228AH1P16S) With a capacity of 228Ah and a rated voltage of 51.52V, the EcoPowerBattery MS0302-51.52V228A-(228AH1P16S) is a battery that will provide a great deal of power for a wide variety of your applications. Whether you're driving an electric car or installing an off-grid solar system, this battery delivers amazing output to ensure an uninterrupted supply of power when you need it most.
| No. | Items | EP-LFP228Ah STANDARD MODULE | Note | |||
| MS0302-32.2V228A | MS0302-45.08V228A | MS0302-51.52V228A | ||||
| 228AH1P10S | 228AH1P14S | 228AH1P16S | ||||
| 1 | Nominal voltage(V) | 32.2 | 45.08 | 51.52 | ||
| 2 | Operating voltage(V) | min | 25 | 35 | 40 | T＞0℃ |
| 3 | max | 36.5 | 51.1 | 58.4 | ||
| 4 | Nominal capacity(Ah) | 228 | 1/3C，100%DOD | |||
| 5 | Nominal energy（KWh ） | 7.341 | 10.278 | 11.746 | 1/3C，100%DOD | |
| 6 | Cell Configuration | 1P10S | 1P14S | 1P16S | ||
| 7 | Maximum continuous charge current（A） | 114 | ||||
| 8 | Maximum continuous discharge current（A） | 228 | ||||
| 9 | Maximum pulse discharge current（≤180s）（A） | 456 | ||||
| 10 | SOC operating range（%） | 10~90 | ||||
| 11 | Insulation requirements(MΩ) | ≥20 | ||||
| 12 | Module cooling method | Natural cooling | ||||
| 13 | Module heating film | No | Or heating film | |||
| 14 | Shipping capacity (SOC) | ≈30% | SOC is consistency in the same batch | |||
| 15 | Dimension L （mm） | 592 | 823.1 | 934.5 | ||
| Dimension B （mm） | 178 | 178 | 178 | |||
| Dimension H （mm） | 224 | 224 | 224 | |||
