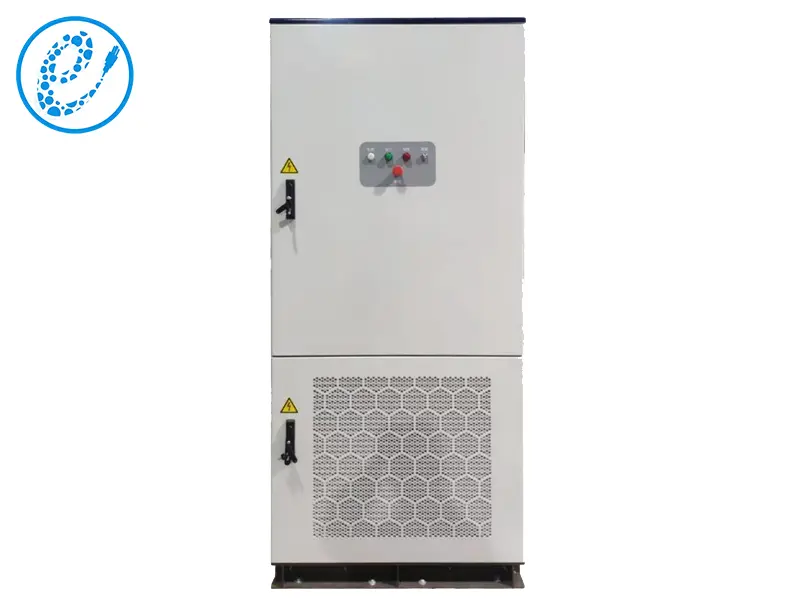

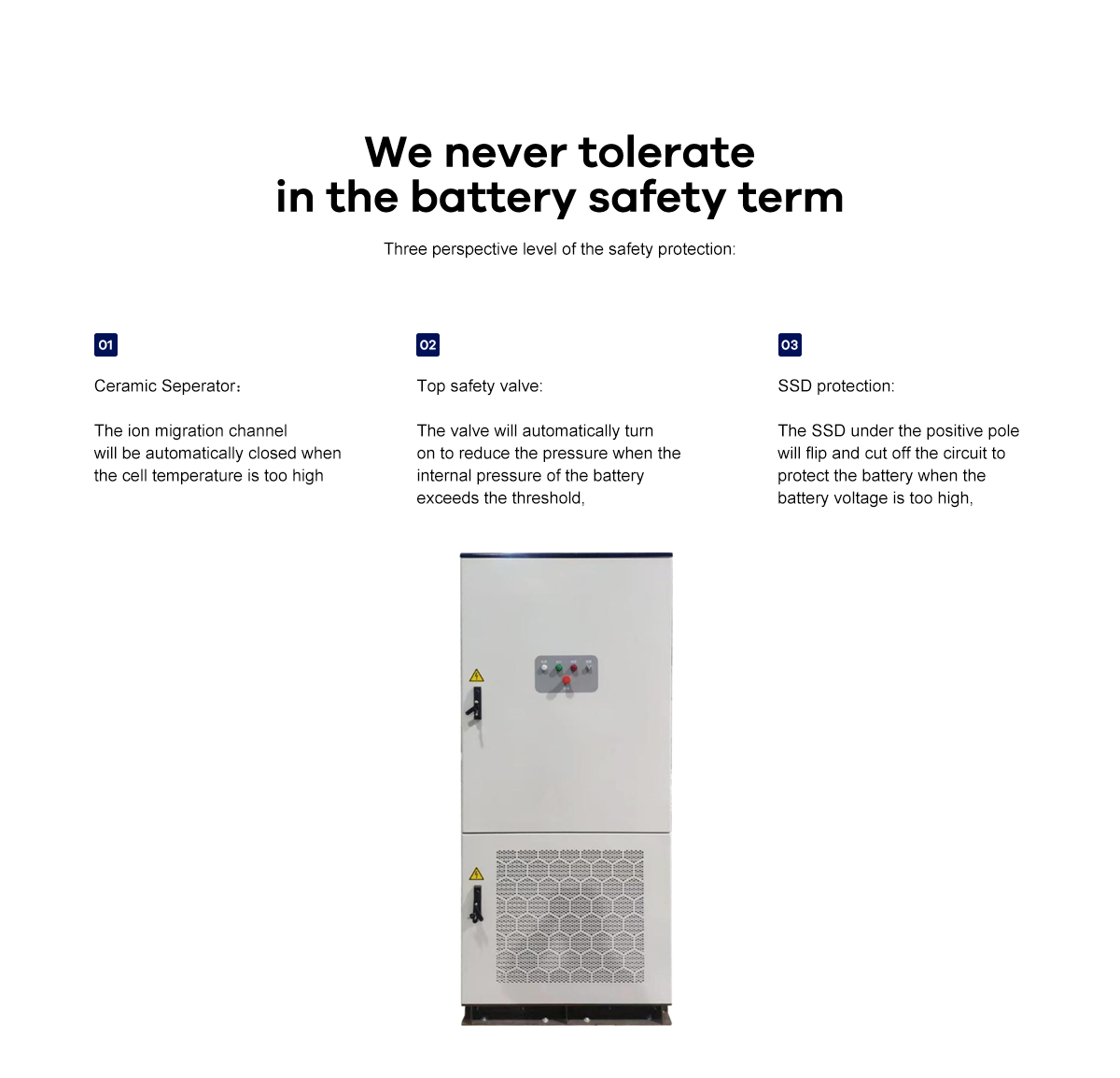

The liquid-cooled commercial and industrial energy storage system features a distributed integrated design, ideal for backup power, peak shaving, and capacity enhancement. With an energy capacity of 215kWh (280Ah, 1P240S configuration), it connects directly to a 400Vac AC bus, providing reliable and versatile energy solutions.
| Model | SS12XXXX-768V280A(280AH1P240S) | Remarks |
| Battery System | ||
| Cell Type | 3.2V/280Ah，LFP | |
| System rated capacity | 215kWh | |
| Battery Grouping Method | 5*1P48S | |
| Charge/discharge C-rate | ≤0.5P | |
| System efficiency | ≥86% | |
| Operating Temperature Range | Discharge:-20~55℃ Charge:0~55℃ | |
| UPS | Off-grid option | |
| Fire-fighting method | Perfluoroacetone/Aerosol Option | |
| Communication method | RS485, Modbus-TCP, LAN | |
| Cooling method | Liquid cooling | |
| Protection class | IP54 | |
| Anti-corrosion class | C4 | |
| Weight | 2.4t | |
| Dimension(W*D*H) | 1000*1350*2350mm(without hanging ring) | |
| Humidity Range | 0~95%(no condensation) | |
| Maximum Working Altitude | 5000m(>3000m derating) |
