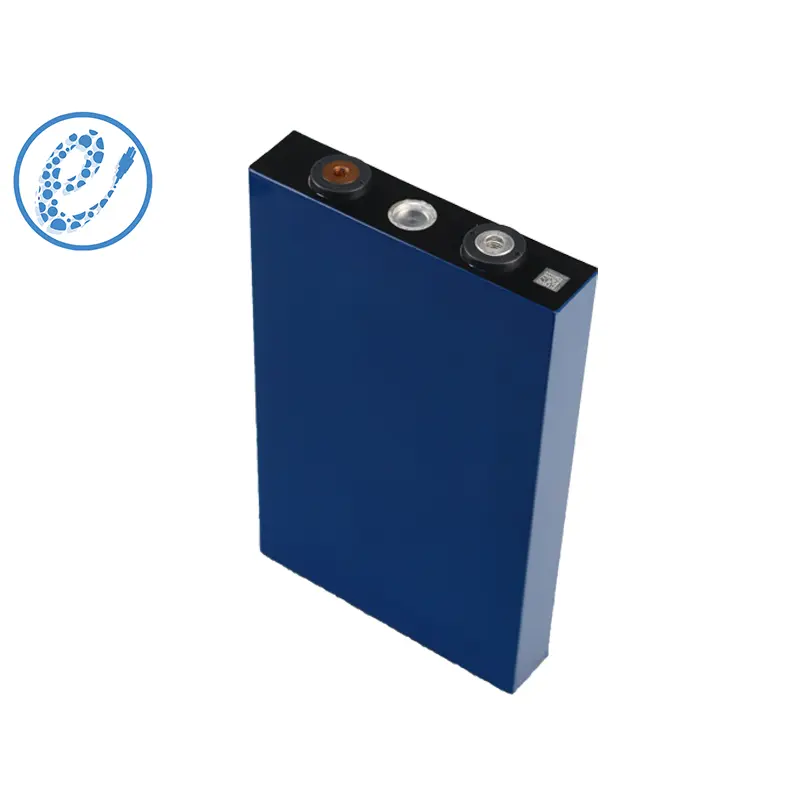

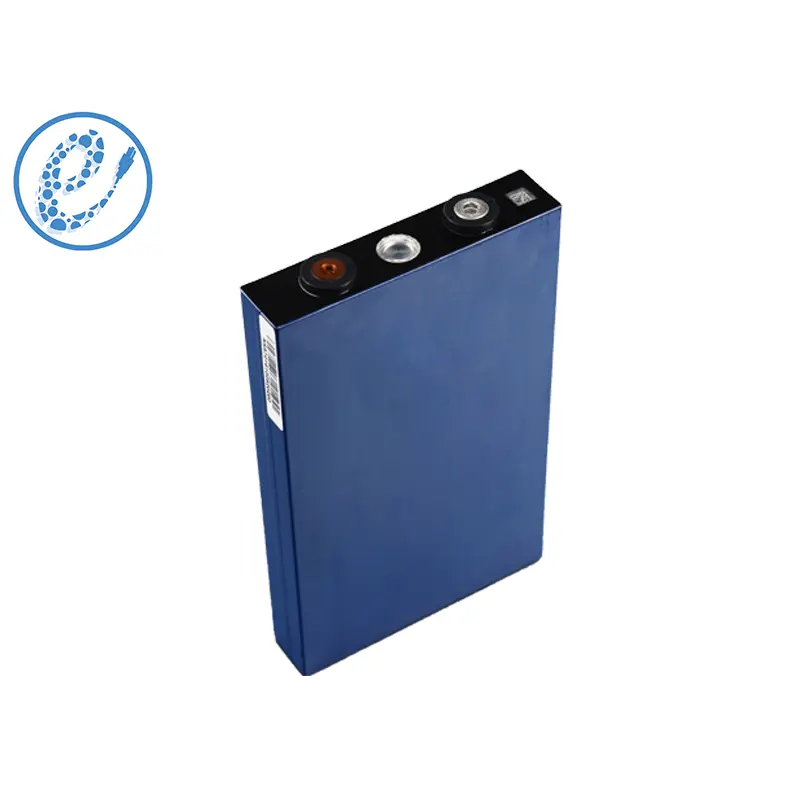

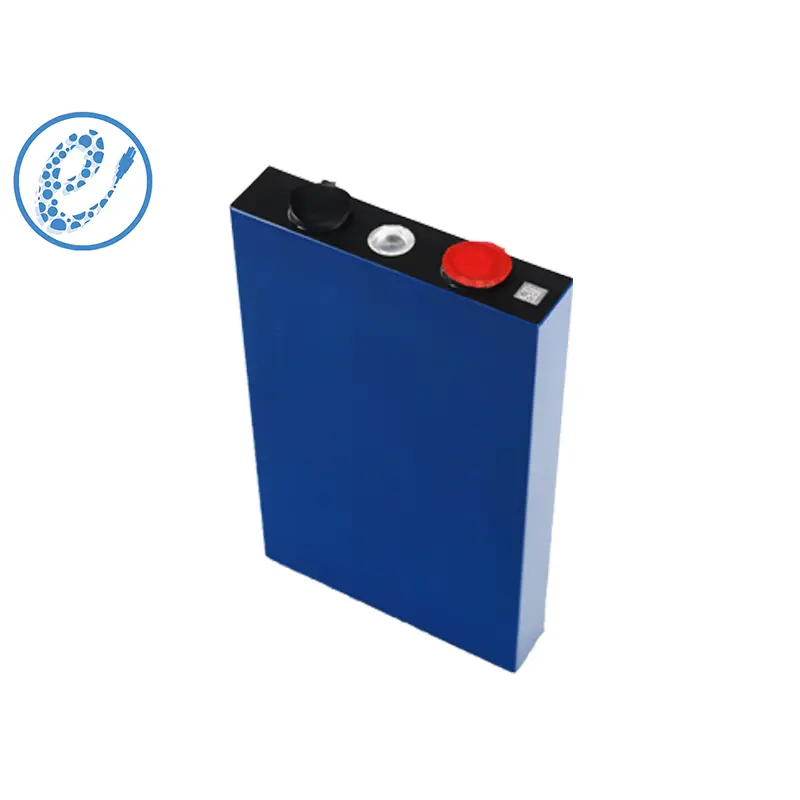

The EcoPower C1-LFP72 boasts cutting-edge Lithium Iron Phosphate (LiFePO4) battery technology, providing you with unmatched performance. With capacity of 72Ah, this energy storage system ensures a consistent and stable power supply for all your energy needs. Whether you are powering your home, business, or an off-grid installation, the C1-LFP72W battery delivers the energy you can rely on.
| Item | Specification | |

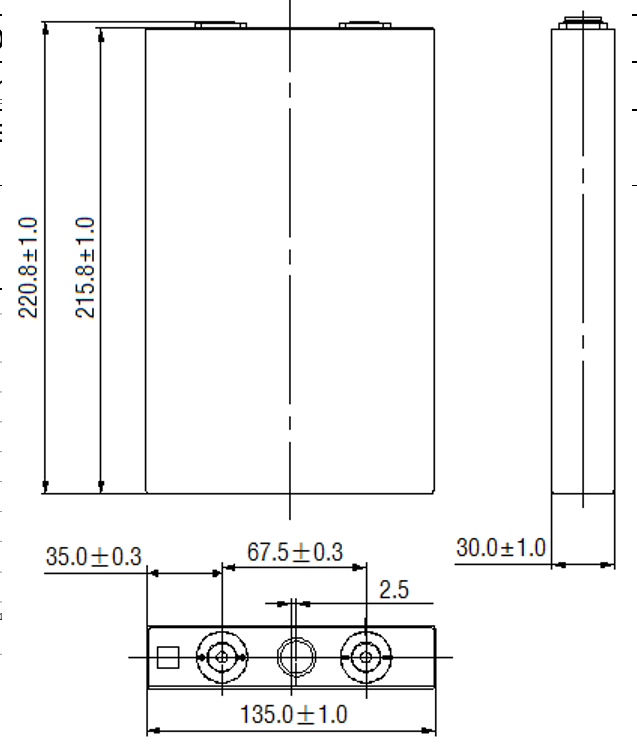

| Dimension | 29mm *135mm * 220.8mm | |
| Weight | 1.75±0.1kg | |
| Min. capacity | 72Ah (1/3C) @ 25℃ 100DOD% | |
| Min. energy | 230.4Wh (1/3C) @ 25℃ 100DOD% | |
| SOC window | 10 ~ 90% | |
| Terminal | Welding | |
| Impedance（1kHz） | ≤1 mΩ | |
| Voltage | Max. | 3.65V |
| Nominal | 3.2V | |
| Min. | 2.5V | |
| Current | Maximum continuous charge | 72A |
| Maximum continuous discharge | 144A | |
| Energy density | Gravimetric | 131Wh/kg |
| Volumetric | 266Wh/L | |
| Temp. Condition | Operation (Charge) | 0~45°C |
| Operation (Discharge) | -20~55°C | |
| Storage | -20°C ~ 50°C | |
| Cycle Life | 1/3C/ 1/3C, 80% DOD 25℃ | 2000 cycles |
| Abuse test | Overcharge, Over-discharge, Short, Heat | GB/T 31485-2015 |
