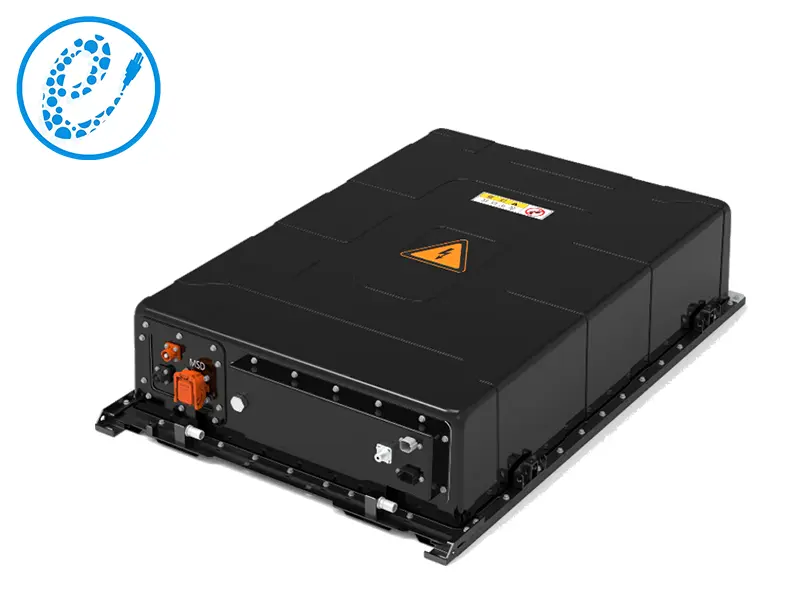

High-capacity lithium battery system offering 166.4V and 314A (314Ah) capacity, configured in a 52-series arrangement. This lithium polymer battery pack is ideal for electric vehicle, ess, and renewable energy microgrids.
| No. | Items | EP-LFP314Ah STANDARD PACK | Note | |
| PS131502-166.4V314A | ||||
| 314AH1P52S | ||||
| 1 | Nominal voltage(V) | 166.4 | ||
| 2 | Operating voltage(V) | min | 130 | T＞0℃ |
| 3 | max | 189.8 | ||
| 4 | Nominal capacity(Ah) | 314 | ||
| 5 | Nominal energy（KWh ） | 52.249 | ||
| 6 | Cell Configuration | 1P52S | ||
| 7 | Nominal Charge Rate | 0.5P | ||
| 8 | Nominal Discharge Rate | 0.5P | ||
| 9 | SOC operating range（%） | 10~90 | ||
| 10 | Insulation requirements(MΩ) | ≥20 | ||
| 11 | Module cooling method | Natural cooling | ||
| 12 | Module heating method | No | Or heating film | |
| 13 | Shipping capacity (SOC) | ≈30% | SOC is consistency in the same batch | |
| 14 | Dimension L （mm） | 1160 | ||
| Dimension B （mm） | 810 | |||
| Dimension H （mm） | 250 | |||
