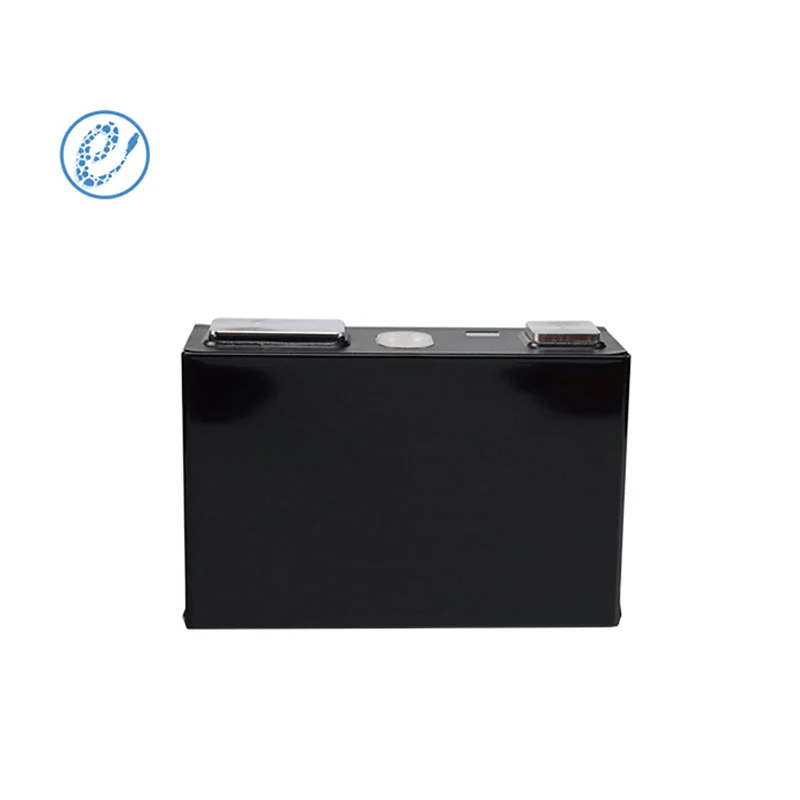

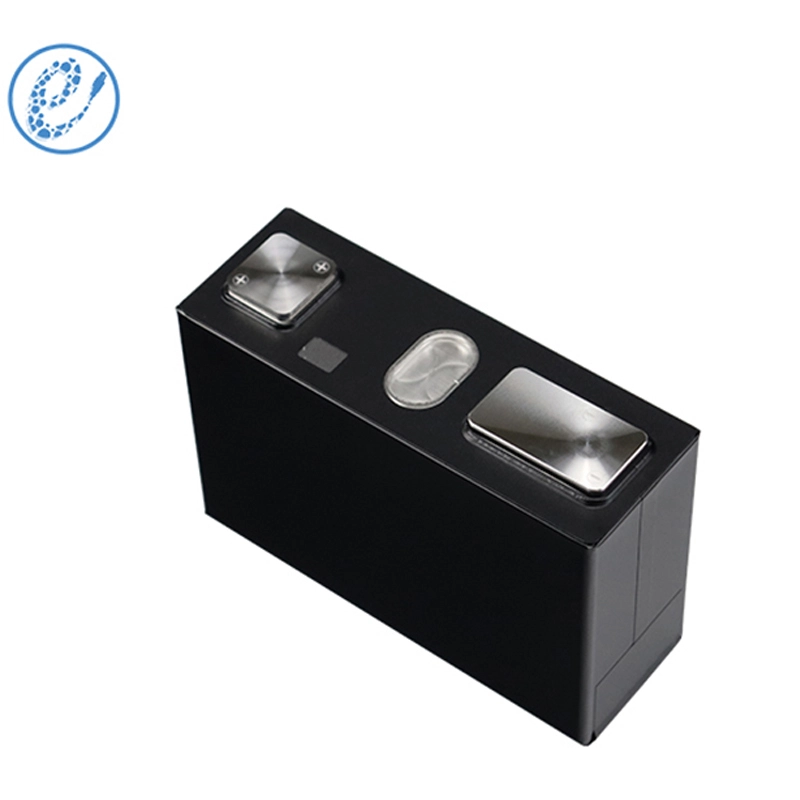

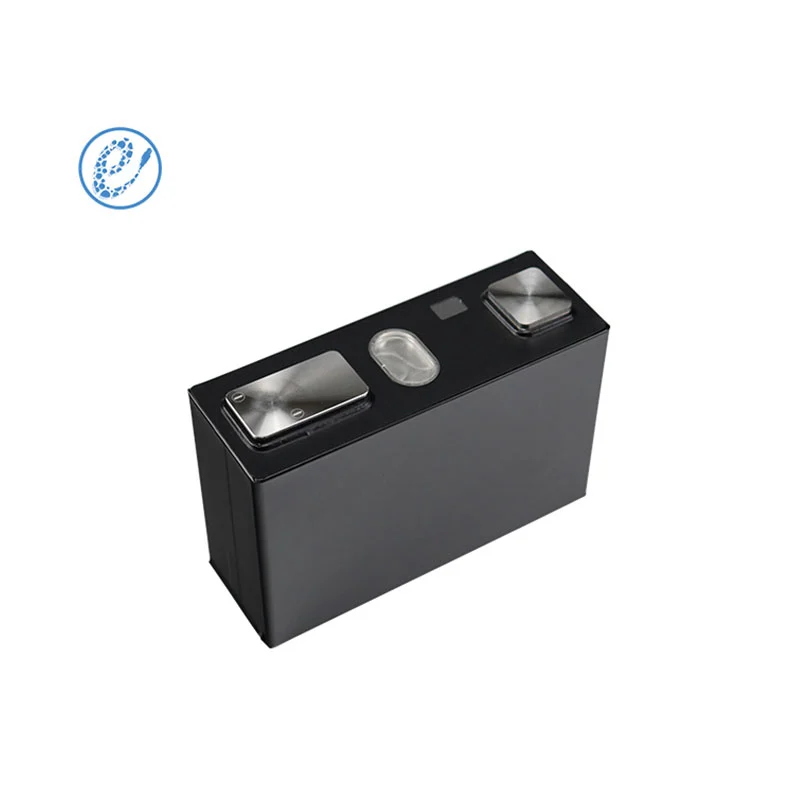

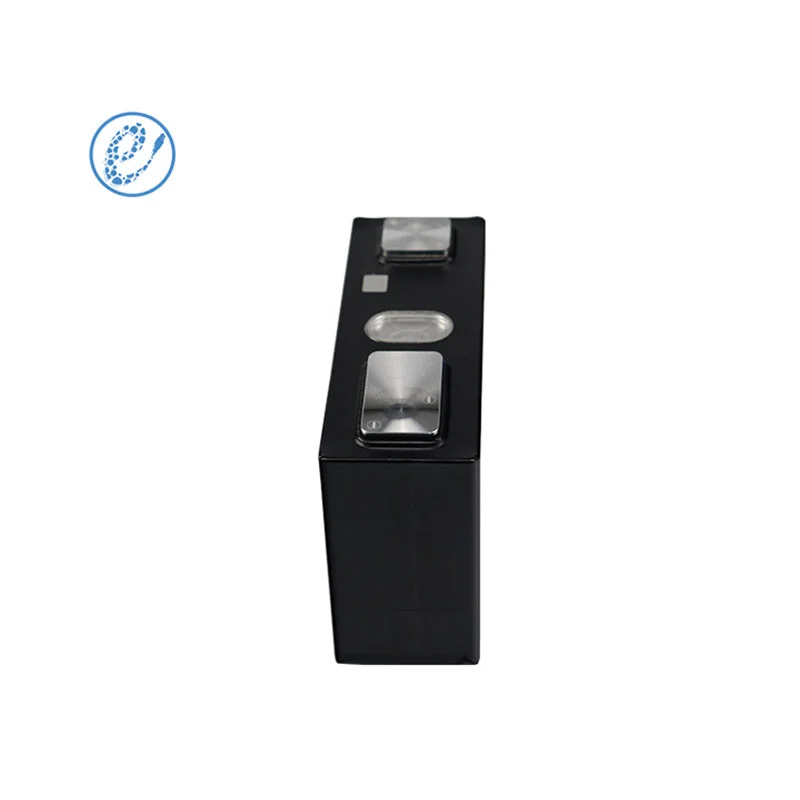

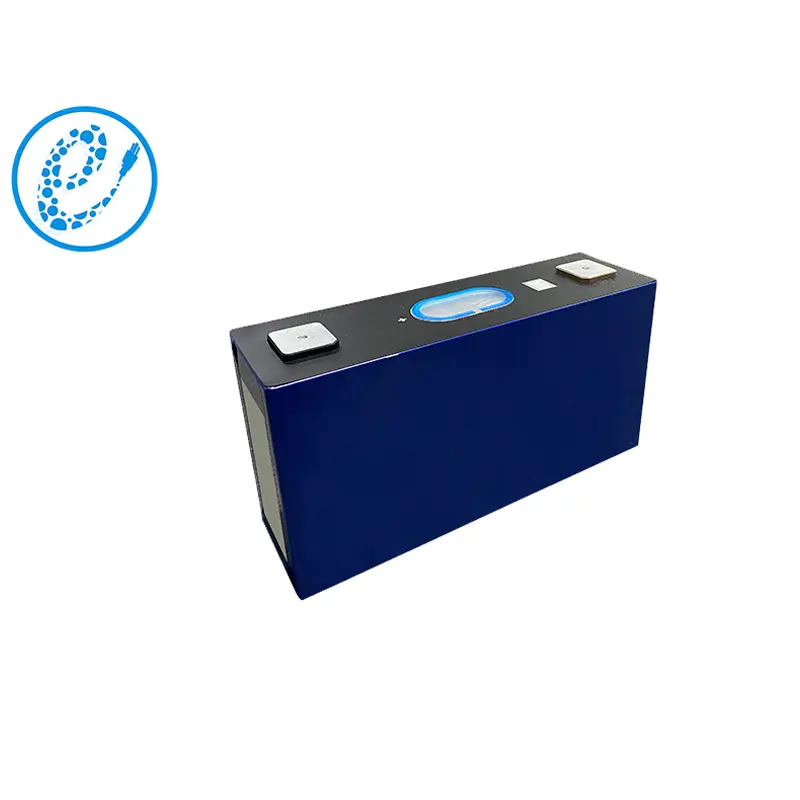

C3-NCM102Ah Lithium ion battery is a rechargeable energy storage device. It has a robust design, making it resistant to shocks, vibrations, and other environmental factors. It is rated for up to 2000 charge-discharge cycles and is designed for a wide temperature range.
| Item | Specification | |

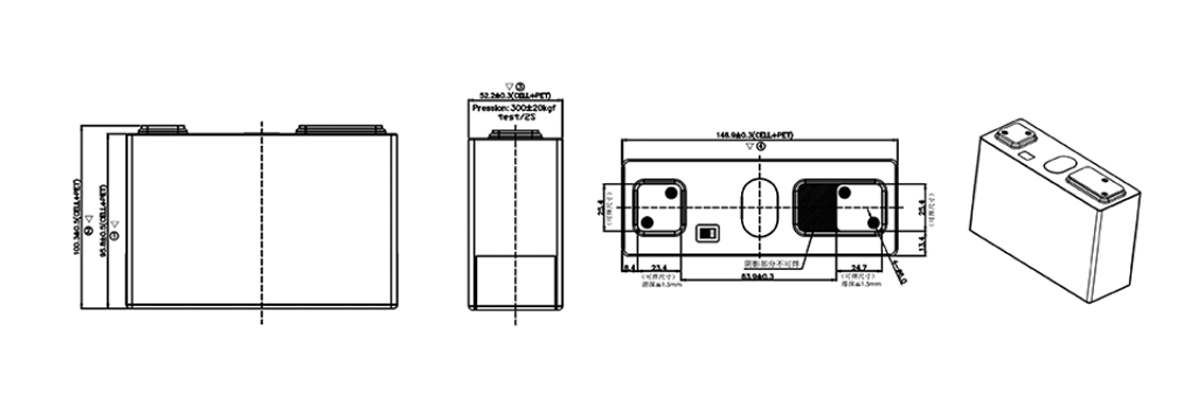

| Dimension | 148.9mm x52.2mm x100.3mm | |
| Weight | 1.70±0.03kg | |
| Min. capacity | 102Ah (1/3C)@25℃ | |
| Min. energy | 377.4Wh (1/3C)@25℃ | |
| Recommended SOC usage window | 5%~100% | |
| Terminal | Welding/Nut | |
| Impedance (1kHz) | Impedance (1kHz) | ≤0.5mΩ (60%SOC BOL) |
| Voltage | Max. | 4.3V |
| Nominal | 3.66V(1C) 3.7V (1/3C) | |
| Min. | 2.8V(T >0℃) 2.5V ( -20℃<T≤0℃) 2.1V (T≤-20 ℃) | |
| Current | Maximum Pulse Charging Current（≤10S，≤70% SOC, 25℃) | 300A |
| Maximum Pulse Discharging Current（≤10S，≥20% SOC, 25℃) | 400A | |
| Energy density | Gravimetric | 222Wh/kg |
| Volumetric | 484Wh/L | |
| Temp. Condition | Operation (Charge) | -20~55℃ |
| Operation (Discharge) | -30~55℃ | |
| Storage | -30~55℃ | |
| Self-Discharge Rate | Count after fresh cell need Standard Charge to 50%SOC and storage at 25+2°C for 3 months | ≤3% |
| Cycle Life | 1C/3C/1C,80%DOD 25℃ | 2000 cycles |
| Abuse test | Overcharge, Over-discharge, Short, | GB/T 31485-2015 |
