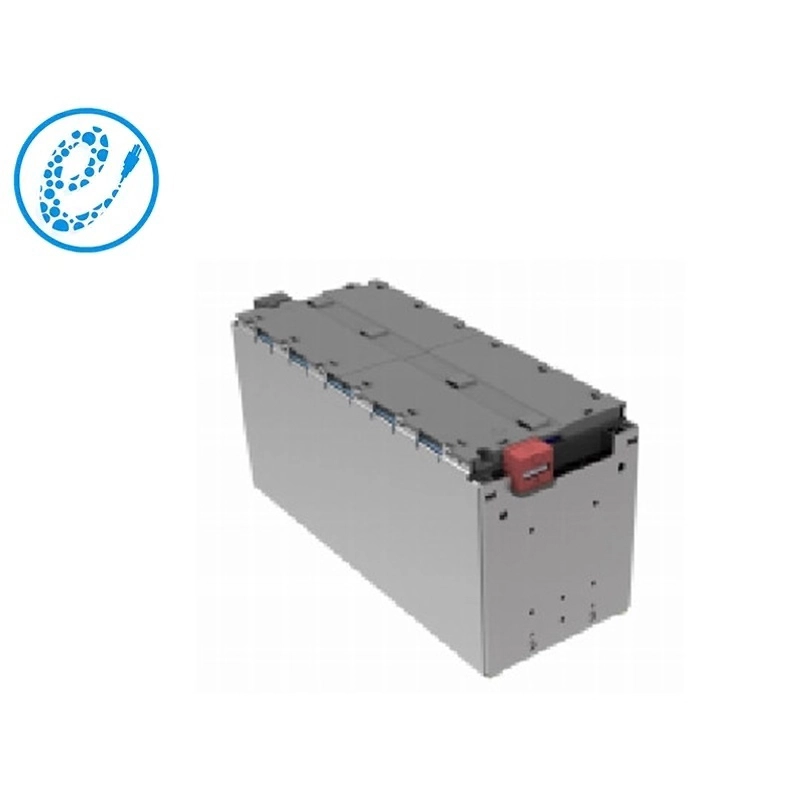

The MS0210-32V206A-(206Ah1P10S) has a battery capacity of 206Ah and a voltage of 32V, which ensures long-lasting power support for your devices and systems without the need for frequent charging. Whether you are powering electric vehicles, off-grid systems or commercial equipment, this battery ensures a stable and efficient power supply.

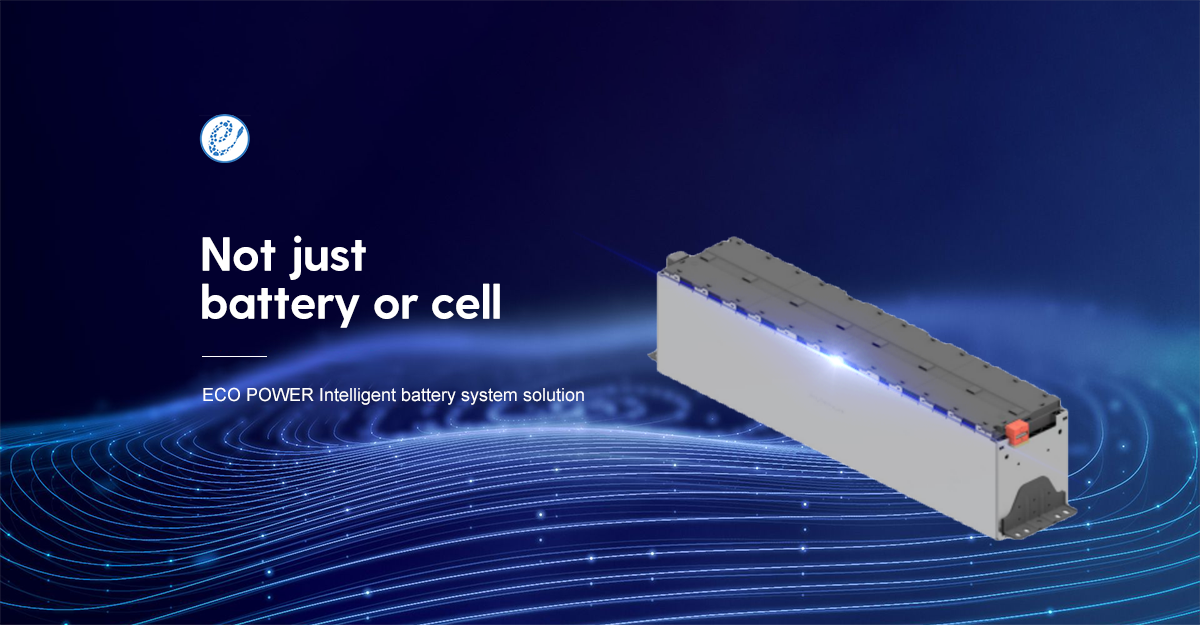

LFP1200_01.png "MS0210-32V206A-(206Ah1P10S)LFP1200_01.png")
| No. | Items | EP-LFP206Ah STANDARD MODULE | Note | |
| MS0210-32V206A | ||||
| (206Ah1P10S) | ||||
| 1 | Nominal voltage(V) | 32 | ||
| 2 | Operating voltage(V) | min | 25 | T＞0℃ |
| 3 | max | 36.5 | ||
| 4 | Nominal capacity(Ah) | 206 | 1/3C，100%DOD | |
| 5 | Nominal energy（KWh ） | 6.592 | 1/3C，100%DOD | |
| 6 | Cell Configuration | 1P10S | ||
| 7 | Maximum continuous charge current（A） | 206 | ||
| 8 | Maximum continuous discharge current（A） | 206 | ||
| 9 | Maximum pulse discharge current（≤60s）（A） | 412 | ||
| 10 | SOC operating range（%） | 10~90 | ||
| 11 | Insulation requirements(MΩ) | ≥20 | ||
| 12 | Module cooling method | Natural cooling | ||
| 13 | Module heating film | No | Or heating film | |
| 14 | Shipping capacity (SOC) | ≈30% | SOC is consistency in the same batch | |
| 15 | Dimension L （mm） | 641.05 | ||
| Dimension B （mm） | 179 | |||
| Dimension H （mm） | 220.5 | |||
LFP1200_03.png "MS0210-32V206A-(206Ah1P10S)LFP1200_03.png")
LFP1200_04.png "MS0210-32V206A-(206Ah1P10S)LFP1200_04.png")

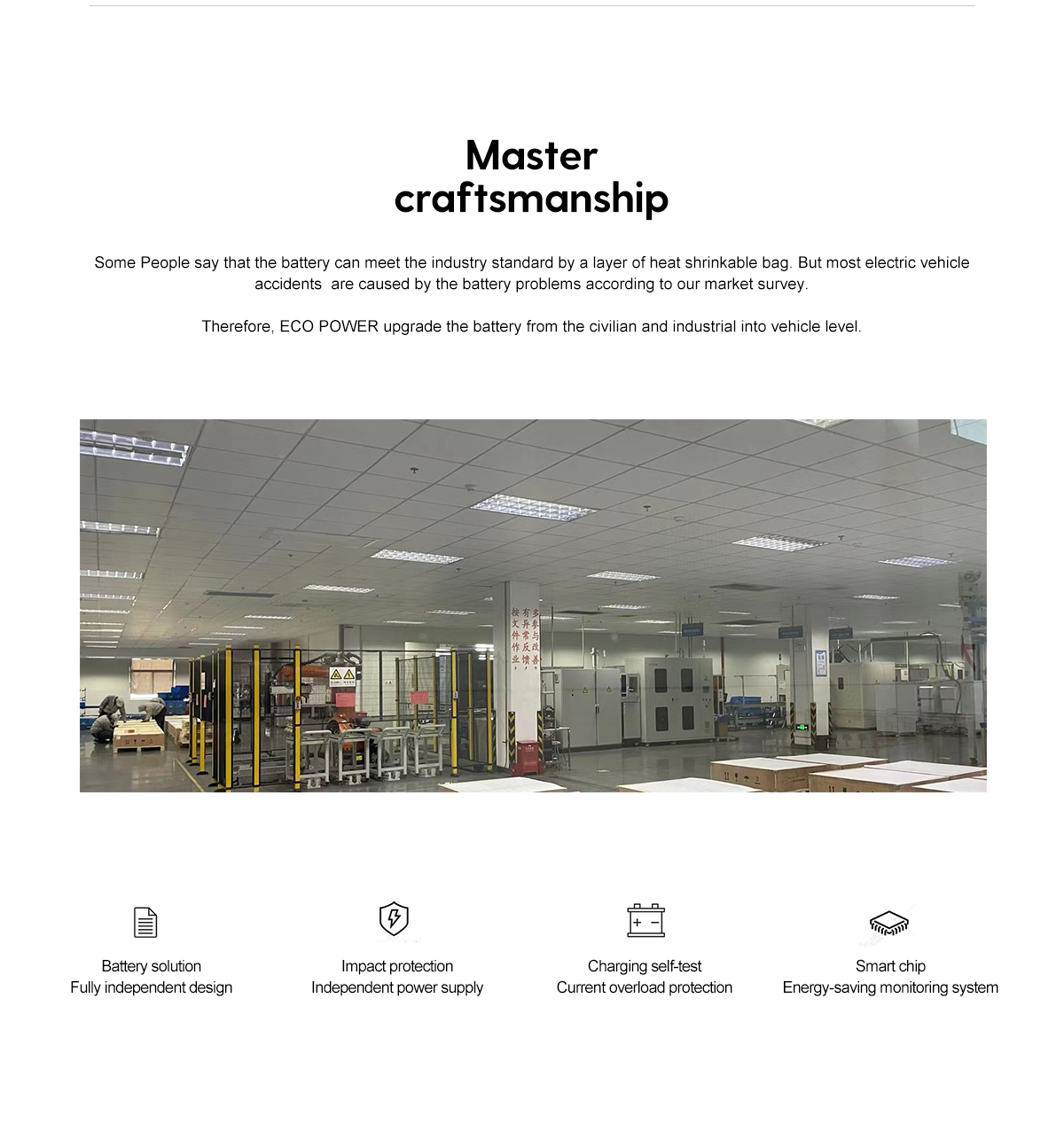

LFP1200_05.png "MS0210-32V206A-(206Ah1P10S)LFP1200_05.png")

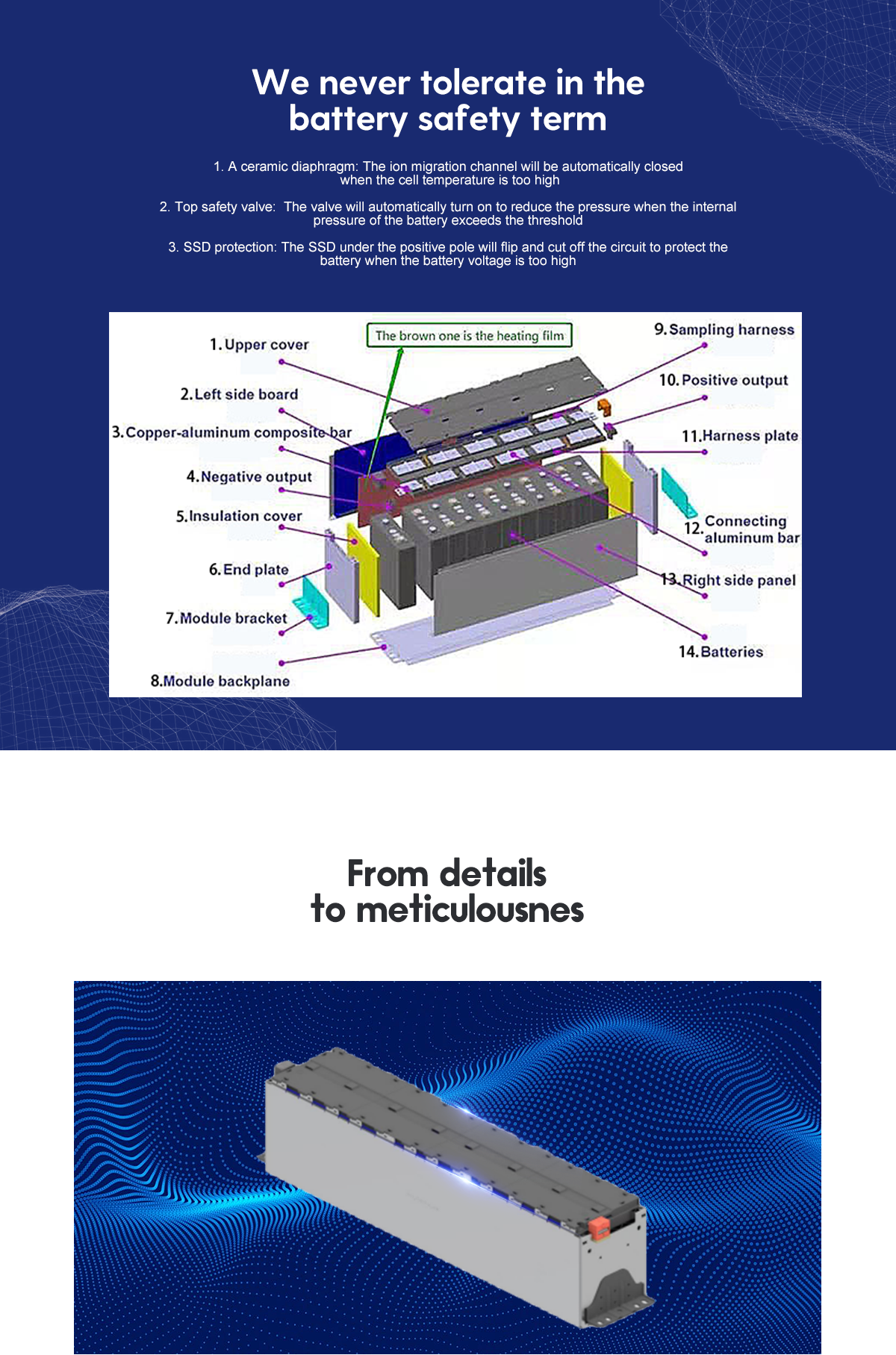

LFP1200_06.png "MS0210-32V206A-(206Ah1P10S)LFP1200_06.png")
LFP1200_07.png "MS0210-32V206A-(206Ah1P10S)LFP1200_07.png")
LFP1200_08.png "MS0210-32V206A-(206Ah1P10S)LFP1200_08.png")
LFP1200_09.png "MS0210-32V206A-(206Ah1P10S)LFP1200_09.png")
