The C5-NCM243W integrates seamlessly with existing renewable energy sources such as solar panels and wind turbines. Maximise your sustainable energy production and store surplus energy for use when production is low.

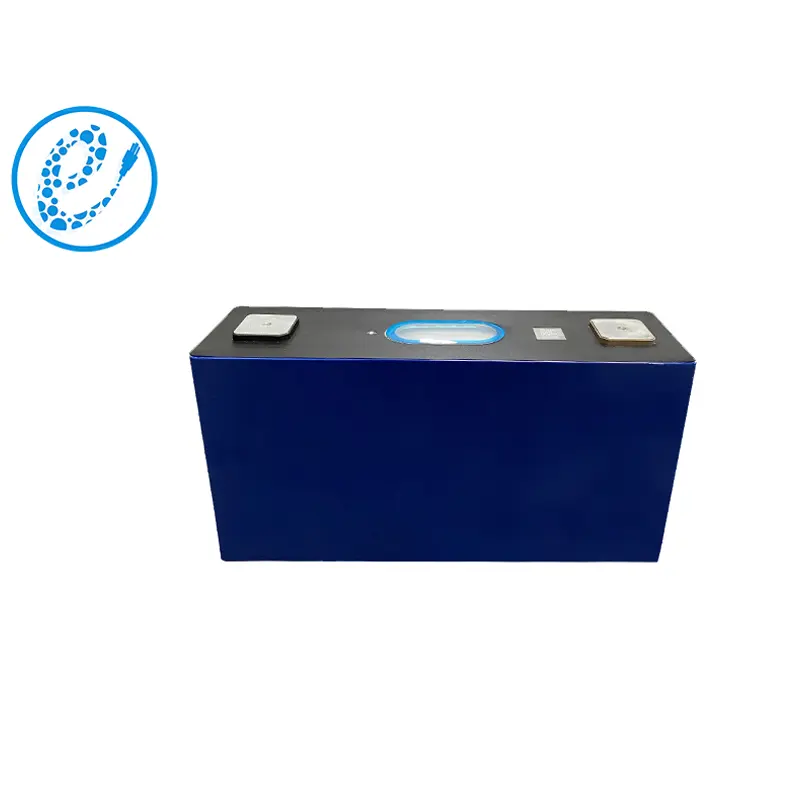

By choosing the EcoPower C5-NCM243W NCM Lithium Ion Battery, you're helping to make the world cleaner and more energy sustainable. Together we can create a brighter, more energy efficient future.
| Item | Specification | |

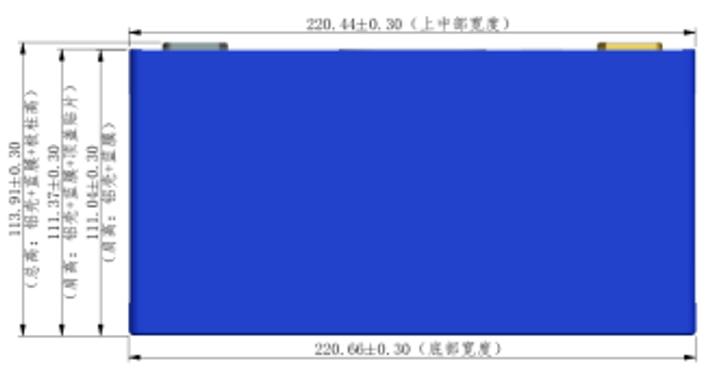

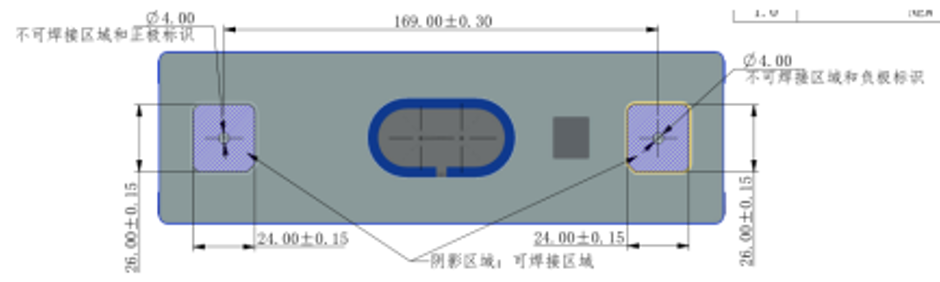

| Dimension (Welding terminal) | 66.72mm * 220.66mm * 113.91mm | |
| Weight | 3.85±0.05kg | |
| Min. capacity | 243Ah@25±2℃(1C) | |
| Min. energy | 889Wh@25±2℃ (1C) | |
| SOC window | 10 ~ 90% | |
| Terminal | Welding | |
| Impedance（1kHz） | ≤0.6mΩ | |
| Voltage | Max. | 4.35V |
| Nominal | 3.66V | |
| Min. | 2.8(T＞-5℃) 2.5(-20℃< T ≤-5℃) 2.1(T ≤-20℃ ) | |
| Current | Maximum continuous charge | 292A |
| Maximum continuous discharge | 486A | |
| Energy density | Gravimetric | 240Wh/kg(1/3C) |
| Volumetric | 570Wh/L (1/3C) | |
| Temp. Condition | Operation (Charge) | -20~55℃ |
| Operation (Discharge) | -30~55℃ | |
| Storage | -30~55℃ | |
| Self-Discharge Rate | Count after fresh cell need Standard Charge to 50%SOC and storage at 25±2°C for 3 months | 1500cycles |
| Service Life | 25℃ average temperature | GB/T 31485-2015 |
