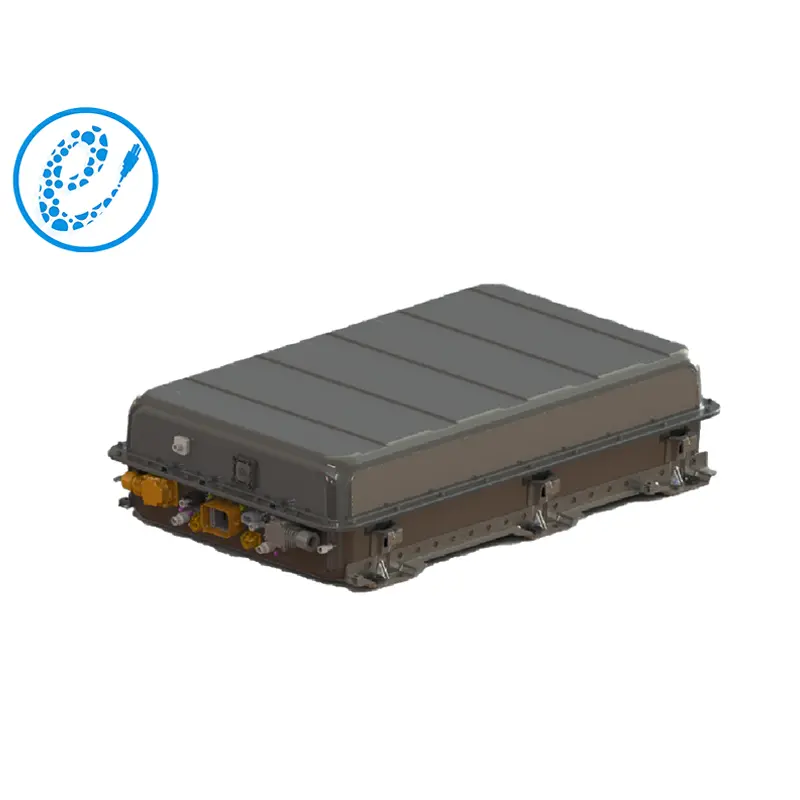

The PS050605-144V230A (230AH1P45S) consists of 45 cells connected in series with a rated voltage of 144 V. Its versatility and adaptability make it the preferred choice for a wide range of commercial and industrial renewable energy needs.
Compared to modules, the assembly of Li-ion battery packs can improve volume utilisation by eliminating or reducing the need for end plates, side plates and fasteners such as screws used to secure the modules.
| No. | Items | EP-LFP 230Ah STADARD PACK | Note | |
| PS050605-144V230A | ||||
| 230AH1P45S | ||||
| 1 | Nominal voltage(V) | 144 | ||
| 2 | Operating voltage(V) | min | 112.5 | |
| 3 | max | 164.25 | ||
| 4 | Cell Configuration | 1P45S | ||
| 5 | Nominal energy（KWh ） | 33.12 | 25±2℃ | |
| 6 | Nominal capacity(Ah) | 230 | 25±2℃ | |
| 7 | Maximum continuous charge current（A） | 230 | 25±2℃ | |
| 8 | Maximum continuous discharge current（A） | 230 | 25±2℃ | |
| 9 | Shipping consistency（mv） | 30 | Voltage difference between cell ＜30mV | |
| 10 | SOC operating range（%） | 20~100 | ||
| 11 | Insulation requirements(MΩ) | ≥20 | 500V DC，High voltage output to battery shell, at the normal temperature and humidity | |
| 12 | cooling method | Liquid cooling | ||
| 13 | Shipping capacity | ≈30% | SOC is consistency in the same batch | |
| 14 | Dimension L (mm) | 1020 | ||
| Dimension B (mm) | 635 | |||
| Dimension H (mm) | 249 | |||
The battery box is currently assembled with a full range of VDA series batteries, which can be adapted to most commercial vehicle models on the market (bus, heavy truck, mining dump, construction machinery, etc.)
