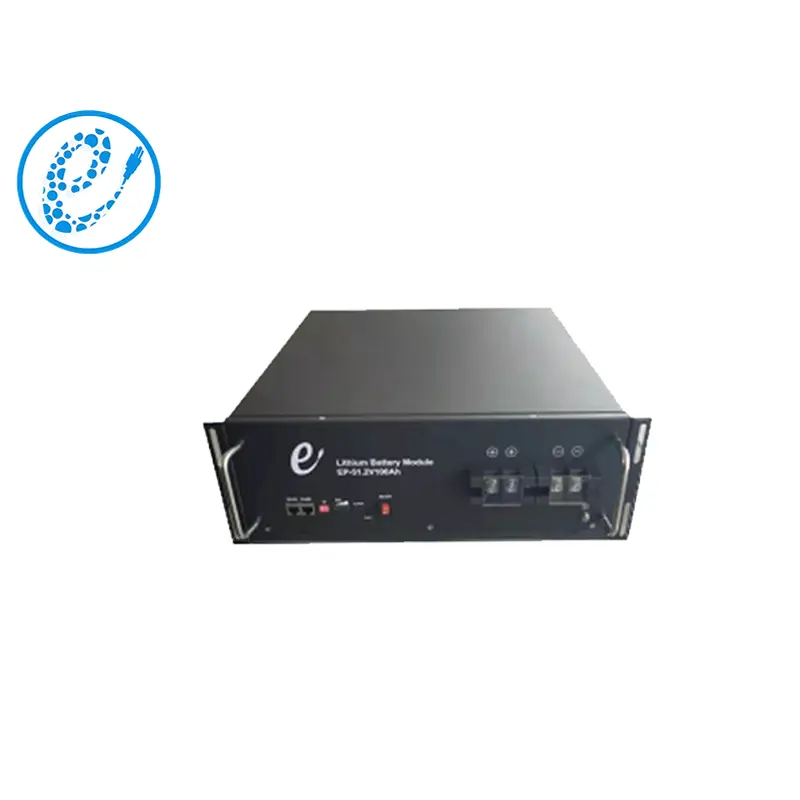

PS111210 51.2V100A Pack is a high-performance battery solution designed specifically for 51.2V 100Ah lithium-ion battery applications. If you're in need of a reliable battery bank for your 51.2V system, look no further. Our PS111210 model offers an impressive capacity of 100Ah, providing ample power storage for your energy needs.
At EcoPower Battery, we prioritize quality and performance, and our PS111210 51.2V100A 1P16S Pack delivers on both fronts. Trust us to provide you with a robust and dependable battery bank solution for your battery system and telecom station.
| No. | Items | EP-LFP 100Ah STADARD PACK | Note | |
| PS111210-51.2V100A | ||||
| 100AH1P16S | ||||
| 1 | Nominal voltage(V) | 51.2 | ||
| 2 | Operating voltage(V) | min | 40 | |
| 3 | max | 58.4 | ||
| 4 | Cell Configuration | 1P16S | ||
| 5 | Nominal energy（KWh ） | 5.12 | 25±2℃ | |
| 6 | Weight（Kg） | ≈150kg | ||
| 7 | Nominal capacity(Ah) | 100 | 25±2℃ | |
| 8 | Maximum continuous charge current（A） | 100 | ||
| 9 | Maximum continuous discharge current（A） | 100 | ||
| 10 | Maximum pulse discharge current（≤30s）（A） | 200 | ||
| 11 | Shipping consistency（mv） | 30 | Voltage difference between cell ＜30mV | |
| 12 | Humidity range | ≤65% | ||
| 13 | Storage temperature(℃) | 0～35℃ | ||
| 14 | SOC operating range（%） | 20~100 | ||
| 15 | Insulation requirements(MΩ) | ≥20 | 500V DC，High voltage output to battery shell, at the normal temperature and humidity | |
| 16 | cooling method | Natural cooling | ||
| 17 | Shipping capacity | ≈30% | SOC is consistency in the same batch | |

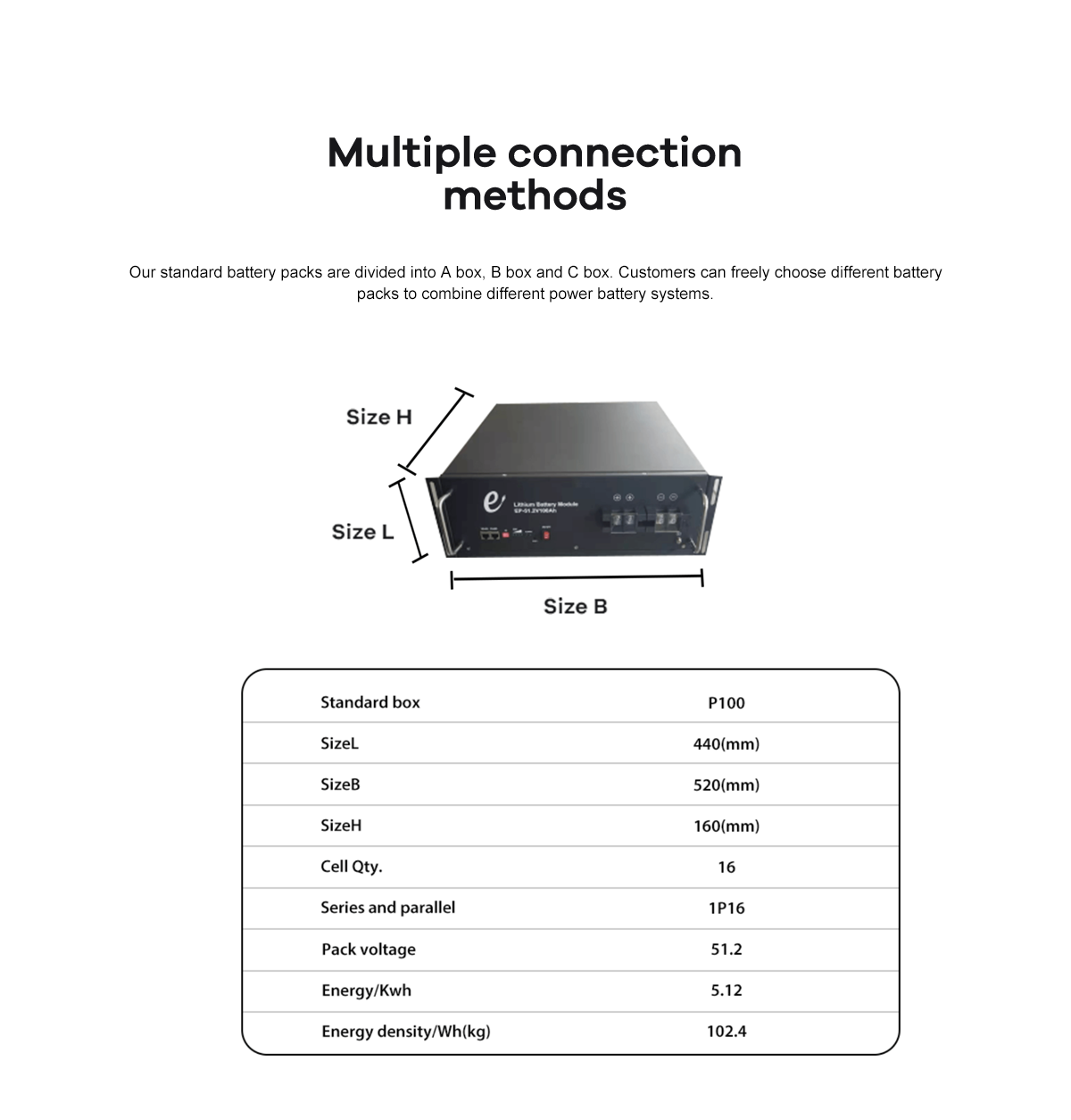

| 18 | Dimension L (mm) | 1050 | ||
| Dimension B (mm) | 630 | |||
| Dimension H (mm) | 240 | |||
