MS1320-25.55V106A-(53Ah2P7S) The battery has a rated voltage of 25.55V and a rated capacity of 106Ah in a 2P7S design. The internal BMS power management system optimises energy distribution and improves efficiency and performance. Minimises energy loss and extends the overall life of the battery. Whether for industrial machinery, electric vehicles or renewable energy systems, this battery ensures a great experience.

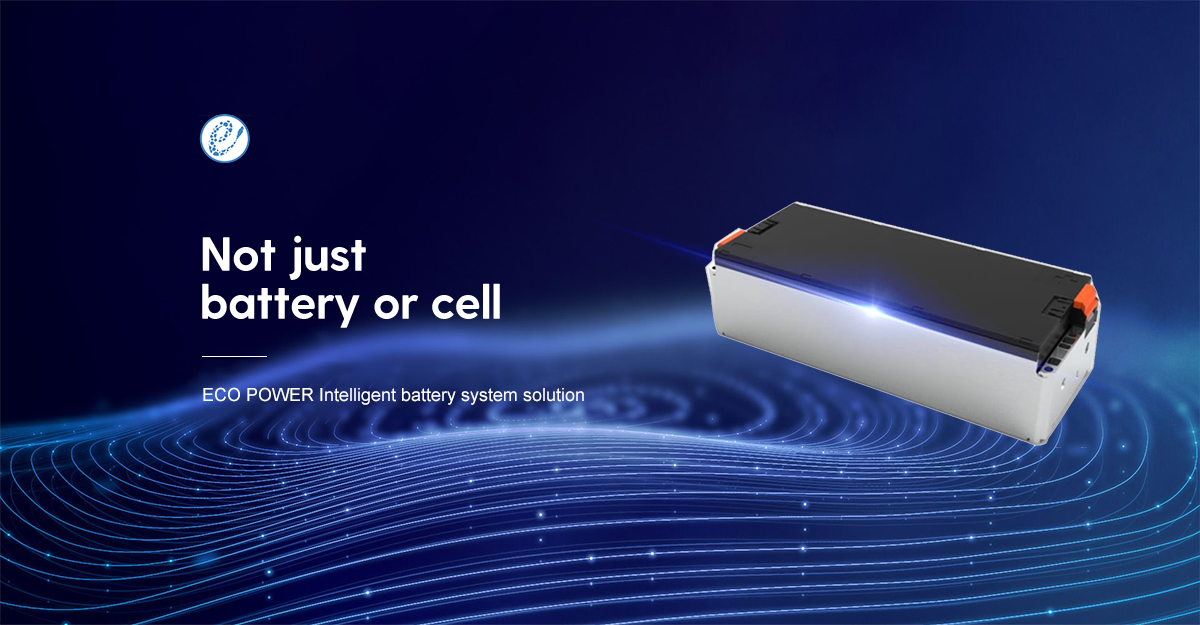

.png "ms1320-25_(1).png")
| No. | Items | EP-NCM53Ah STANDARD MODULE | Note | |
| MS1320-25.55V106A | ||||
| 53Ah2P7S | ||||
| 1 | Nominal voltage(V) | 25.55 | ||
| 2 | Operating voltage(V) | min | 19.6 | Cell 2.8V~4.3V |
| max | 30.1 | |||
| 3 | Humidity range | 20%-95% | ||
| 4 | Nominal capacity(Ah) | 100 | 25±2℃,1C | |
| 5 | Nominal energy（KWh ） | 2.708 | 25±2℃,1C | |
| 6 | Impedance（mΩ） | ≤2.975 | ||
| 7 | Cell Configuration | 2P7S | Serial and parallel schemes | |
| 8 | End of life residual capacity (Ah) | 88 | ||
| 9 | Module weight（kg） | 14.05±0.5 | ||
| 10 | Maximum continuous change current（A） | 106 | ||
| 11 | Maximum short pulse charge current（≤10s） | 212 | 25~50℃，＜80%SOC | |
| 12 | Maximum continuous discharge current（A） | 106 | ||
| 13 | Maximum short pulse discharge current（≤10s）（A） | 318 | 25~50℃，＞30%SOC | |
| 14 | SOC operating range（%） | 5~100 | ||
| 15 | Insulation requirements(MΩ) | ≥200 | 1000V DC，High voltage output to battery module shell, at the normal temperature and humidity | |
| 16 | Module cooling method | Natural cooling | PTC heater or water cold plate | |
| 17 | Module heating method | No | ||
| 18 | Shipping capacity (SOC) | ≈30% | SOC is consistency in the same batch | |
| 19 | Shipping consistency（mv） | ＜30 | Voltage difference between cell of module＜30mV | |
| 20 | Dimension L （mm） | 412.42 | ||
| Dimension B （mm） | 151.5 | |||
| Dimension H （mm） | 108.5 | |||
.png "ms1320-25_(3).png")
.png "ms1320-25_(4).png")
.png "ms1320-25_(5).png")
.png "ms1320-25_(6).png")
.png "ms1320-25_(7).png")
.png "ms1320-25_(8).png")
.png "ms1320-25_(9).png")
