SS020509-1248V1680A (280AH6P390S) This electrical energy storage systems in 6P390S configuration consists of six parallel (6P) and 390 series (390S) battery packs. This configuration ensures a harmonious balance of power, safety and performance, guaranteeing a reliable energy supply.

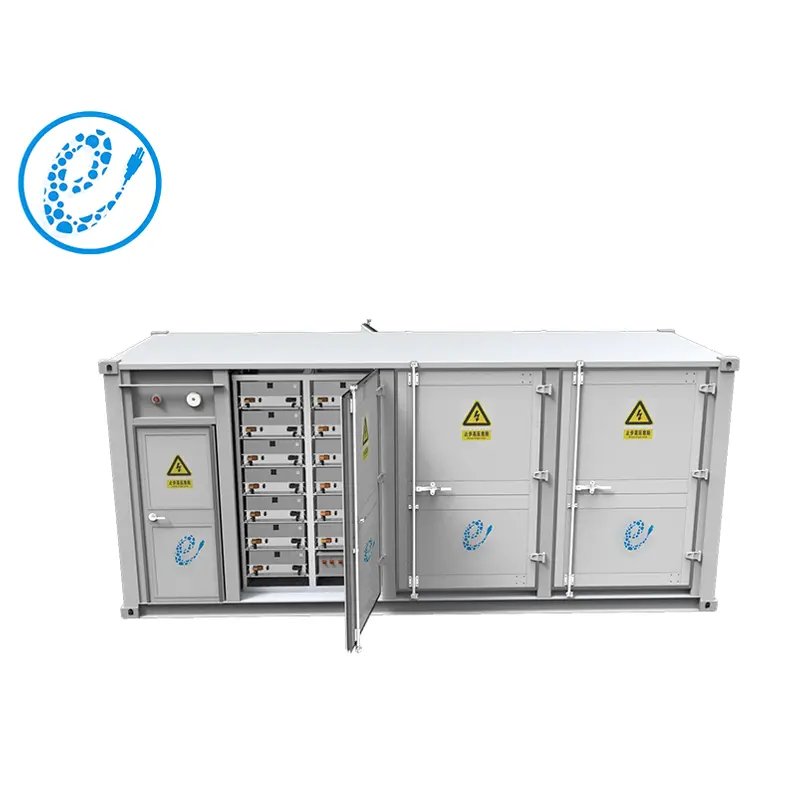

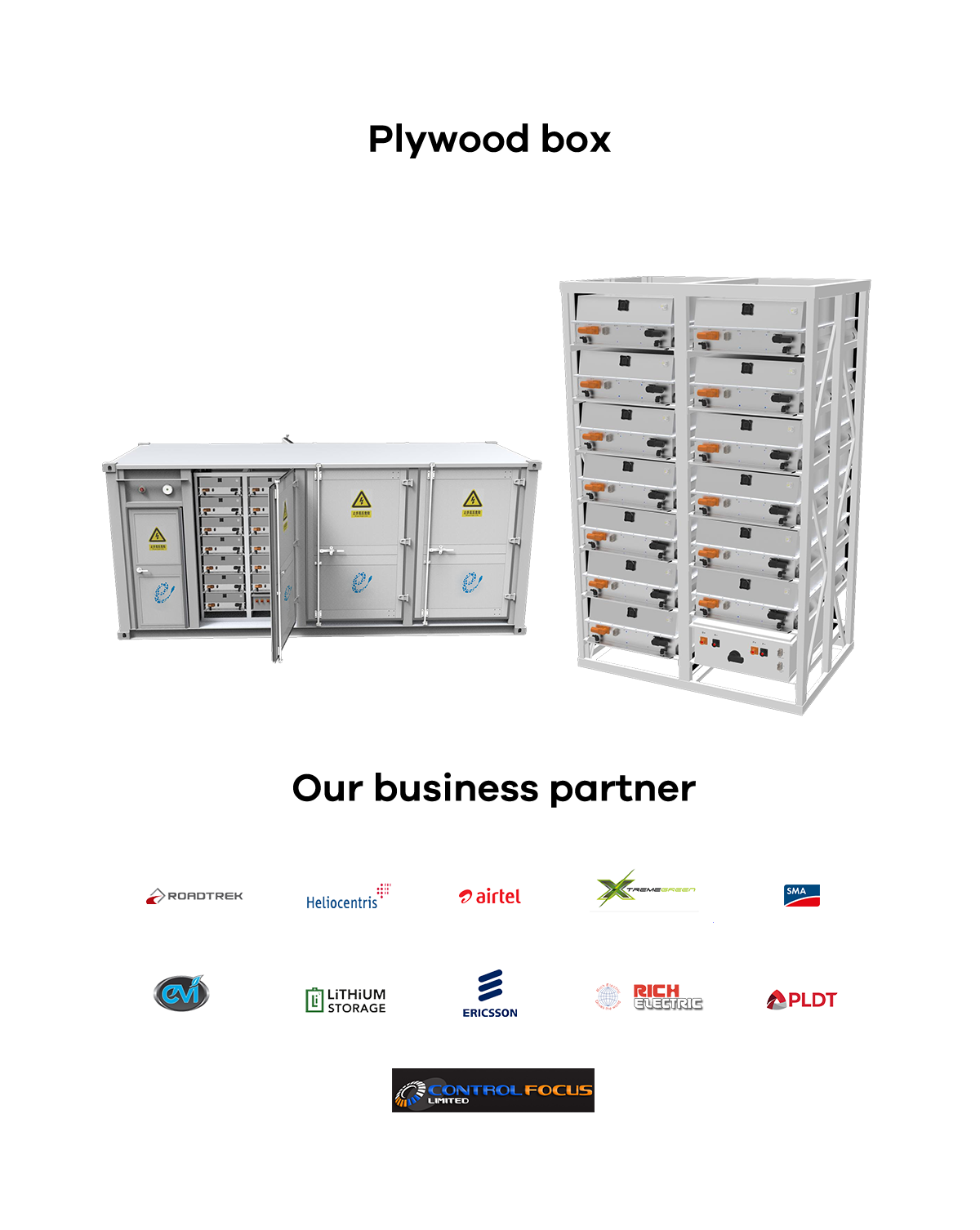

Containerized battery storage has gained significant attention in recent years due to its ability to offer scalable and versatile energy storage solutions. Our SS020509-1248V1680A（280AH6P390S） container energy storage system combines advanced technology and high-performance batteries to deliver a robust and efficient energy storage solution within a convenient containerized form factor.
| Item | Parameters | |
| SS020509-1248V1680A（280AH6P390S）Battery Pack | Nominal Voltage | 1248V |
| Rated Capacity（@ 20±5℃ 0.3C） | 1680Ah | |
| Nominal Energy（@ 20±5℃ 0.3C/0.3C100%DOD） | ≈2.1MWh | |
| Rated charge | 140A*6P | |
| Maximum Continuous Charging Curren | 280A*6P | |
| Rated discharge | 140A*6P | |
| Maximum Continuous Discharging Current | 280A*6P | |
| Battery Configuration | 390 series of 3.2V280Ah cell * 6P | |
| Battery Operating Voltage Range | 975V～1423.5V | |
| Operating Temperature Range(Charge) | 0～55℃ | |
| Operating Temperature Range(Discharge) | -20～55℃ | |
| Recommended Operating Range of SOC | 20%～100% | |
| SOC Requirement for long period idle and storage | ≈30% SOC | |
| Dimension | ≈6058mm*2438mm*2591mm(W*D*H) | |
| Weight | ≈21t | |
| Communication methods | RS485 | |
