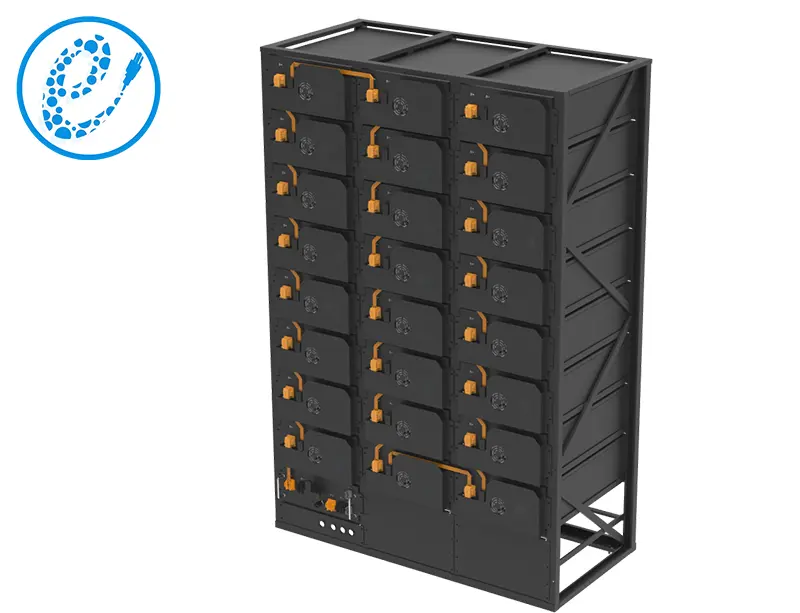

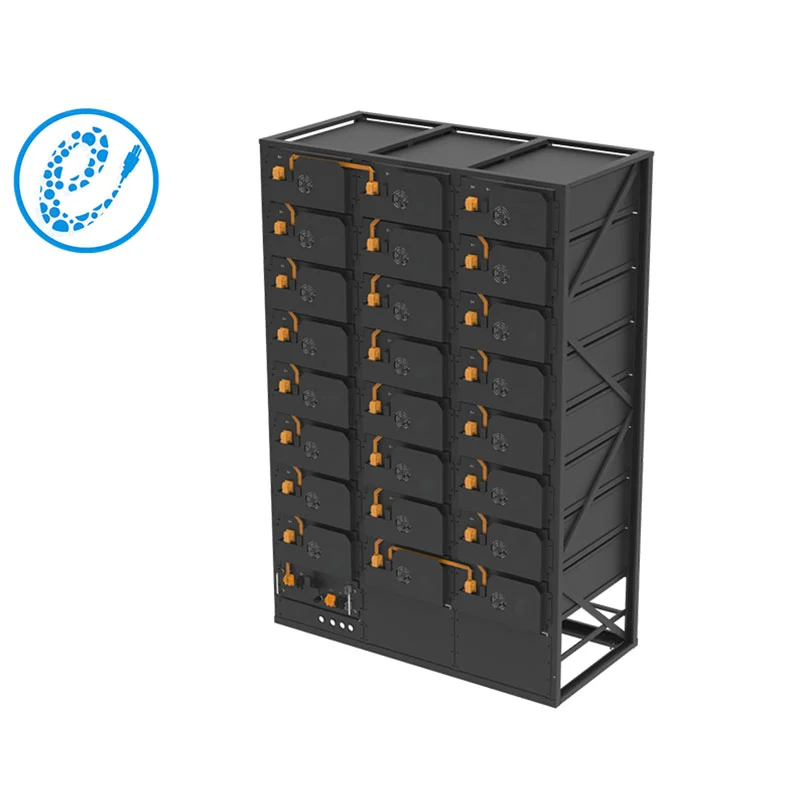

SS020509-1228.8V280A(280AH1P384S)

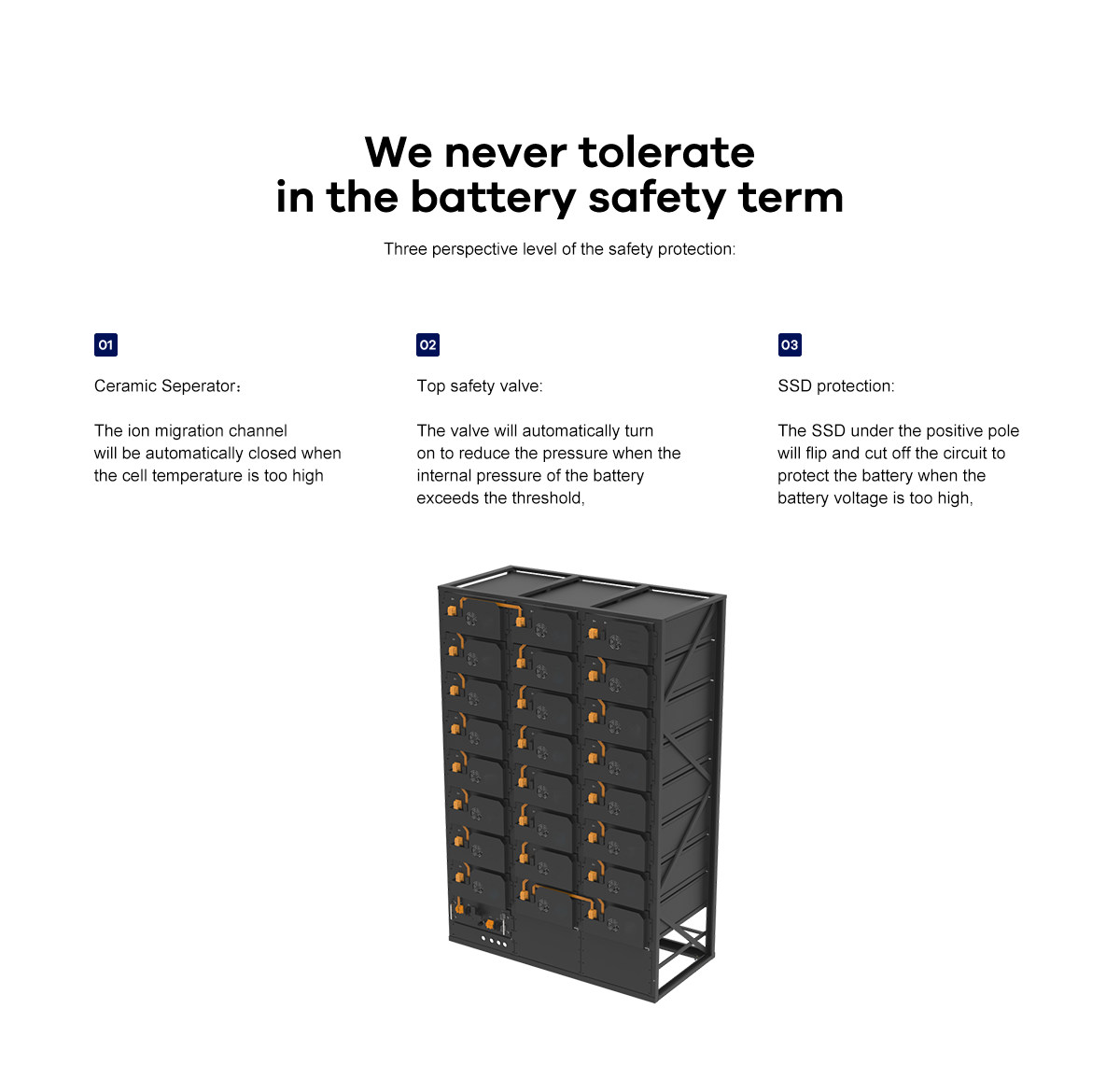

SS020509-1228.8V280A (280AH1P384S) Battery Energy Storage System has a rated energy of 344.064KWh, a rated voltage of 1228.8V, and a rated capacity of 280Ah.This battery is mainly used for commercial and industrial energy storage, and is designed to be portable and easy to integrate.

Whether it's for renewable energy integration, grid stabilisation, emergency backup or off-grid applications, this energy storage system will meet your needs.





ItemParameters
SS020509-1228.8V280A(280AH1P384S)Battery PackNominal Voltage1228.8V
Rated   Capacity@ 20±5 0.3C280Ah
Nominal Energy@   20±5 0.3C/0.3C100%DOD≈344.064KWh
Rated   charge140A
Maximal   Continuous Charging Current280A
Rated   discharge140A
Maximal   Continuous Discharging Current280A
Battery   Configuration16 series of 3.2V280Ah cell
Battery   Operating Voltage Range960V1401.6V
Operating   Temperature Range(Charge)055
Operating   Temperature Range(Discharge)-2055
Recommended   Operating Range of SOC20%100%
SOC   Requirement for long period idle and storage≈30% SOC
Dimension1550mm*775mm*2350mm
    (W*D*H)
Weight≈2265kg
Communication   methodsRS485
RemarksThe cabinet can   contain up to four PACKs
