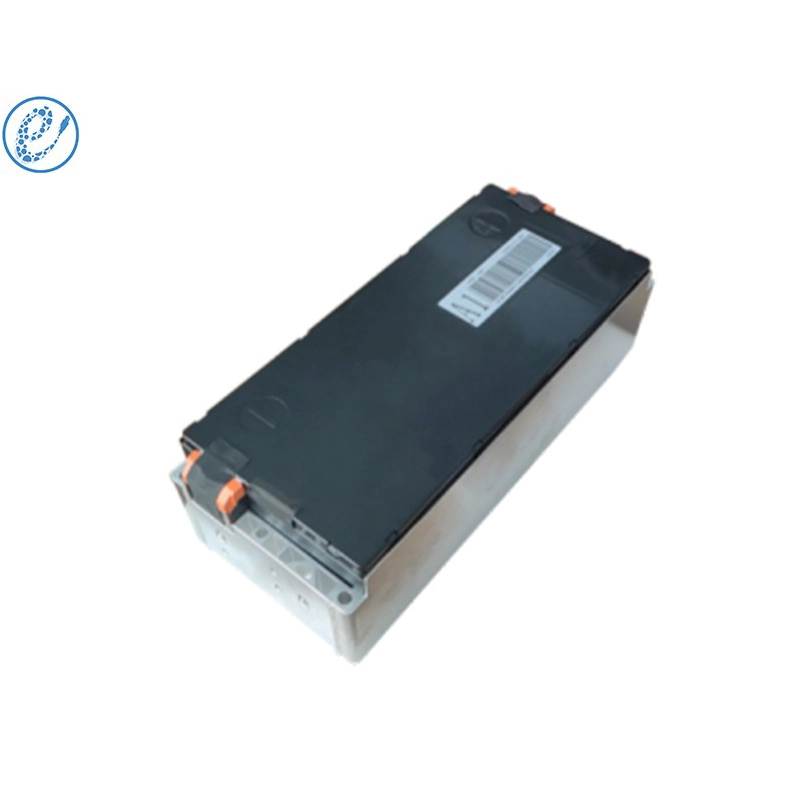

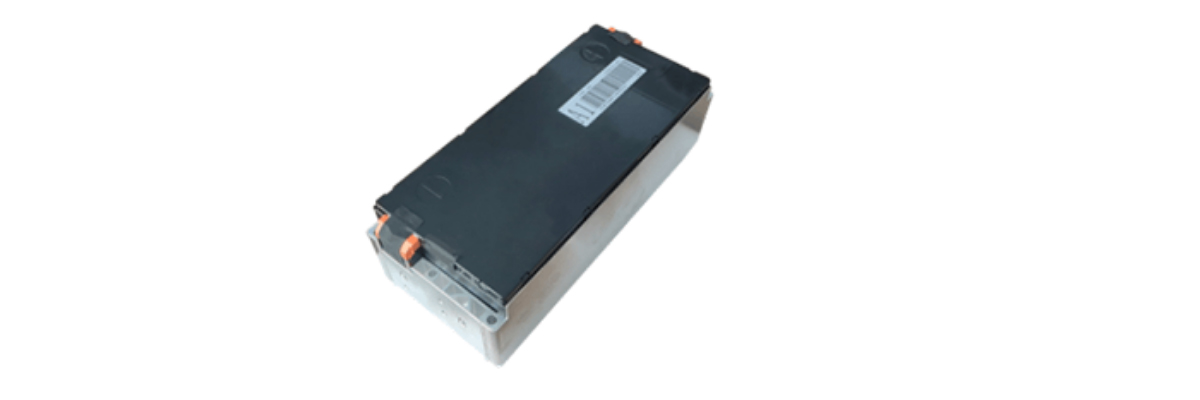

This MS0903-14.8V153A (153AH1P4S) li ion charger module has a capacity of 153Ah and a rated voltage of 14.8 V. It is powered by rechargeable NCM lithium-ion batteries with a voltage range of 11.2-17.2 V. The module is lightweight, compact, and has a temperature range of -20°C to +55°C, making it suitable for a wide range of environments.
| No. | Items | MS0903-14.8V153A 153Ah1P4S | Note | ||
| 1 | Nominal voltage(V) | 14.64V (1C) | 14.8V (1/3C) | ||
| 2 | Operating voltage(V) | min | 11.2 | 55℃≥T＞0℃ | |
| 3 | max | 17.2 | 55℃≥T＞0℃ | ||
| 4 | Nominal capacity(Ah) | 150 (1C) | 153 (1/3C) | 25℃ | |
| 5 | Nominal energy (KWh ) | 2.196 (1C) | 2.2644 (1/3C) | 25℃ | |
| 7 | Group mode | 1P4S | |||
| 8 | Module weight (Kg) | 11.6 | |||
| 9 | Maximum continuous charge current (A) | 153 | |||
| 10 | Maximum continuous discharge current (A) | 306 | |||
| 11 | SOC operating range (%) | 5~95 | |||
| 12 | Insulation requirements(MΩ) | ≥20 | |||
| 13 | Module cooling method | Natural cooling | |||
| 14 | Module heating film | No | |||
| 15 | Shipping capacity (SOC) | ≈30% | SOC is consistency in the same batch | ||
| 16 | Dimension L (mm) | 355 | |||
| Dimension B (mm) | 151.6 | ||||
| Dimension H (mm) | 108.4 | ||||
