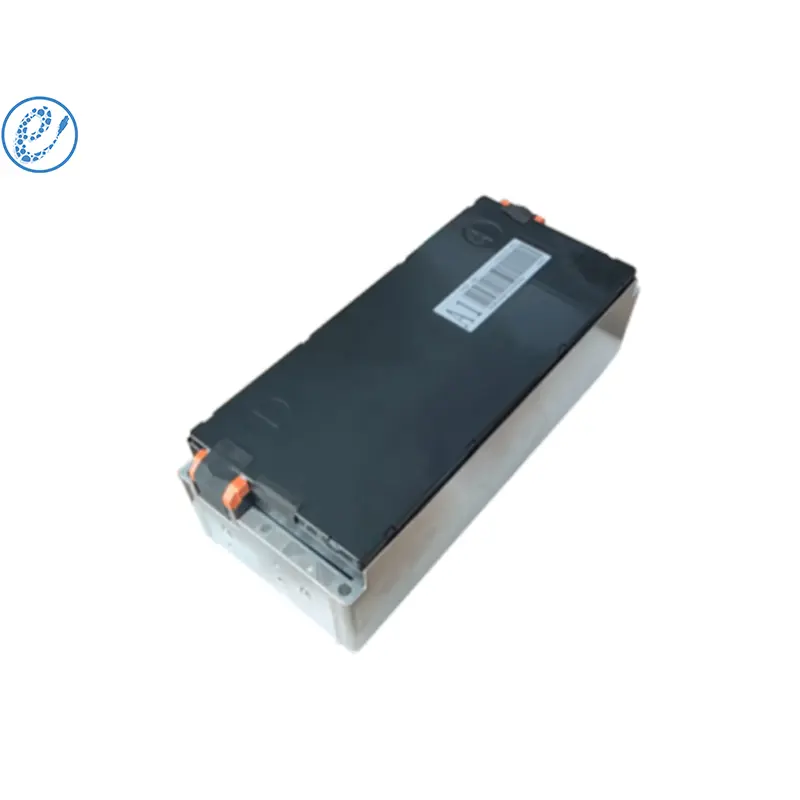

The MS0505-14.6V155A (155AH1P4S) module has a rated capacity of 155Ah, and a rated voltage of 14.6V. It is meticulously designed and precision manufactured internally for unrivalled performance. Its high energy density and powerful capacity make it ideal for demanding applications, providing a stable and reliable power supply.
| No. | Items | EP-NCM155Ah STANDARD MODULE | Note | |
| MS0505-14.6V155A | ||||
| 155Ah1P4S | ||||
| 1 | Nominal voltage(V) | 14.6 | ||
| 2 | Operating voltage(V) | min | 11.2 | |
| 3 | max | 17.2 | ||
| 4 | Nominal capacity(Ah) | 155 | 25±2℃ , 1/3C | |
| 5 | Nominal energy ( KWh ) | 2.263 | 25±2℃ , 1/3C | |
| 6 | Cell Configuration | 1P4S | ||
| 7 | End of life residual capacity (Ah) | 124 | Residual capacity≥80% initial capacity ，@25℃ | |
| 8 | Module weight ( Kg) | 11.7±0.1 | ||
| 9 | Maximum continuous charge current ( A ) | 187.2 | ||
| 10 | Maximum short pulse charge current ( ≤ 10s ) | 310 | ||
| 11 | Maximum continuous discharge current ( A ) | 310 | ||
| 12 | Maximum short pulse discharge current ( ≤30s ) | 465 | ||
| 13 | SOC operating range ( % ) | 10~90 | ||
| 14 | Insulation requirements(MQ) | ≥20 | 1000V DC ，High voltage output to battery module | |
| 15 | Module cooling method | Natural cooling | ||
| 16 | Module heating film | No | ||
| 17 | Shipping capacity (SOC) | 30%~70% | SOC is consistency in the same batch | |
| 18 | Shipping consistency ( mv) | ＜30 | Voltage difference between cell of module＜30mV | |
| 19 | Coulomb efficiency | ≥95% | ||
| 20 | Module self-discharge | ≤3% | 25±2℃ ,50%SOC | |
| 21 | Dimension L (mm) | 355±1 | ||
| 22 | Dimension B (mm) | 152.5±1 | ||
| 23 | Dimension H (mm) | 109±1 | ||
