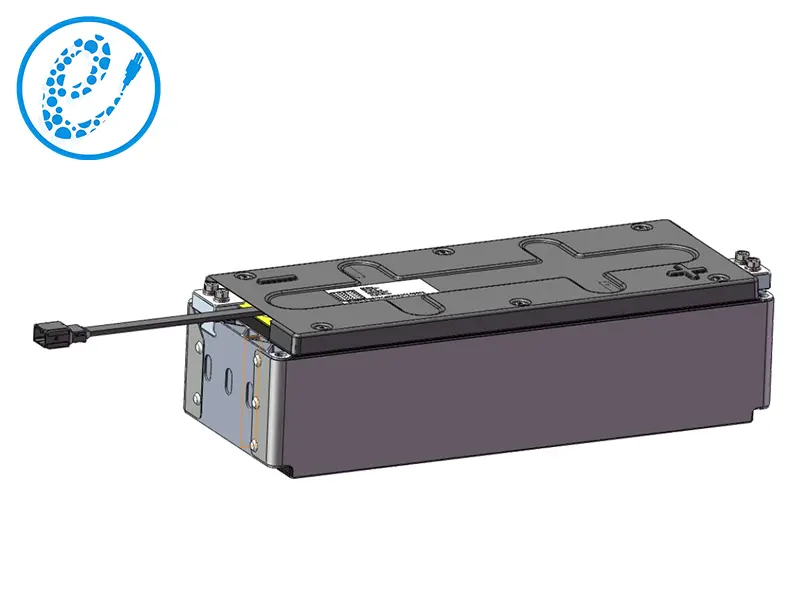

The MS1101-25.39V116Ah-(58Ah2P7S) has a standard capacity of 116Ah and a standard voltage of 25.39V. The 25.39V output voltage provides a power supply for a wide range of applications.
This battery pack module can meet a wide range of application requirements and is ideal for power tools, electric vehicles, and renewable energy systems.
| No. | Items | EP-NCM58Ah STANDARD MODULE | Note | |
| MS1101-25.39V116A | ||||
| 58AH2P7S | ||||
| 1 | Nominal voltage(V) | 25.69 | ||
| 2 | Operating voltage(V) | min | 19.25 | T＞0℃ |
| 3 | max | 30.45 | ||
| 4 | Nominal capacity(Ah) | 116 | 1/3C，100%DOD | |
| 5 | Nominal energy（KWh ） | 2.98 | 1/3C，100%DOD | |
| 6 | Cell Configuration | 2P7S | ||
| 7 | Maximum continuous charge current（A） | 92.8A(0.8C,15℃≤T＜20℃) 139.2A(20℃≤T＜45℃) | ||
| 8 | Maximum continuous discharge current（A） | 116 | ||
| 9 | SOC operating range（%） | 10~90 | ||
| 10 | Insulation requirements(MΩ) | ≥20 | ||
| 11 | Module cooling method | Natural cooling | ||
| 12 | Module heating method | No | Or heating film | |
| 13 | Shipping capacity (SOC) | ≈30% | SOC is consistency in the same batch | |

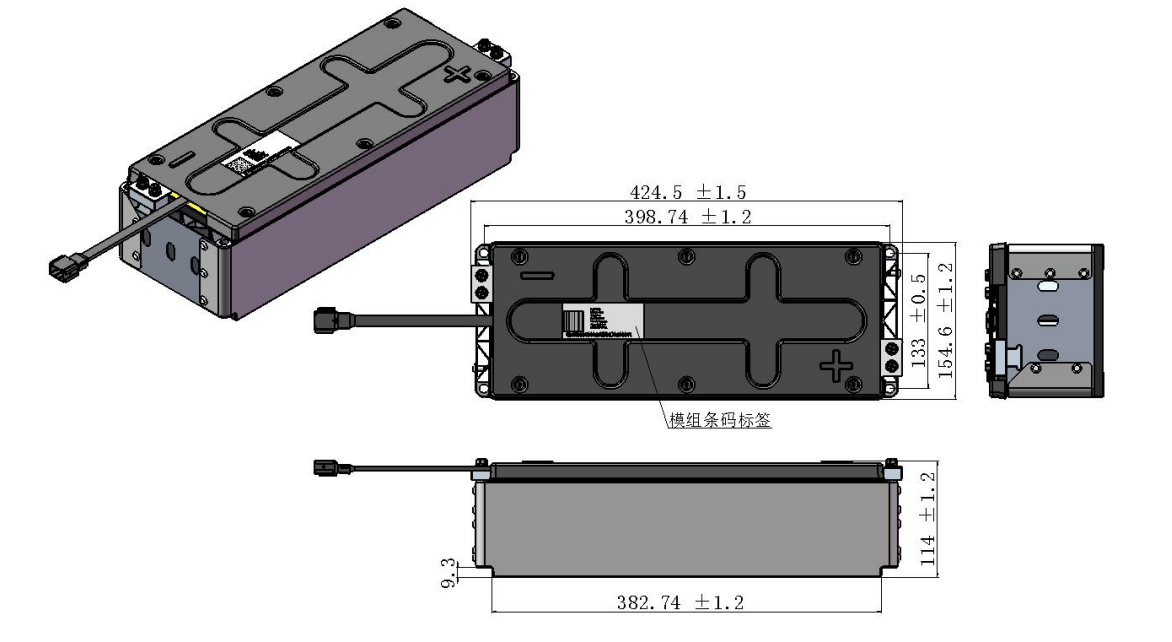

| 14 | Dimension L （mm） | 424.5 | ||
| Dimension B （mm） | 154.6 | |||
| Dimension H （mm） | 114 | |||
