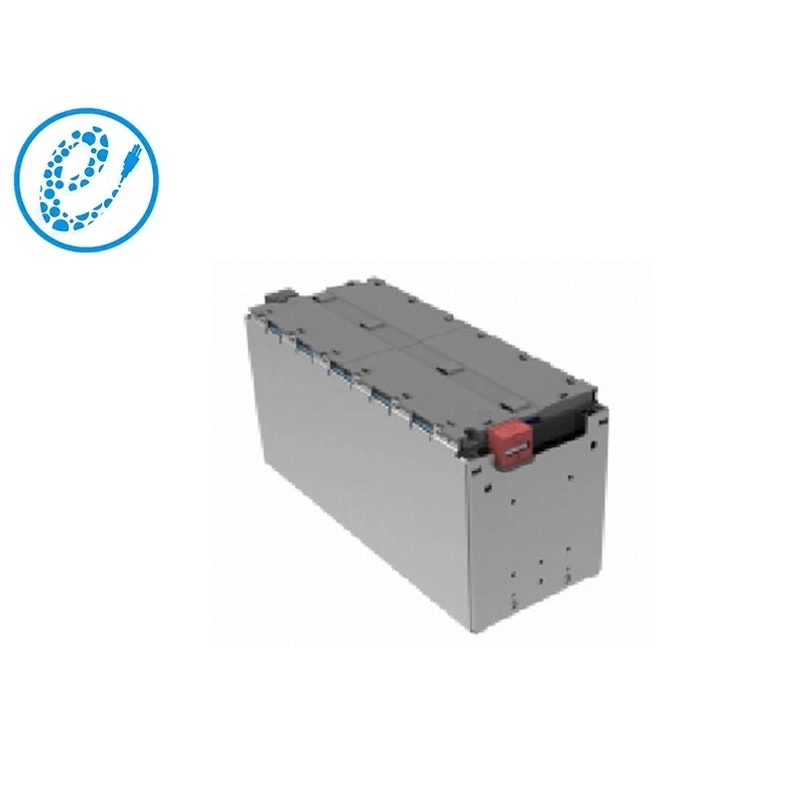

The MS0202 48.3V206A (206Ah 1P15S) module is a powerful, reliable and durable battery module. It has a capacity of 206Ah and a rated voltage of 48.3 V. The LFP206Ah 1P15S module is a good choice for power storage needs such as electric forklifts, electric trucks, and more.
| Items | EP-LFP206Ah STANDARD MODULE | Note | |
| MS0202-48.3V206A | |||
| 206Ah1P15S | |||
| Nominal voltage(V) | 48.3 | ||
| Operating voltage(v) | min | 37.5 | T＞0℃ |
| max | 54.75 | ||
| Nominal capacity (Ah) | 206 | 1/3C, 100%DOD | |
| Nominal energy (KWh) | 9.949 | 1/3C, 100%DOD | |
| Cell Configuration | 1P15S | ||
| End of life residual capacity (Ah) | 164.8 | ||
| Module weight (Kg) | 63.5 | ||
| Maximum continuous charge current (A) | 206 | ||
| Maximum continuous discharge current (A) | 206 | ||
| Maximum pulse discharge current (≤180s)(A) | 412 | ||
| SOC operating range (%) | 10~90 | ||
| Insulation requirements(MΩ) | ≥20 | ||
| Module cooling method | Natural cooling | ||
| Module heating film | No | Or heating film | |
| Shipping capacity (SOC) | ≈30% | SOC is consistency in the same batch | |
| Dimension L (mm) | 849 | ||
| Dimension B (mm) | 179 | ||
| Dimension H (mm) | 220 | ||
