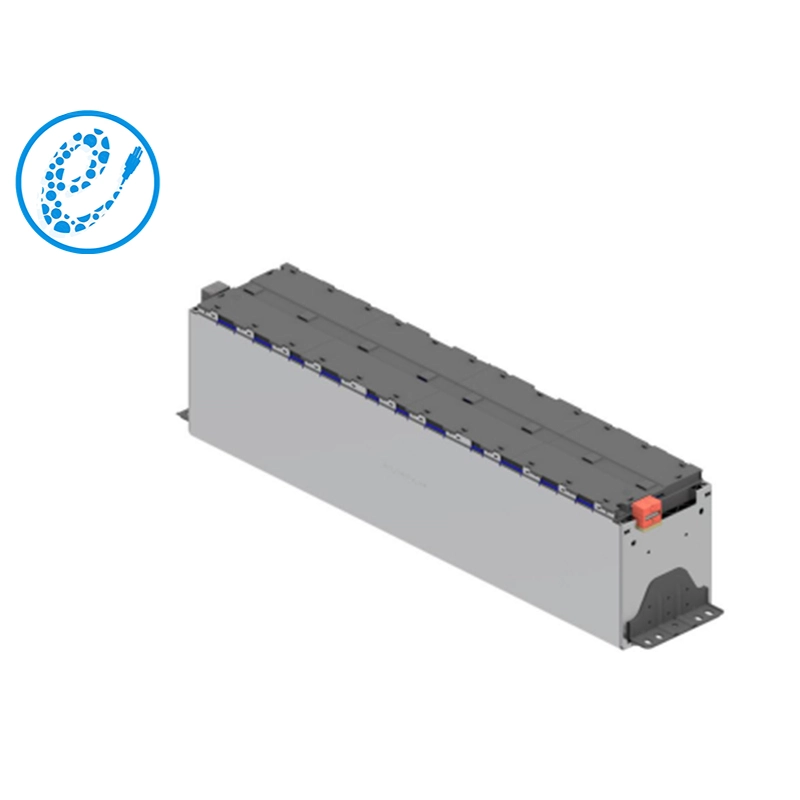

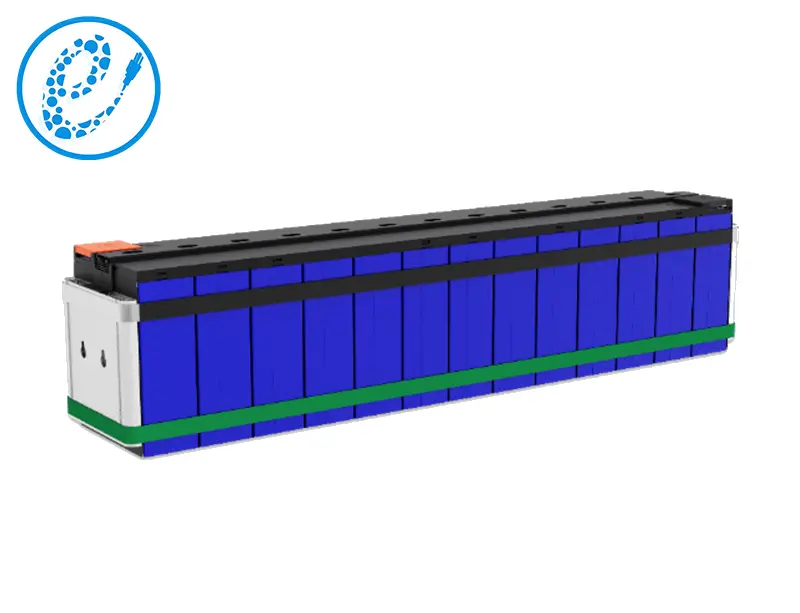

The MS0202-51.52V206A（206AH1P16S） is a lithium-ion rechargeable module with a rated voltage of 51.52V and a rated capacity of 206Ah.
LiFePO4 batteries are known for their exceptional safety, longevity, and eco-friendliness, making them a preferred choice for energy storage needs. Whether you are looking to power your electric vehicles, renewable energy systems, or other applications, this module delivers reliable and sustainable performance.
.png "1_(1).png")
| No. | Items | EP-LFP206Ah STANDARD MODULE | Note | |
| MS0202-51.52V206A | ||||
| 206AH1P16S | ||||
| 1 | Nominal voltage(V) | 51.52 | ||
| 2 | Operating voltage(V) | min | 40 | T＞0℃ |
| 3 | max | 58.4 | ||
| 4 | Nominal capacity(Ah) | 206 | 1/3C，100%DOD | |
| 5 | Nominal energy（KWh ） | 10.613 | 1/3C，100%DOD | |
| 6 | Cell Configuration | 1P16S | ||
| 7 | Maximum continuous charge current（A） | 206 | ||
| 8 | Maximum continuous discharge current（A） | 206 | ||
| 9 | Maximum pulse discharge current（≤180s）（A） | 412 | ||
| 10 | SOC operating range（%） | 10~90 | ||
| 11 | Insulation requirements(MΩ) | ≥20 | ||
| 12 | Module cooling method | Natural cooling | ||
| 13 | Module heating film | No | Or heating film | |
| 14 | Shipping capacity (SOC) | ≈30% | SOC is consistency in the same batch | |
| 15 | Dimension L （mm） | 900 | ||
| Dimension B （mm） | 179 | |||
| Dimension H （mm） | 220 | |||
.png "1_(3).png")
.png "1_(4).png")
.png "1_(5).png")
.png "1_(6).png")
.png "1_(7).png")
.png "1_(8).png")
.png "1_(9).png")
