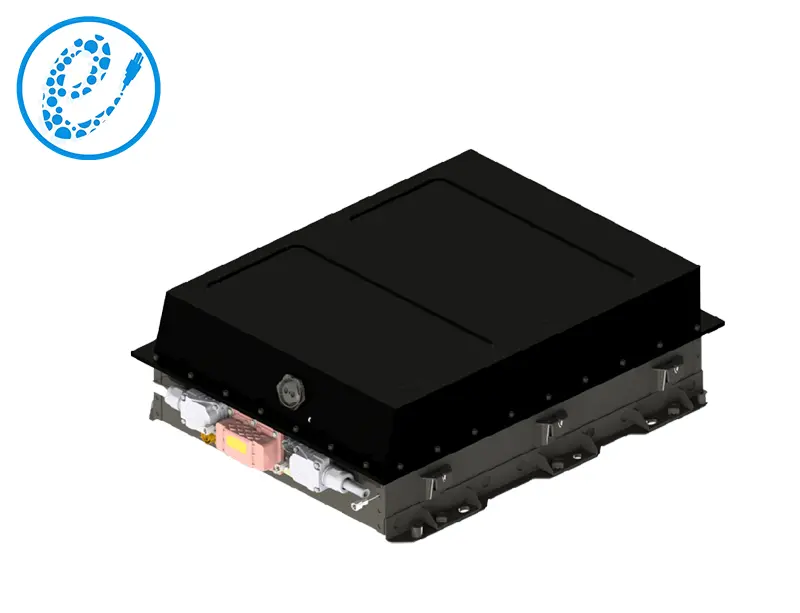

PS050605-70.4V205A (205AH1P22S) lithium battery pack is in 1P22S configuration consists of 1 parallel battery pack (1P) and 22 series battery packs (22S), which are specially developed for small special-purpose vehicles, such as sightseeing cars and field cars.
| No. | Items | EP-LFP 205Ah STADARD PACK | Note | |
| PS050605-70.4V205A | ||||
| 205AH1P22S | ||||
| 1 | Nominal voltage(V) | 70.4 | ||
| 2 | Operating voltage(V) | min | 55 | |
| 3 | max | 80.3 | ||
| 4 | Group mode | 1P22S | ||
| 5 | Nominal energy（KWh ） | 14.43 | 25±2℃ | |
| 6 | Nominal capacity(Ah) | 205 | 25±2℃ | |
| 7 | Maximum continuous charge current（A） | 205 | 25±2℃ | |
| 8 | Maximum continuous discharge current（A） | 205 | 25±2℃ | |
| 9 | Shipping consistency（mv） | 30 | Voltage difference between cell ＜30mV | |
| 10 | SOC operating range（%） | 20~100 | ||
| 11 | Insulation requirements(MΩ) | ≥20 | 500V DC，High voltage output to battery shell, at the normal temperature and humidity | |
| 12 | cooling method | Natural cooling | ||
| 13 | Shipping capacity | ≈30% | SOC is consistency in the same batch | |
| 14 | Dimension L (mm) | 806 | ||
| Dimension B (mm) | 635 | |||
| Dimension H (mm) | 240 | |||
