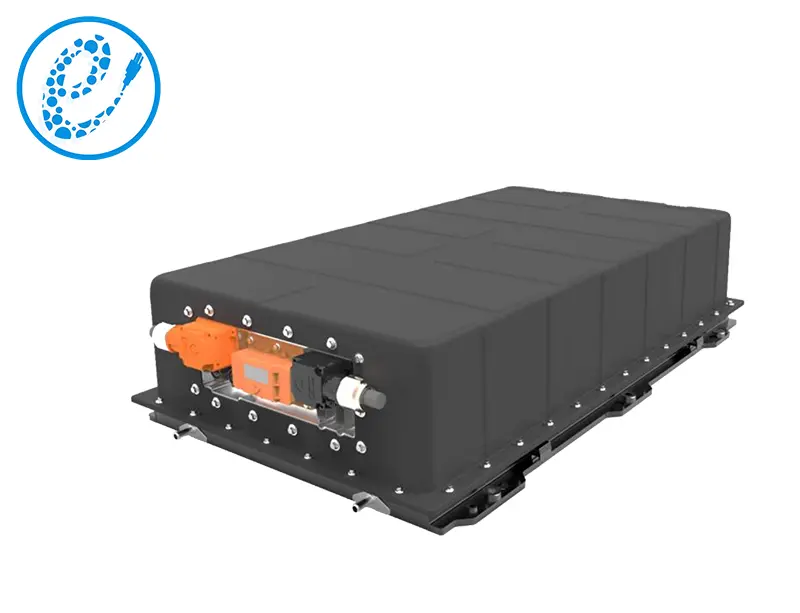

PC132902-115.92V302A(302AH1P36S) features a 1P36S configuration with a rated voltage of 115.92V and a rated energy of 32.256kwh, which provides a stable and powerful energy supply under the electric bus power system.
Equipped with advanced safety features, such as protection against short circuits, overcharging, and overheating, this lithium battery pack with electric van power system ensures the utmost security for your valuable equipment, enabling worry-free operation.
.png "pc132902-115_(1).png")
| No. | Items | EP-LFP 302Ah STADARD PACK | Note | |
| PC132902-115.92V302A | ||||
| 302AH1P36S | ||||
| 1 | Nominal voltage(V) | 115.92 | ||
| 2 | Operating voltage(V) | min | 93.6 | T＞0℃ |
| 3 | max | 126 | ||
| 4 | Cell Configuration | 1P36S | ||
| 5 | Nominal energy（KWh ） | 35.008 | 25±2℃ | |
| 6 | Nominal capacity(Ah) | 302 | 25±2℃ | |
| 7 | Maximum continuous charge current（A） | 250 | 25±2℃ | |
| 8 | Maximum continuous discharge current（A） | 250 | 25±2℃ | |
| 9 | SOC operating range（%） | 20~100 | ||
| 10 | Insulation requirements(MΩ) | ≥20 | Battery pack total positive and negative to ground | |
| 11 | cooling method | Liquid cooling | ||
| 12 | Weight（kg） | 226 | ||
| 13 | Shipping capacity | ≈30% | SOC is consistency in the same batch | |
| 14 | Dimension L (mm) | 1060 | ||
| Dimension B (mm) | 630 | |||
| Dimension H (mm) | 240 | |||
.png "pc132902-115_(3).png")
.png "pc132902-115_(4).png")
.png "pc132902-115_(5).png")
.png "pc132902-115_(6).png")
.png "pc132902-115_(7).png")
.png "pc132902-115_(9).png")
.png "pc132902-115_(10).png")
.png "pc132902-115_(11).png")
