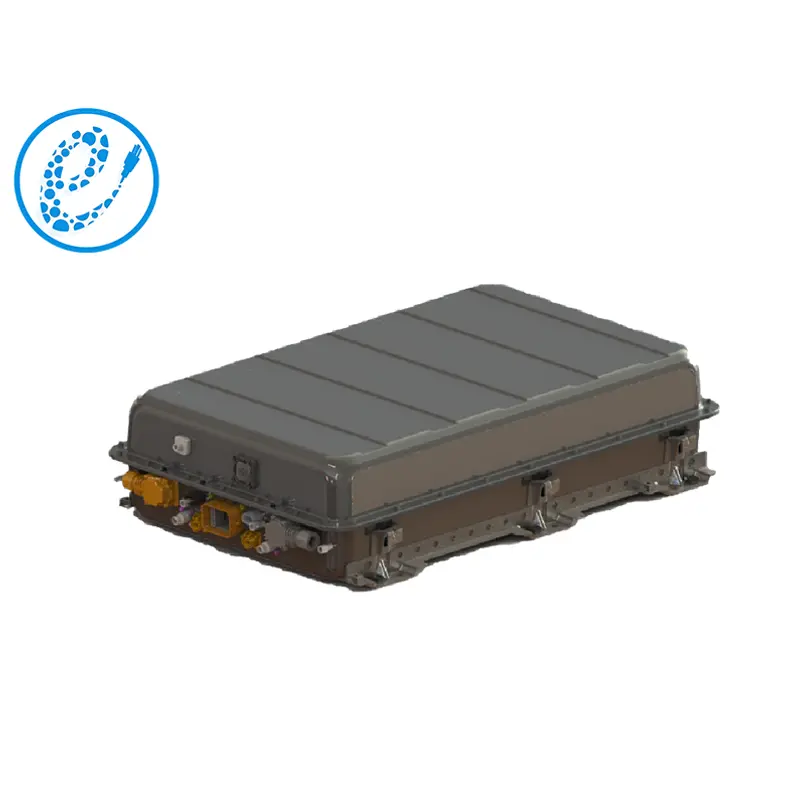

PS050605-106.26V302A (302AH1P33S) This battery pack has a 1P33S configuration with a rated energy of 32.09kwh and a rated voltage of 106.26 V. The cooling system of this battery pack is liquid-cooled, which is more conducive to the cooling of Li-ion batteries. It can meet the needs of a variety of applications from electric vehicles, electric scooters to power tools and renewable energy storage systems.
| No. | Items | EP-LFP 302Ah STADARD PACK | Note | |
| PS050605-106.26V302A | ||||
| 302AH1P33S | ||||
| 1 | Nominal voltage(V) | 106.26 | ||
| 2 | Operating voltage(V) | min | 82.5 | |
| 3 | max | 120.45 | ||
| 4 | Cell Configuration | 1P33S | ||
| 5 | Nominal energy（KWh ） | 32.09 | 25±2℃ | |
| 6 | Nominal capacity(Ah) | 302 | 25±2℃ | |
| 7 | Maximum continuous charge current（A） | 302 | 25±2℃ | |
| 8 | Maximum continuous discharge current（A） | 302 | 25±2℃ | |
| 9 | Shipping consistency（mv） | 30 | Voltage difference between cell ＜30mV | |
| 10 | SOC operating range（%） | 20~100 | ||
| 11 | Insulation requirements(MΩ) | ≥20 | 500V DC，High voltage output to battery shell, at the normal temperature and humidity | |
| 12 | cooling method | Liquid cooling | ||
| 13 | Shipping capacity | ≈30% | SOC is consistency in the same batch | |
| 14 | Dimension L (mm) | 1020 | ||
| Dimension B (mm) | 635 | |||
| Dimension H (mm) | 249 | |||
The battery box is currently assembled with a full range of VDA series batteries, which can be adapted to most commercial vehicle models on the market (bus, heavy truck, mining dump, construction machinery, etc.)
.png "ps050605_(1).png")
.png "ps050605_(2).png")
.png "ps050605_(3).png")
.png "ps050605_(4).png")
.png "ps050605_(5).png")
.png "ps050605_(6).png")
.png "ps050605_(7).png")
