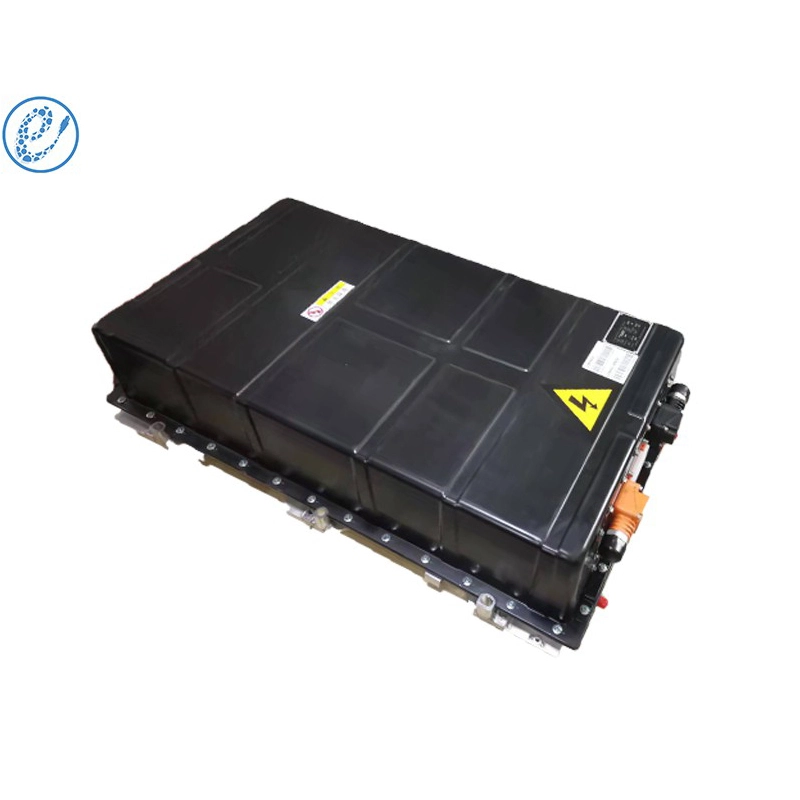

The PS131502-115.92V302A (302AH1P36S) Pack is a powerful and efficient lithium-ion airport battery pack. It has a nominal voltage of 115.92V, a capacity of 302Ah. It has a long cycle life and is designed to provide long-term, reliable power for a variety of applications.
| No. | Items | EPLFP 302Ah STADARD PACK | Note | |
| PS131502-115.92V302A | ||||
| 302Ah1P36S | ||||
| A BOX | ||||
| 1 | Nominal voltage(V) | 115.92 | ||
| 2 | Operating voltage(V) | min | 72 | |
| 3 | max | 131.4 | ||
| 4 | Cell Configuration | 1P36S | ||
| 5 | Nominal energy (KWh) | 35.01 | 25±2℃, 1/3C, 100%DOD | |
| 7 | Weight (Kg) | 226±6.5 | ||
| 8 | Energy density(Wh/Kg) | ≥135 | without: High-voltage box, cable | |
| 9 | Nominal capacity(Ah) | 302 | 25±2℃ | |
| 11 | Maximum continuous charge current (A) | 250 | 20~45℃.SOC:0~80% | |
| 12 | Maximum continuous discharge current (A) | 250 | 15~45℃. SOC:40%~100% | |
| 13 | Maximum pulse charge current (≤30s) | 453 | 25~45℃. SOC:0~80% | |
| 14 | Maximum pulse discharge current (≤30s) (A) | 906 | 20~50℃. SOC:40%~100% | |
| 15 | Shipping consistency (mv) | 30 | Voltage difference between cell<30mV | |
| 16 | Humidity range | ≤65% | ||
| 17 | Self-discharge | ＜3% | 25±2℃， 50%SOC | |
| 18 | Storage temperature(℃) | 0~45℃ | ||
| 19 | SOC operating range (%) | 20~100 | ||
| 20 | Insulation requirements(MΩ) | ≥20 | 500V DC. High voltage output to battery module shell, at the normal temperature, and humidity | |
| 21 | Protection class | IP67 | ||
| 22 | cooling method | Natural cooling/Liquld colding | ||
| 23 | heating method | Heating film/Liquid Heating | ||
| 24 | Shipping capacity (SOC) | ≈30% | SOC is consistency in the same batch | |

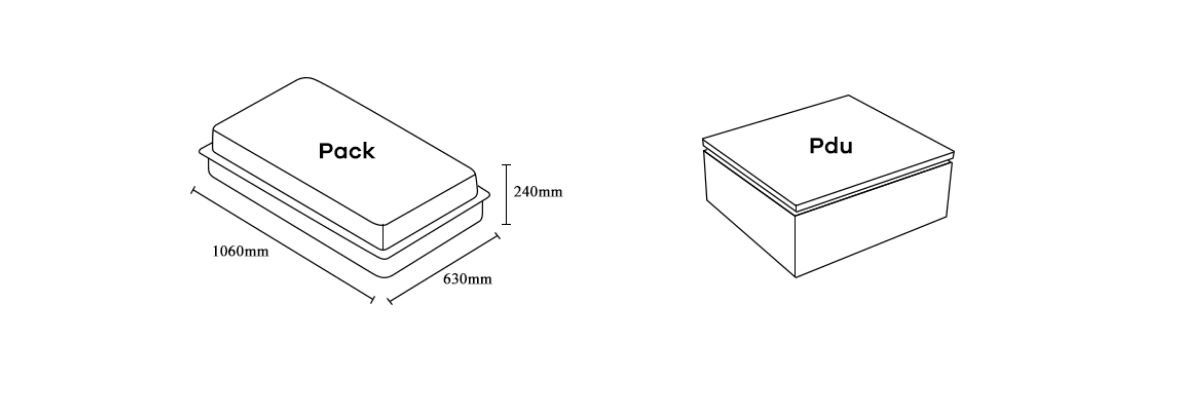

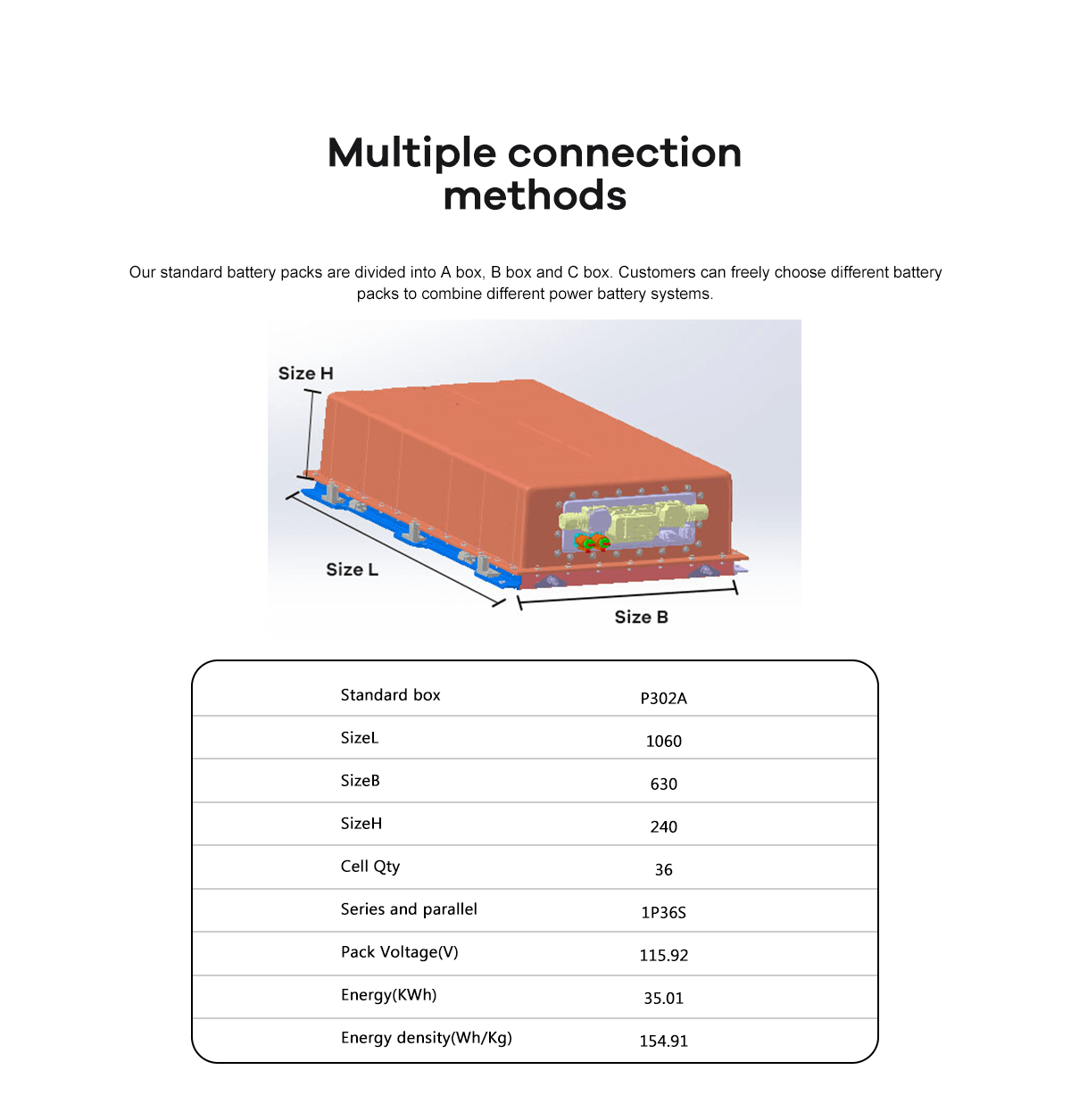

| 25 | Dimension L (mm) | 1060 | ||
| Dimension B (mm) | 630 | |||
| Dimension H (mm) | 240 | |||
