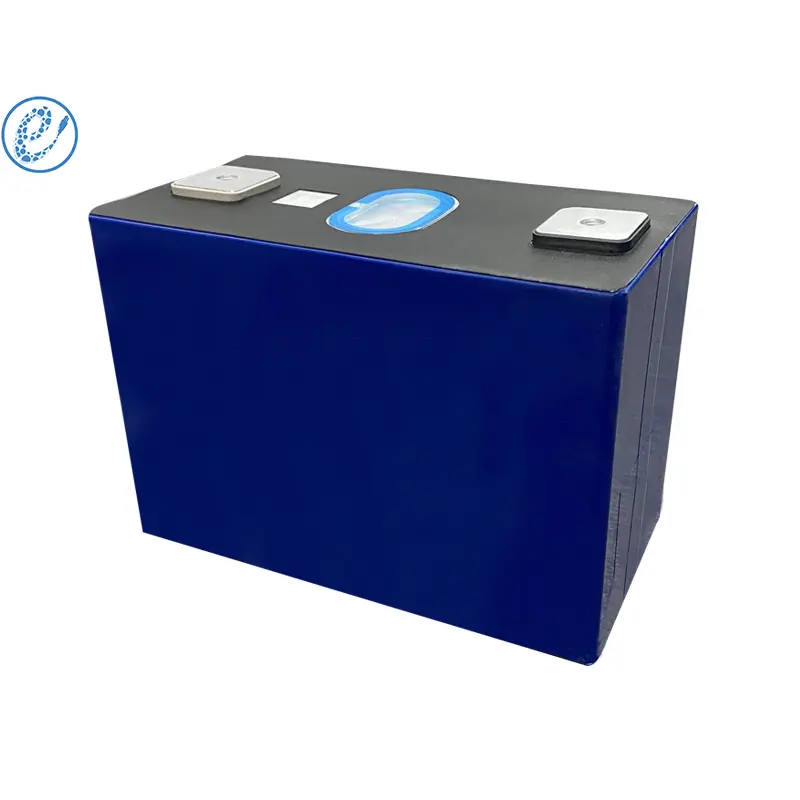

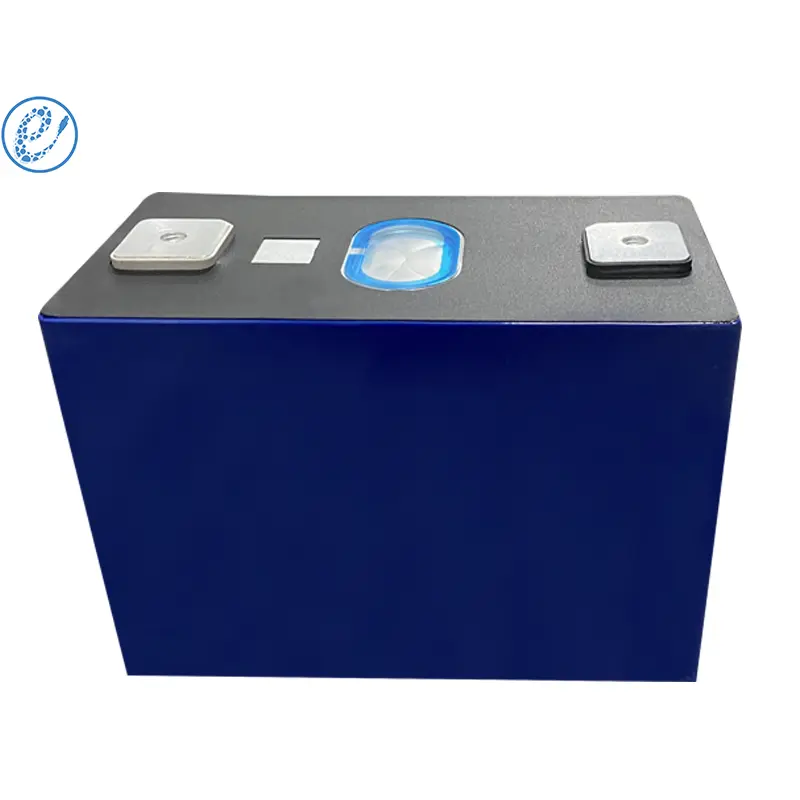

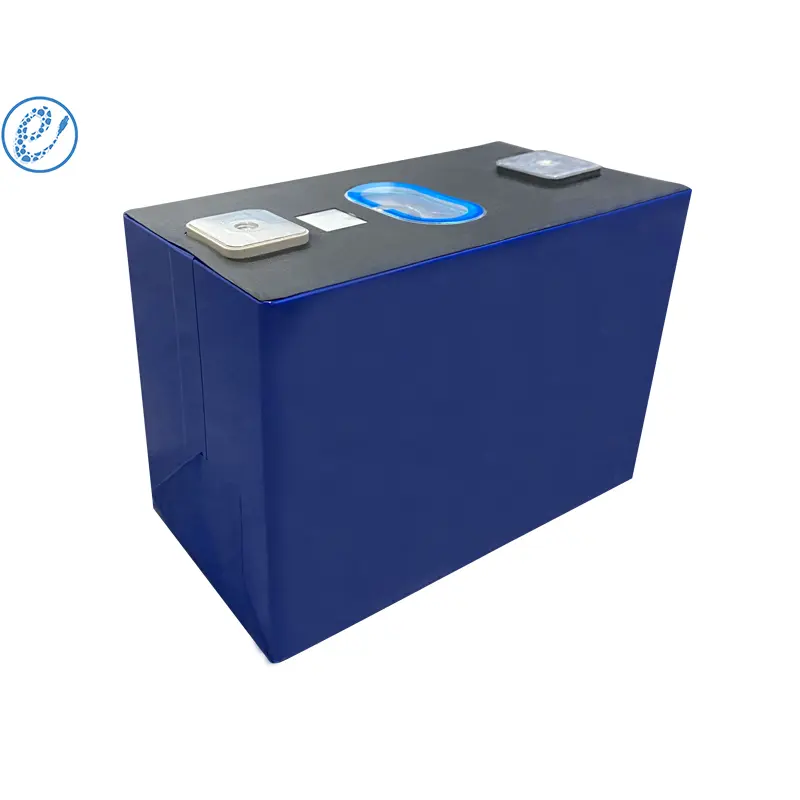

With a capacity of 174Ah, the C5-NCM174W ensures a durable energy storage solution that minimises maintenance and replacement costs.

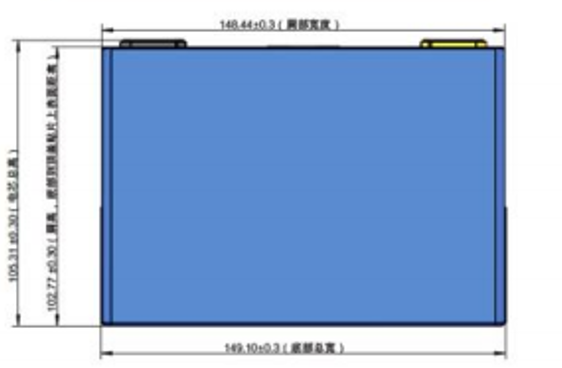

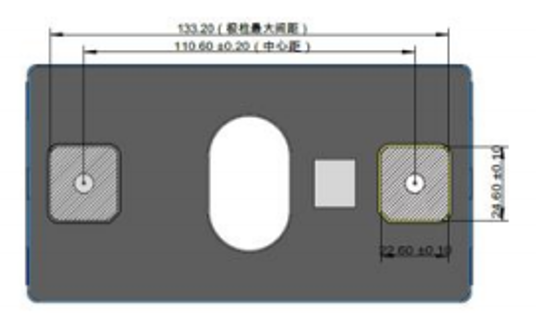

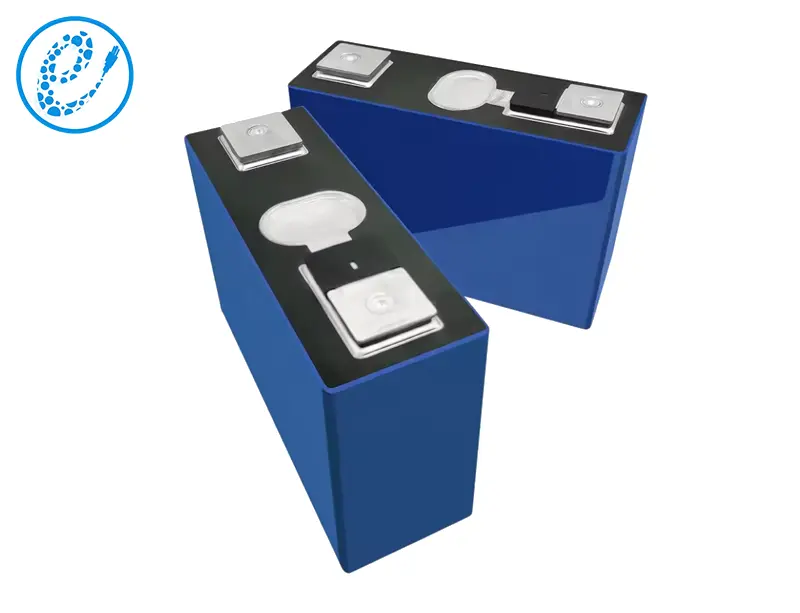

C5-NCM174W Lithium Ion Cell Diagram
| Item | Specification | |
| Dimension (Welding terminal) | 79.22±0.3mm*149.10±0.6mm*102.77±0.6mm | |
| Weight | 2.7±0.1kg | |
| Min. capacity | 174Ah（1C） | |
| Min. energy | 636Wh (1C) | |
| Recommended SOC usage window | 2%~97% | |
| Terminal | Welding | |
| Impedance（1kHz） | ≤0.6mΩ | |
| Voltage | Max. | 4.35V |
| Nominal | 3.66V（1C） | |
| Min. | 2.8V (T＞-5℃）/ 2.5V（-20℃＜T≤-5℃）/ 2.1V (T≤-20℃) | |
| Current | Maximum continuous charge | ≤210A |
| Maximum continuous discharge | ≤348A | |
| Energy density | Gravimetric | 240Wh/kg (1/3C) |
| Volumetric | 550Wh/L (1/3C) | |
| Temp. Condition | Operation (Charge) | -20~55℃ |
| Operation (Discharge) | -30~55℃ | |
| Storage | -30 ~ 55℃ | |
| Self-Discharge Rate | Count after fresh cell need Standard Charge to 50%SOC and storage at 25±2°C for 1 month | ≤2% |
| Cycle Life | 0.5C/1C, 80% DOD 25℃ | 1500 cycles |
| Abuse test | Overcharge, Over-discharge, Short, Heat | GB/T 31485-2015 |
