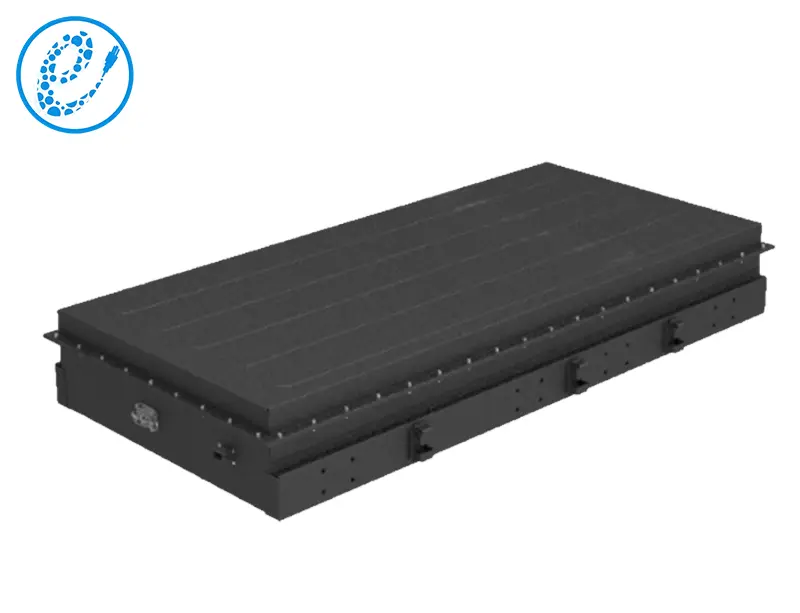

The PS13XX02-322V 200Ah battery pack is designed for electric microvans and features a 100-series cell configuration (1P). It supports a maximum charge/discharge rate of 1C, ensuring efficient power delivery. The cell battery pack utilizes natural cooling and is IP67 rated for dust and water resistance, making it ideal for various environmental conditions.
.png "200ah1p100s_(1).png")
| No. | Items | EP-LFP200Ah STANDARD PACK | Note | |
| PS13XX02-322V200A | ||||
| 200AH1P100S | ||||
| 1 | Nominal voltage(V) | 322 | ||
| 2 | Operating voltage(V) | min | 250 | T＞0℃ |
| 3 | max | 365 | ||
| 4 | Nominal capacity(Ah) | 200 | ||
| 5 | Nominal energy（KWh ） | 64.4 | ||
| 6 | Cell Configuration | 1P100S | ||
| 7 | Maximum Charging Rate | 1C | ||
| 8 | Maximum Discharging Rate | 1C | ||
| 9 | SOC operating range（%） | 10~90 | ||
| 10 | Insulation requirements(MΩ) | ≥20 | ||
| 11 | Cooling method | Natural cooling | ||
| 12 | Heating method | No | Or heating film | |
| 13 | Shipping capacity (SOC) | ≈30% | SOC is consistency in the same batch | |
| 14 | Protection level | IP67 | ||
| 15 | Weight | 520kg | ||
| 16 | Dimension L （mm） | 1700 | ||
| Dimension B （mm） | 864 | |||
| Dimension H （mm） | 245 | |||
High Reliability: High-strength pack assembly design meets GB 38031 high safety standards.
High Safety: The cells use a high-safety lithium iron phosphate (LFP) system, with BMS for real-time monitoring and timely warning protection.
Strong Temperature Adaptability: Equipped with an electric heating system, the operating temperature range is -30°C to +55°C, adaptable to various regional applications.
Strong Mechanical Protection: IP67 protection rating with built-in chassis armor, resistant to impacts from debris smaller than 15mm.
.png "200ah1p100s_(2).png")
.png "200ah1p100s_(3).png")
.png "200ah1p100s_(4).png")
.png "200ah1p100s_(5).png")
.png "200ah1p100s_(6).png")
