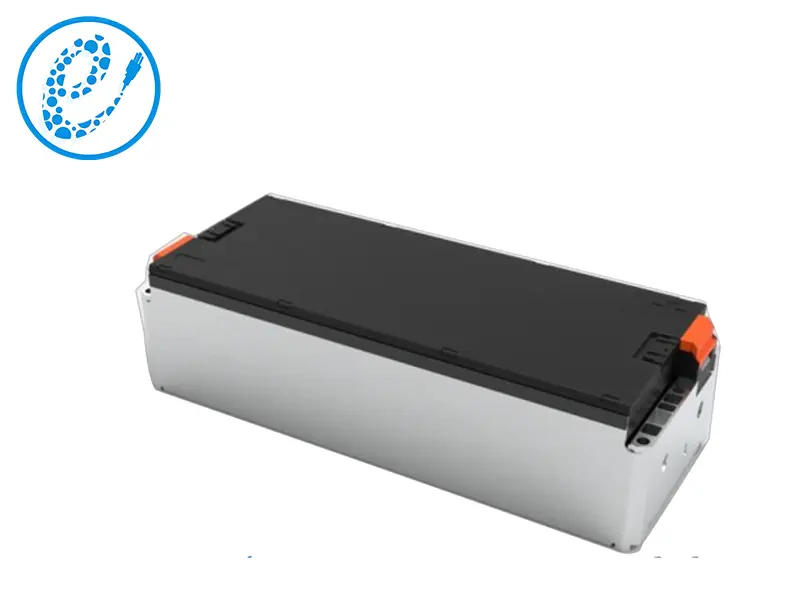

MS0302-22.32V106A-(53Ah2P6S) This NCM modular battery has a rated voltage of 22.32V and a rated capacity of 106Ah in a 2P6S design.
At Ecopower, we aim for safety to be paramount when using any power source, and the MS0302-22.32V106A battery is equipped with an advanced BMS power management system that prevents short-circuiting, over-charging, and overheating, achieving the effect of both safety and reduced battery wear and tear, and prolonging the battery's lifespan.
.png "ms0302-22_(1).png")
| No. | Items | EP-NCM53Ah STANDARD MODULE | Note | |
| MS0302-22.32V106A | ||||
| 53Ah2P6S | ||||
| 1 | Nominal voltage(V) | 22.32 | ||
| 2 | Operating voltage(V) | min | 16.8 | Cell 2.8V~4.35V |
| max | 26.1 | After assembly into a module, it is recommended to reduce the cell voltage | ||
| 3 | Humidity range | 20%-95% | ||
| 4 | Nominal capacity(Ah) | 106 | 25±2℃,1C | |
| 5 | Nominal energy（KWh ） | 2.365 | 25±2℃,1C | |
| 6 | Impedance（mΩ） | ≤2.6 | ||
| 7 | Cell Configuration | 2P6S | Serial and parallel schemes | |
| 8 | End of life residual capacity (Ah) | 80 | ||
| 9 | Module weight（kg） | 12.10±0.5 | ||
| 10 | Maximum continuous change current（A） | 106 | ||
| 11 | Maximum short pulse charge current（≤10s） | 318 | 25~50℃，＜80%SOC | |
| 12 | Maximum continuous discharge current（A） | 106 | ||
| 13 | Maximum short pulse discharge current（≤10s）（A） | 318 | 25~50℃，＞30%SOC | |
| 14 | SOC operating range（%） | 10~100 | ||
| 15 | Insulation requirements(MΩ) | ≥200 | 1000V DC，High voltage output to battery module shell, at the normal temperature and humidity | |
| 16 | Module cooling method | Natural cooling | PTC heater or water cold plate | |
| 17 | Module heating method | No | ||
| 18 | Shipping capacity (SOC) | ≈30% | SOC is consistency in the same batch | |
| 19 | Shipping consistency（mv） | ＜30 | Voltage difference between cell of module＜30mV | |
| 20 | Dimension L （mm） | 355 | ||
| Dimension B （mm） | 151.5 | |||
| Dimension H （mm） | 108.5 | |||
.png "ms0302-22_(3).png")
.png "ms0302-22_(4).png")

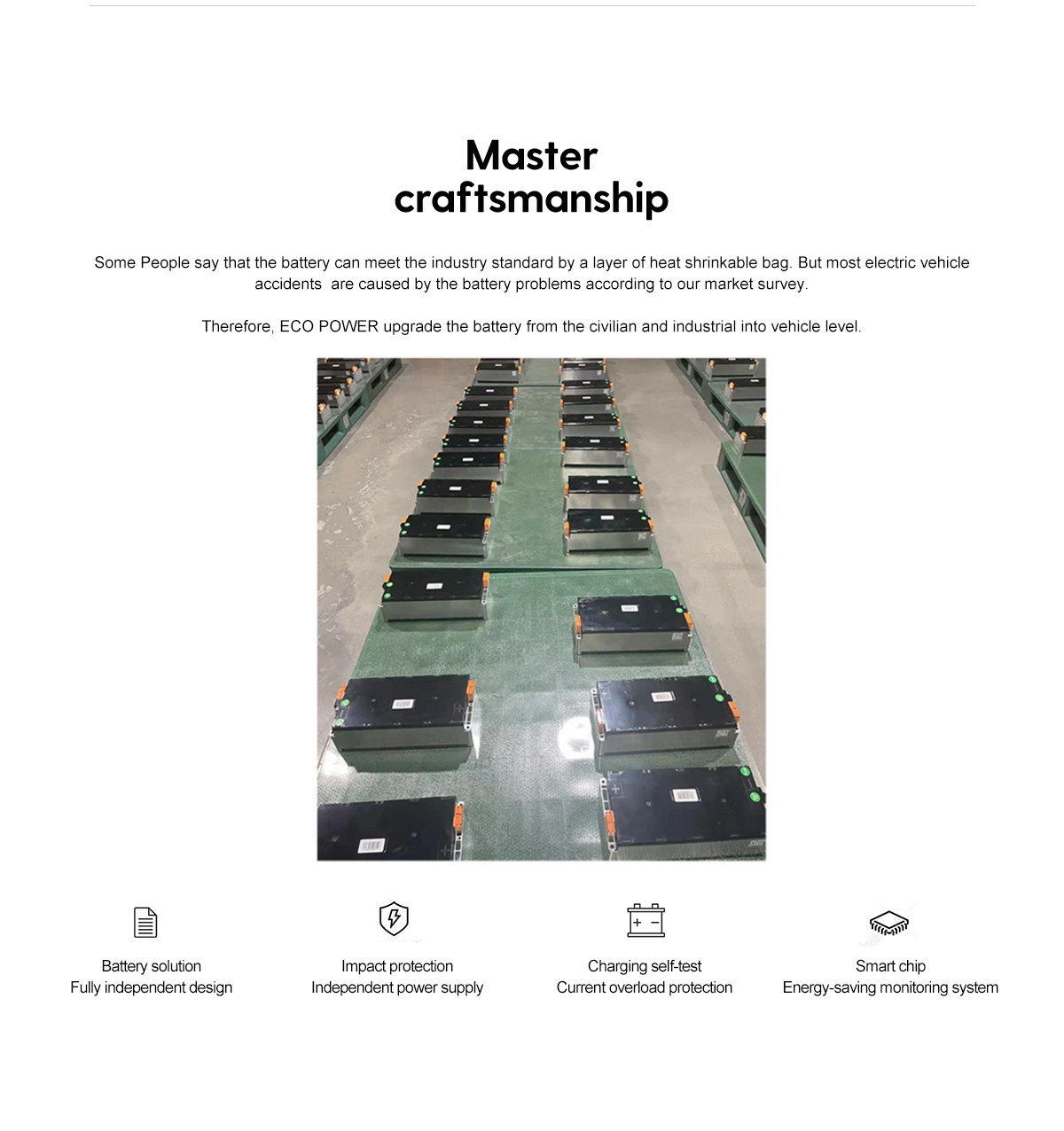

.png "ms0302-22_(5).png")
.png "ms0302-22_(6).png")

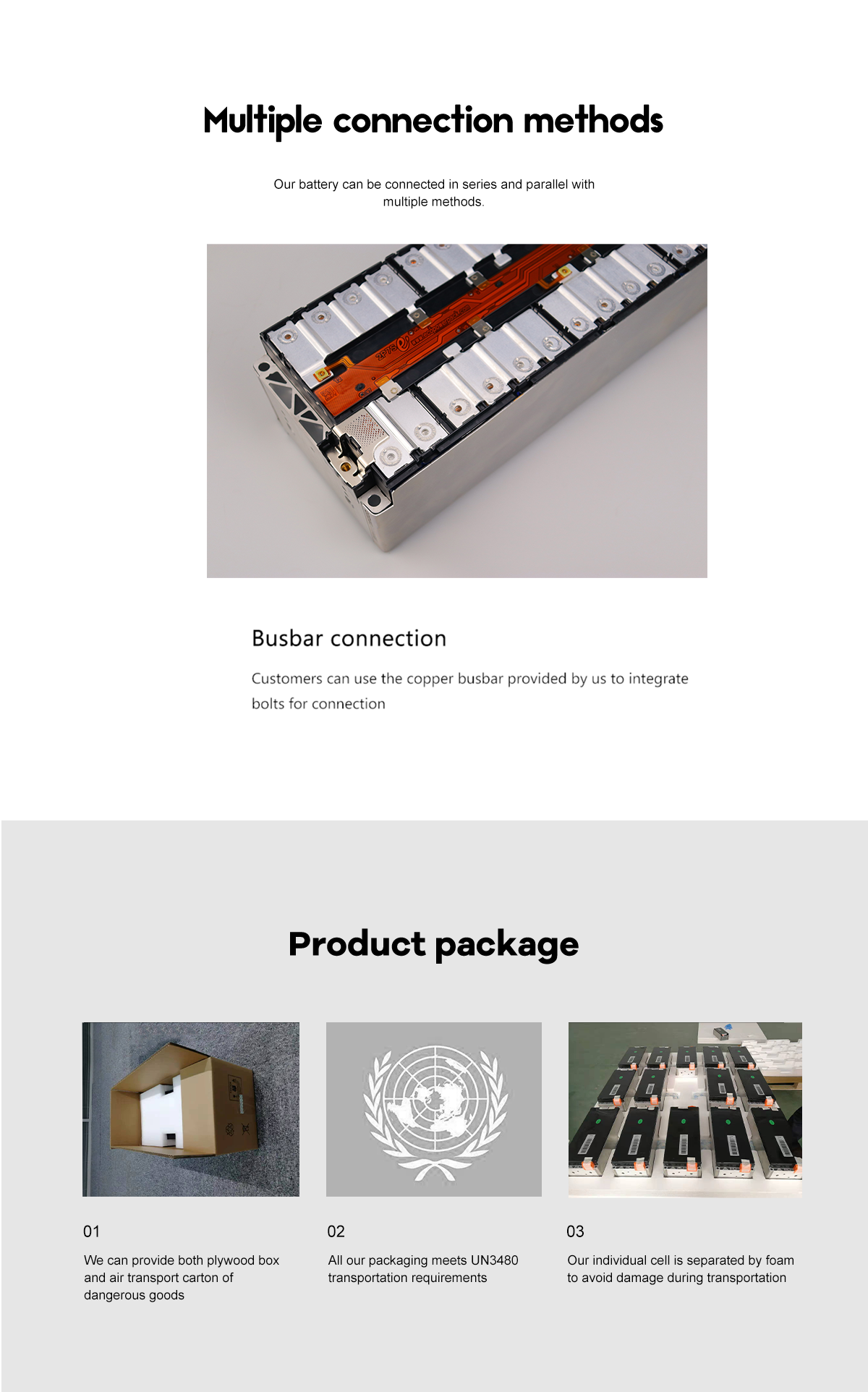

.png "ms0302-22_(7).png")
.png "ms0302-22_(8).png")
.png "ms0302-22_(9).png")
