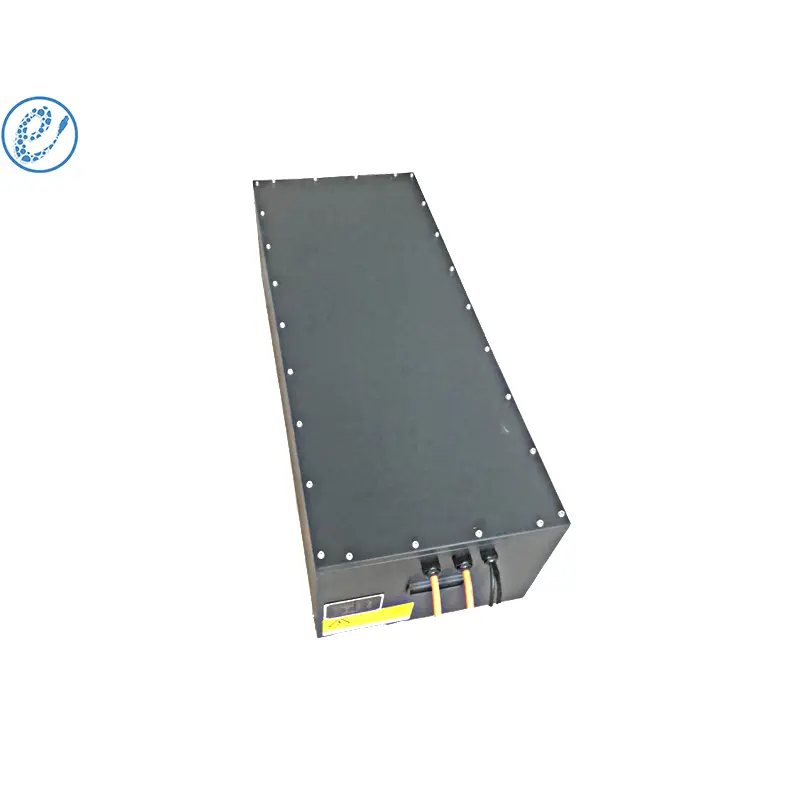

PC011410-76.8V86A(86AH1P24S) is our customised battery pack with 1P24S configuration, rated voltage is 76.8V, rated energy is 6.6048kwh, which can provide you with stable and powerful energy supply.
| No. | Items | EP-LFP 86Ah STADARD PACK | Note | |
| PC011410-76.8V86A | ||||
| 86AH1P24S | ||||
| 1 | Nominal voltage(V) | 76.8 | ||
| 2 | Operating voltage(V) | min | 60 | |
| 3 | max | 87.6 | ||
| 4 | Cell Configuration | 1P24S | ||
| 5 | Nominal energy（KWh ） | 6.6048 | 25±2℃ | |
| 6 | Nominal capacity(Ah) | 86 | 25±2℃ | |
| 7 | Rated charge（A） | 30 | 25±2℃ | |
| 8 | Rated discharge（A） | 50 | 25±2℃ | |
| 9 | SOC operating range（%） | 20~100 | ||
| 10 | Insulation requirements(MΩ) | ≥20 | Battery pack total positive and negative to ground | |
| 11 | cooling method | Natural Cooling | ||
| 12 | Weight（kg） | 75 | ||
| 13 | Shipping capacity | ≈30% | SOC is consistency in the same batch | |

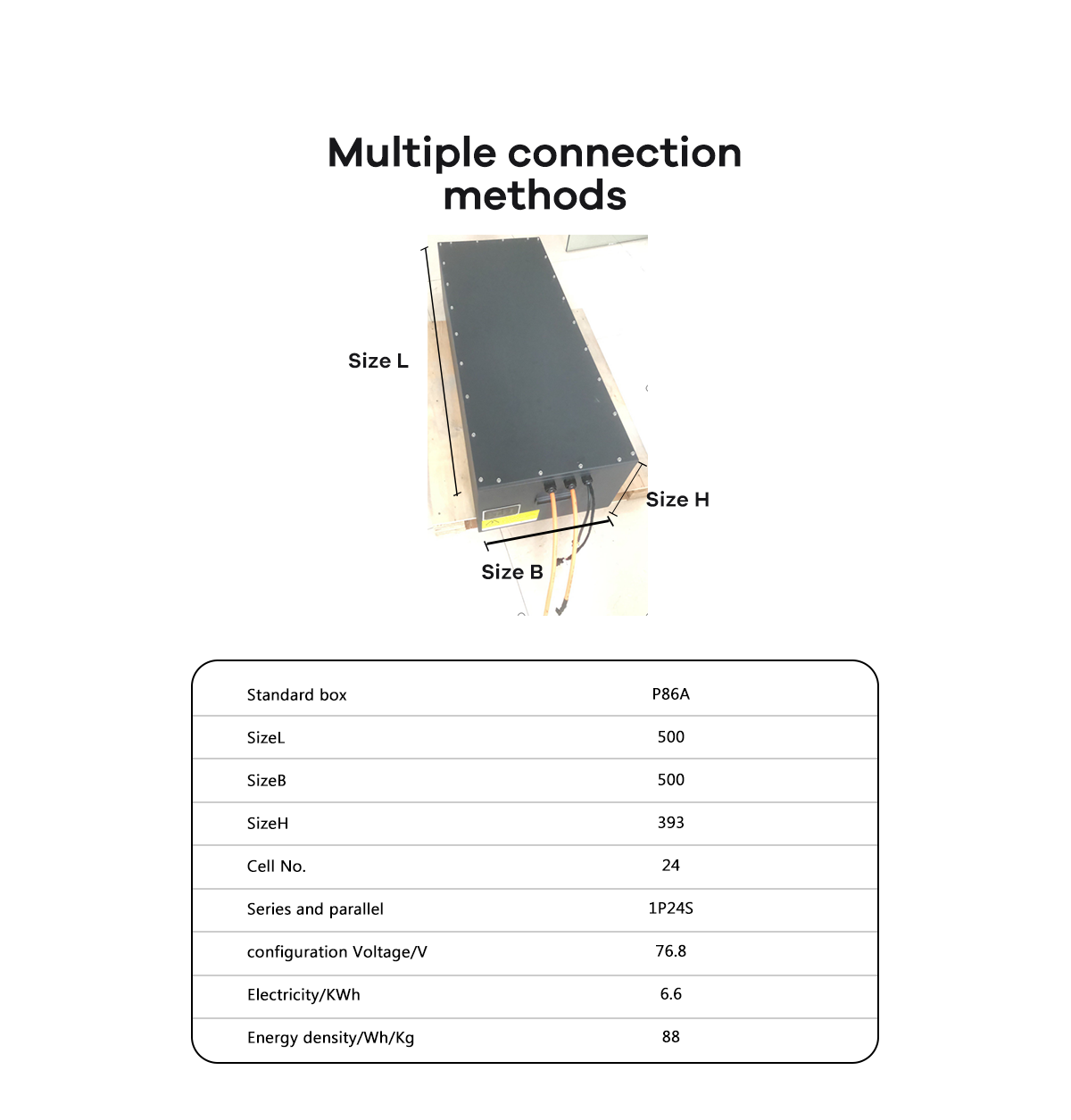

| 14 | Dimension L (mm) | 500 | ||
| Dimension B (mm) | 500 | |||
| Dimension H (mm) | 400 | |||
