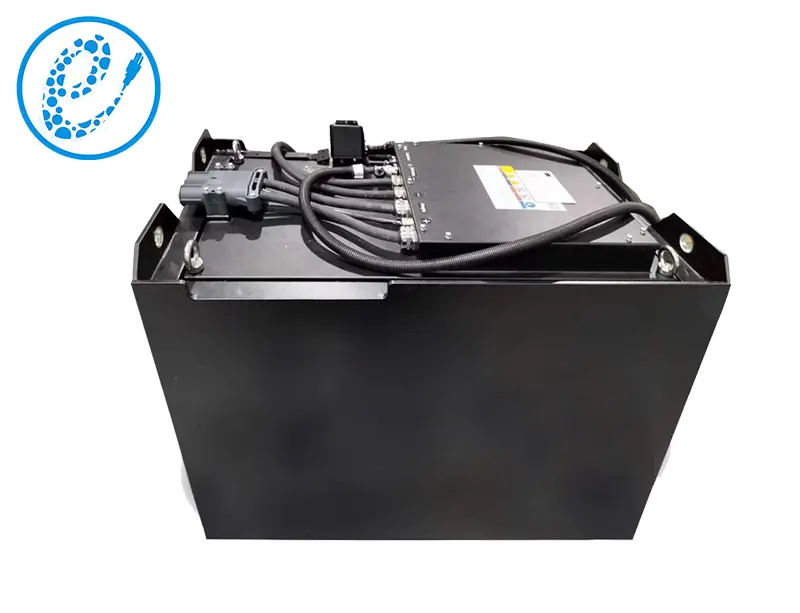

PC16XXXX-38.4V824A (206AH4P12S) is a 4-parallel, 12-series forklift battery pack with reliable and vibration-resistant construction. With a rated energy of 31.641kWh and a rated voltage of 38.4V, it can provide a stable energy supply for your electric forklift. It has undergone rigorous field inspection tests and is equipped with advanced safety features, so you can be confident in the reliability and safety of this battery.
| Item | Parameters | |
| PC16XXXX-38.4V824A（206AH4P12S） Battery Pack | Nominal Voltage | 38.4V |
| Rated Capacity（@ 20±5℃ 0.3C） | 824Ah | |
| Nominal Energy（@ 20±5℃ 0.3C/0.3C100%DOD） | ≈31.641kWh | |
| Maximal Continuous Charging Current | 300A | |
| Maximal Continuous Discharging Current | 300A | |
| Maximum pulse discharge current（≤5s） | 750A | |
| Battery Configuration | 48 series of 3.2V206Ah cell | |
| Battery Operating Voltage Range | 30～43.8V | |
| Operating Temperature Range(Charge) | 0～55℃ | |
| Operating Temperature Range(Discharge) | -20～60℃ | |
| Recommended Operating Range of SOC | 20%～100% | |
| SOC Requirement for long period idle and storage | ≈30% SOC | |
| Dimension | ≈960mm*510mm*760mm(W*D*H) | |
| Weight | ≈1180kg | |
| Communication methods | RS485 | |
