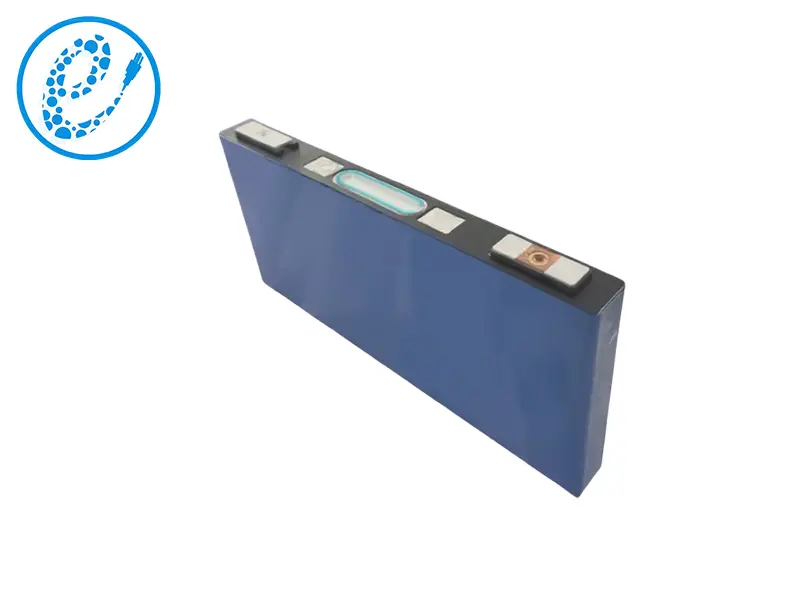

C3-NCM72W possesses high safety performance and passed GB/T 31485-2015 test.Your safety and peace of mind are of utmost importance to us.

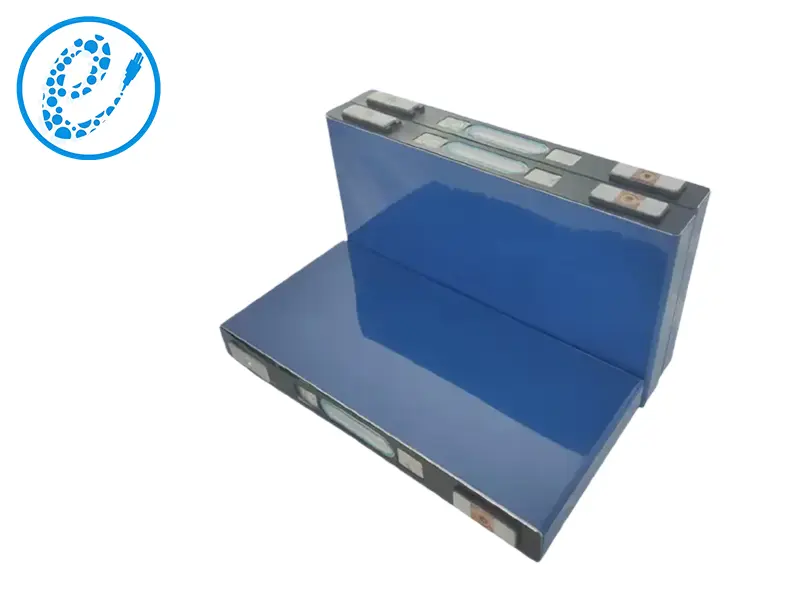

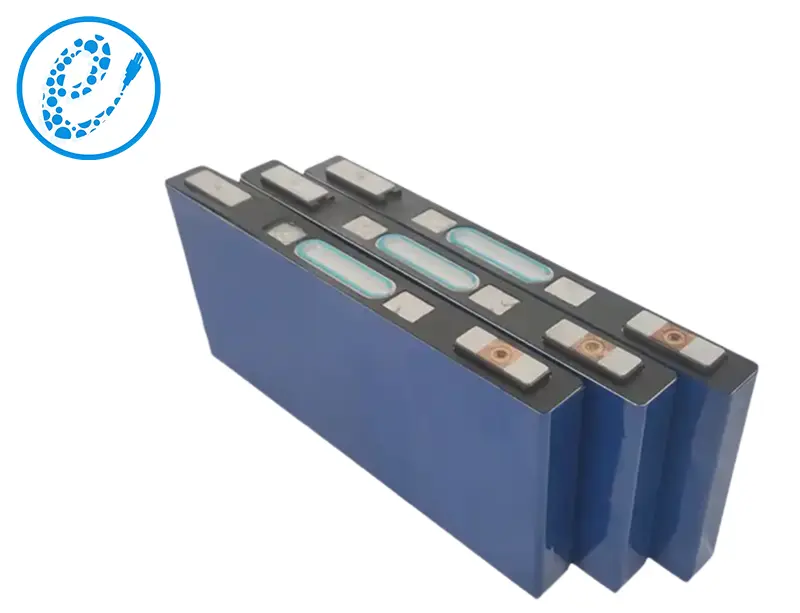

Experience the EcoPower difference with the C3-NCM72W NCM cell. Embrace unrivaled performance, efficiency, and sustainability in your energy storage journey. Visit our website now to explore the C3-NCM72W and unlock the potential of tomorrow's energy storage.
| Item | Specification | |

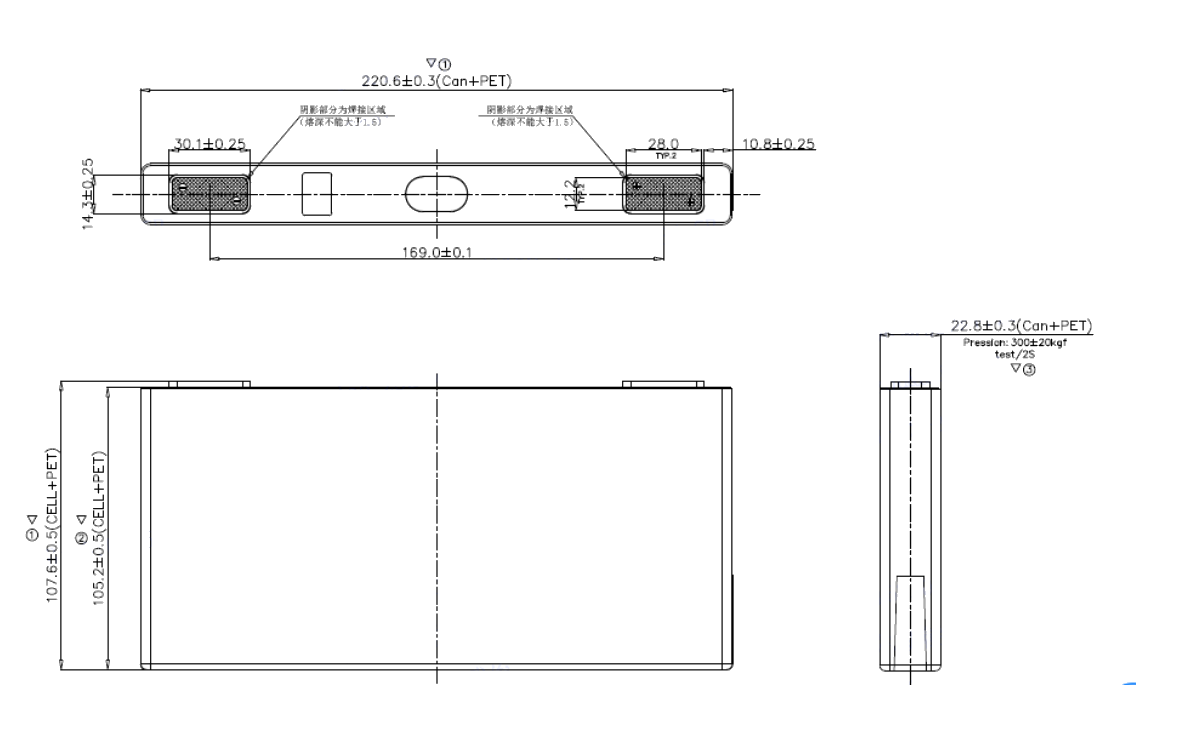

| Dimension | 22.8mm*220.6mm*107.6mm | |
| Weight | 1.21±0.05Kg | |
| Min. capacity | 72Ah (1C) @ 25℃ | |
| Min. energy | 268.56Wh (1C) @ 25℃ | |
| Recommended SOC usage window | 10 ~ 90% | |
| Terminal | Welding Terminal | |
| Impedance（1kHz） | ≤0.6mΩ | |
| Voltage | Max. | 4.35V |
| Nominal | 3.73V | |
| Min. | 2.8V（T＞0℃） 2.5V（-20℃＜T≤ 0℃） 2.1V（T≤-20℃） | |
| Current | Maximum charge rate (peak) | 432A @ 25℃ |
| Maximum discharge rate (peak) | 576A @ 25℃ | |
| Energy density | Gravimetric | 221.95Wh/kg |
| Volumetric | 496.23Wh/L | |
| Temp. Condition | Operation | -30℃＜T＜55℃ |
| Storage | -40 ~ 70℃ | |
| Cycle Life | 1C/1C, 100% DOD 25℃ | 3000 cycles |
| Abuse test | Overcharge, Over-discharge, Short, Heat | GB/T 31485-2015 |
