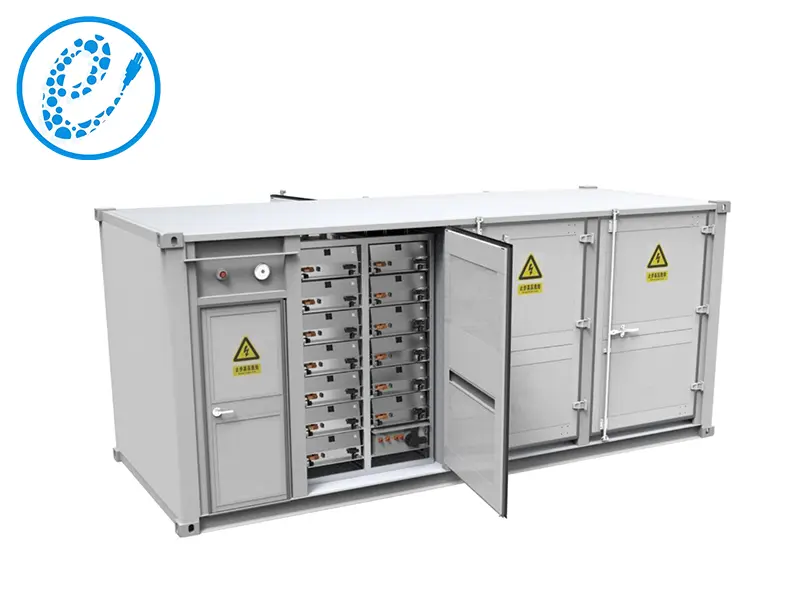

SCXXXX02-3MWh-921.6V3360A(280Ah12P288S) this electricity storage systems in 12P288S configuration consists of 12 parallel (12P) and 288 series (288S) battery packs. This configuration ensures a harmonious balance of power, safety and performance, guaranteeing a reliable energy supply.
Containerized battery storage has gained significant attention in recent years due to its ability to offer scalable and versatile energy storage solutions. Our SCXXXX02-921.6V3360A(280Ah12P288S) container energy storage system combines advanced technology and high-performance batteries to deliver a robust and efficient energy storage solution within a convenient containerized form factor.
| No. | Item | Spec. | Remark |
| 1 | Cell Configuration | 288s12p | |
| 2 | Rated Energy | 3096.576kWh | 100%DOD，25℃，0.5C |
| 3 | Operating Voltage Range | 748.8~1036.8V | For cell 2.6V~3.6V |
| 4 | Dimension | 6058mm×2438mm×2896mm | |
| 5 | Mass | ~35000kg | |
| 6 | Rated charge current | 1680（for 0.5P system） | According to current map |
| 7 | Rated discharge current | 1680A（for 0.5P system） | According to current map |
| 8 | Short overload charging current （≤1min） | 3360A（for 0.5P system） | According to current map |
| 9 | Short overload charging current （≤1min） | 3360A（for 0.5P system） | According to current map |
| 10 | Temperature range in cabin | -20~50℃ | |
| 11 | IP level of cabin | Bat. Room IP54 Electric room IP54 | |
| 12 | Cooling and heating type | Liquid cooling / heating | |
| 13 | Communication agreement | CAN, RS485, TCP/IP | |
| 14 | Environment temperature | -30℃~55℃ | / |
| 15 | environment humidity | 5%~90%RH | / |
| 16 | Altitude | ≤3000m | / |
