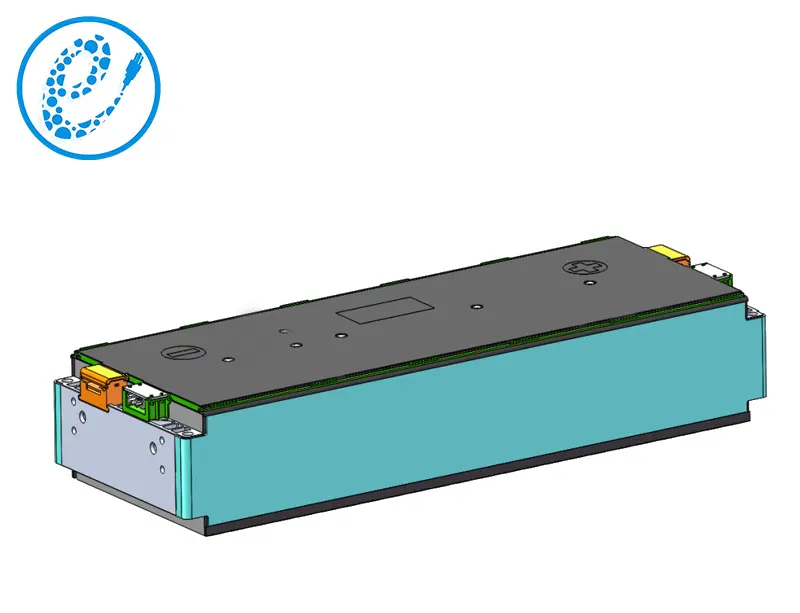

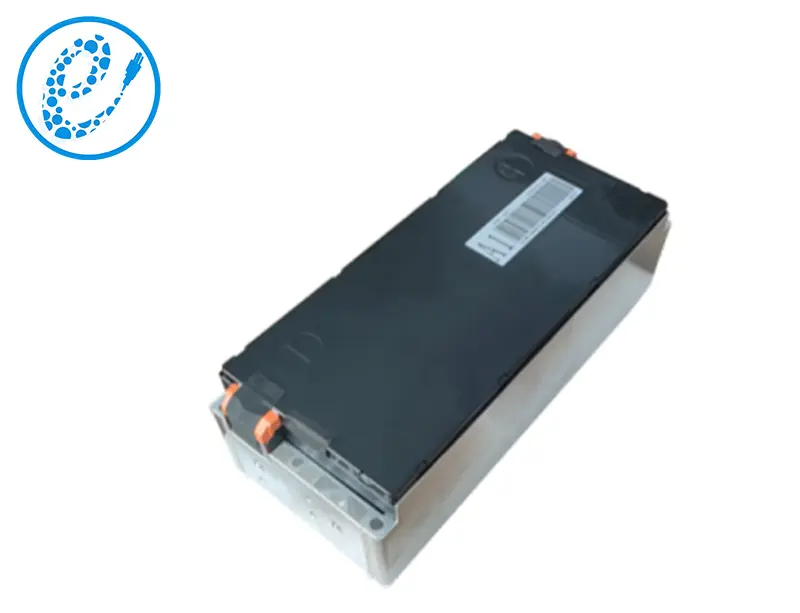

MS0903-88.8V72A-(72Ah1P24S) is rated at 6.393kwh with a rated voltage of 88.8 V. The LiFePO4 charger module ensures a continuous and stable energy supply for your commercial and industrial energy-only, domestic energy storage and containerised energy storage applications.
| No. | Items | EP-NCM72Ah STANDARD MODULE | Note | |
| MS0903-88.8V72A | ||||
| 72AH1P24S | ||||
| 1 | Nominal voltage(V) | 88.8 | 25℃，1C | |
| 2 | Operating voltage(V) | min | 62.7V | 55℃≥T＞0℃ |
| 60V | 0℃≥T＞-20℃ | |||
| 52.8V | -20℃≥T | |||
| 3 | max | 104.4V | ||
| 4 | Nominal capacity(Ah) | 72 | 25℃，1C | |
| 5 | Nominal energy（KWh ） | 6.393 | 25℃，1C | |
| 6 | Cell Configuration | 1P24S | ||
| 7 | Maximum continuous charge current（A） | 72 | ||
| 8 | Maximum continuous discharge current（A） | 72 | ||
| 9 | SOC operating range（%） | 10~90 | ||
| 10 | Insulation requirements(MΩ) | ≥20 | ||
| 11 | Module cooling method | Natural cooling | ||
| 12 | Module heating method | No | Or heating film | |
| 13 | Shipping capacity (SOC) | ≈30% | SOC is consistency in the same batch | |
| 14 | Dimension L （mm） | 641 | ||
| Dimension B （mm） | 225 | |||
| Dimension H （mm） | 111.5 | |||
