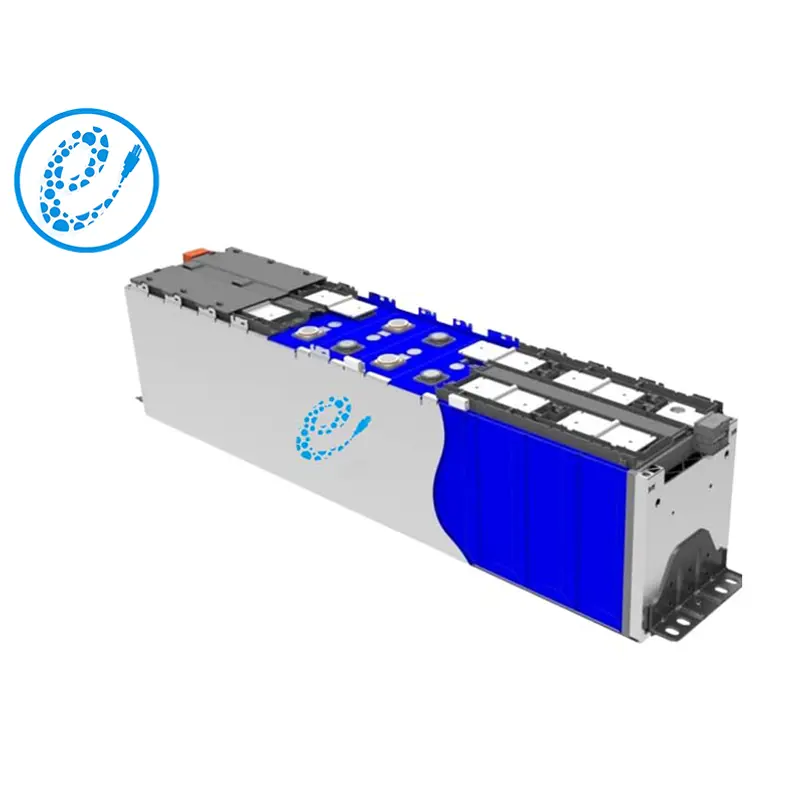

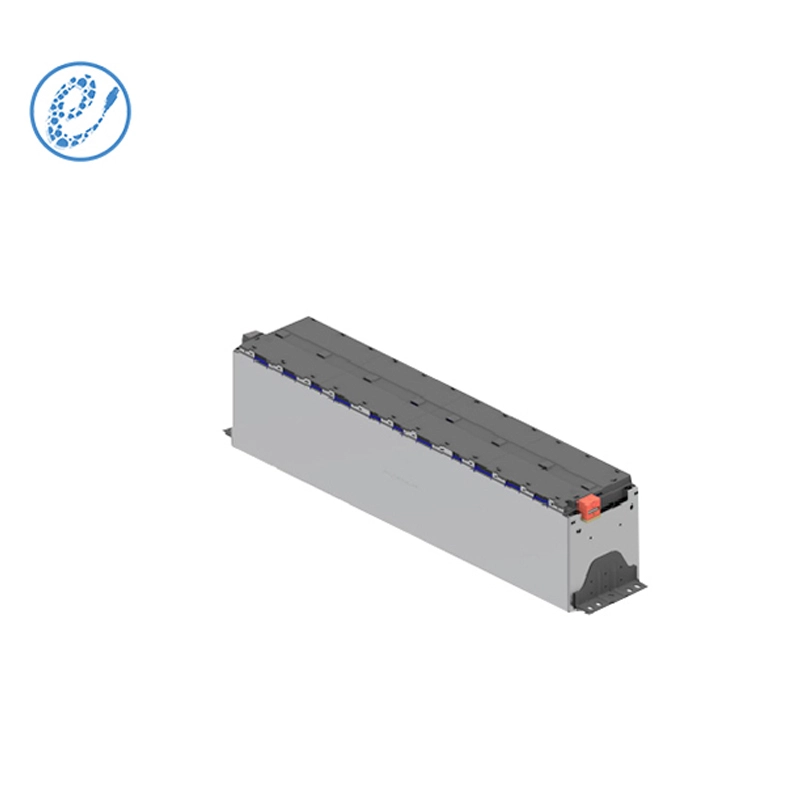

The MS0210-16V412A-(206AH2P5S) module is a rechargeable lithium-ion battery pack with a rated voltage of 16V and a rated capacity of 412Ah using 2P5S to form the module. The battery case is made of rugged materials for reliable operation and the battery is equipped with an internal BMS system for safe and efficient charging and discharging.
| Items | MS0202-16V412A | Note | |
| 206Ah2P5S | |||
| Nominal voltage(V) | 16 | ||
| Operating voltage(v) | min | 12.5 | |
| max | 18.25 | ||
| Nominal capacity (Ah) | 412 | 25+2℃, 1/3C | |
| Nominal energy (KWh) | 6.592 | 25+2℃, 1/3C | |
| Cell Configuration | 2P5S | ||
| Module weight (Kg) | ≈45 | ||
| Maximum continuous charge current (A) | 412 | ||
| Maximum continuous discharge current (A) | 412 | ||
| Maximum pulse discharge current (≤60s)(A) | 824 | ||
| SOC operating range (%) | 20~100 | ||
| Insulation requirements(MΩ) | ≥20 | 500V DC.High voltage output to battery module shell, at the normal temperature and humidity | |
| Module cooling method | Natural cooling | ||
| Module heating film | No | ||
| Shipping capacity (SOC) | ≈30% | SOC is consistency in the same batch | |
| Dimension L (mm) | 641.05 | ||
| Dimension B (mm) | 179 | ||
| Dimension H (mm) | 220.5 | ||
