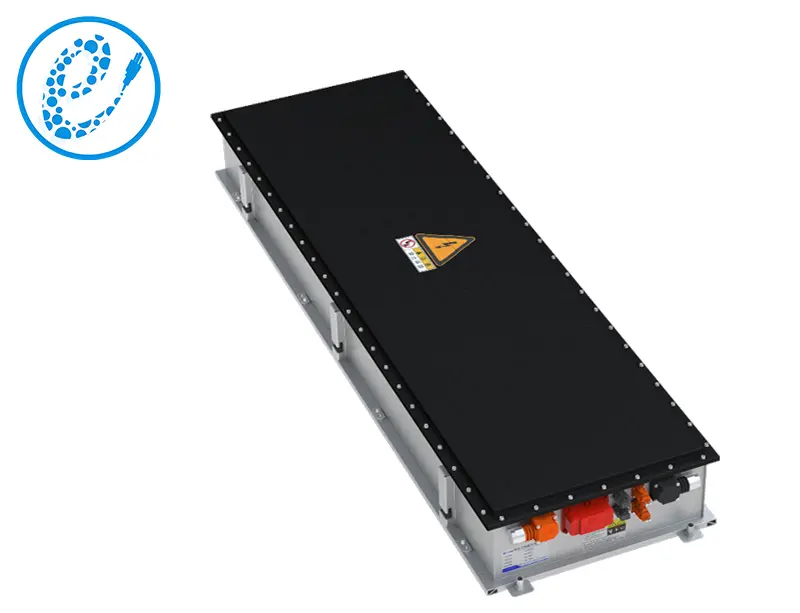

Reliable lithium battery system delivering 309.12V and 206A (206Ah) capacity, organized in a 96-series configuration. Suitable for grid-scale energy storage projects, data center backup systems, and electric trains.
.png "206AH1P96S_(1).png")
| No. | Items | EP-LFP206Ah STANDARD PACK | Note | |
| PS131502-309.12V206A | ||||
| 206AH1P96S | ||||
| 1 | Nominal voltage(V) | 309.12 | ||
| 2 | Operating voltage(V) | min | 240 | T＞0℃ |
| 3 | max | 350.4 | ||
| 4 | Nominal capacity(Ah) | 206 | ||
| 5 | Nominal energy（KWh ） | 63.679 | ||
| 6 | Cell Configuration | 1P96S | ||
| 7 | Maximum continuous charge current（A） | 412 | ||
| 8 | Maximum continuous discharge current（A） | 412 | ||
| 9 | SOC operating range（%） | 10~90 | ||
| 10 | Insulation requirements(MΩ) | ≥20 | ||
| 11 | Module cooling method | Liquid cooling | ||
| 12 | Module heating method | No | Or heating film | |
| 13 | Shipping capacity (SOC) | ≈30% | SOC is consistency in the same batch | |
| 14 | Dimension L （mm） | 2056 | ||
| Dimension B （mm） | 630 | |||
| Dimension H （mm） | 240 | |||
