SS130502-3.35MWh-1331.2V2520A(280AH9P416S)-20GP-280Ah1P52S-8S-9P(0.5P)

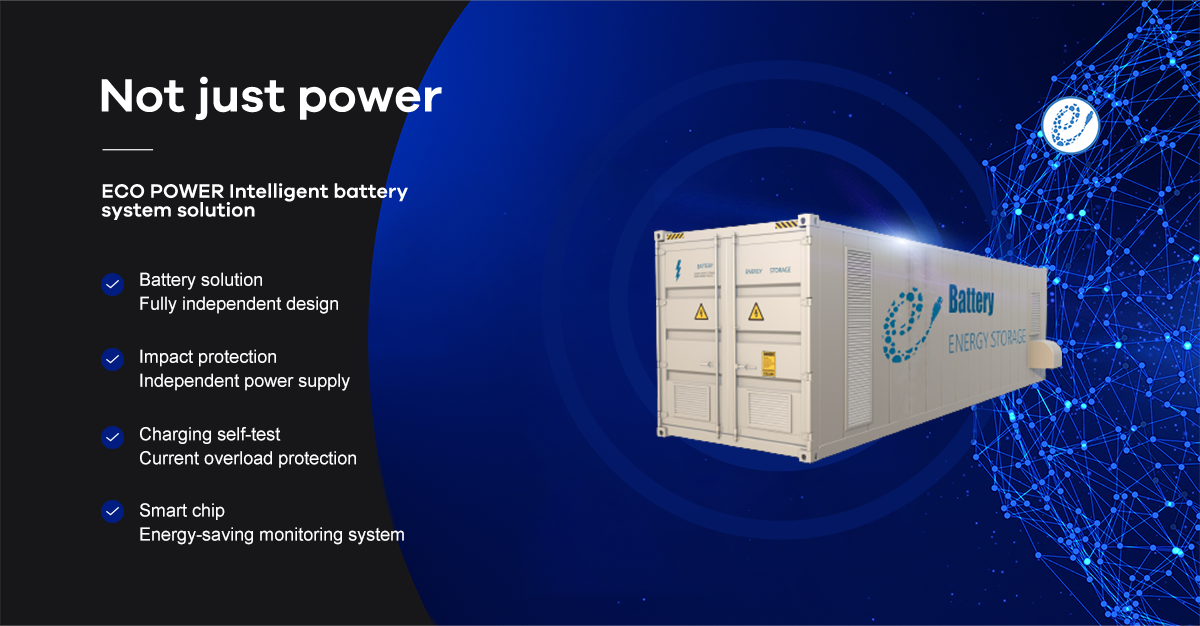

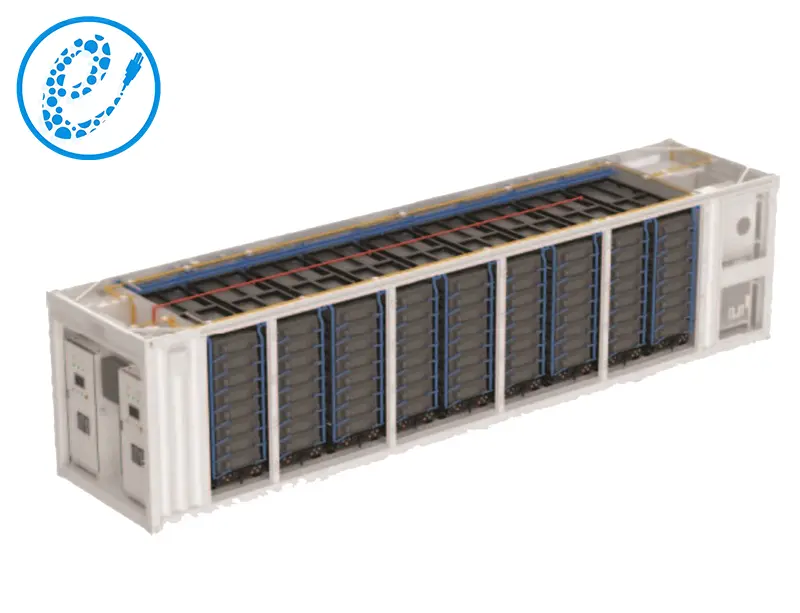

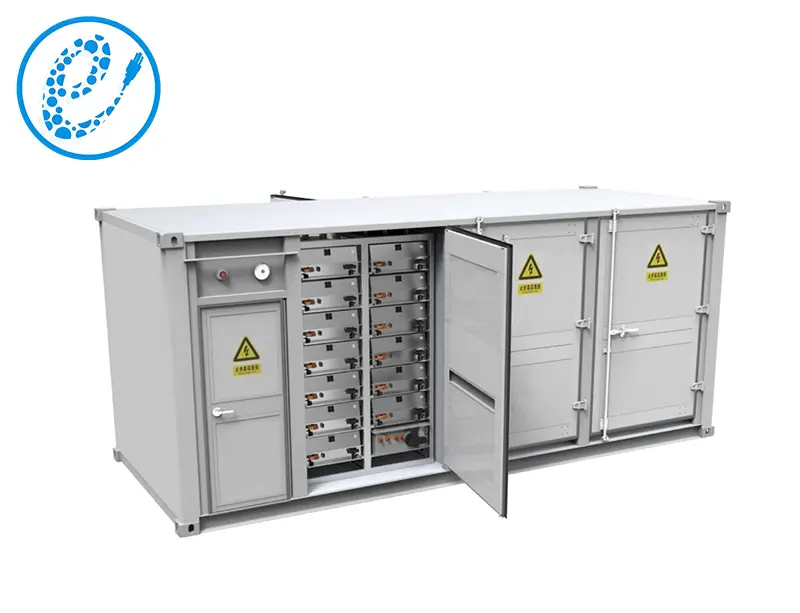

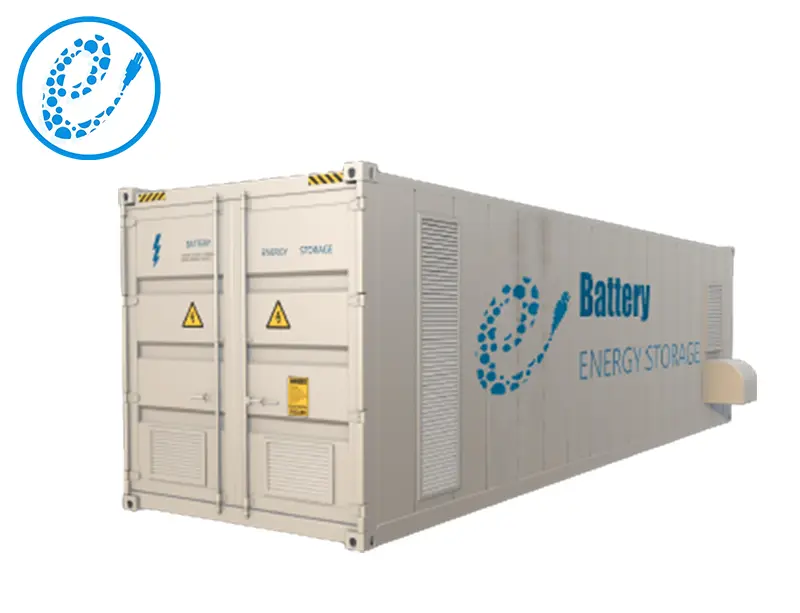

Container energy storage is a portable energy solution with modular design, allowing for easy transportation and scalability to meet varying energy demands.


ItemParameters
Battery PackNominal   Voltage (V)166.4
Capacity   (kWh)52.249
Cell Type3.2V/280Ah
Cell Configuration1P52S

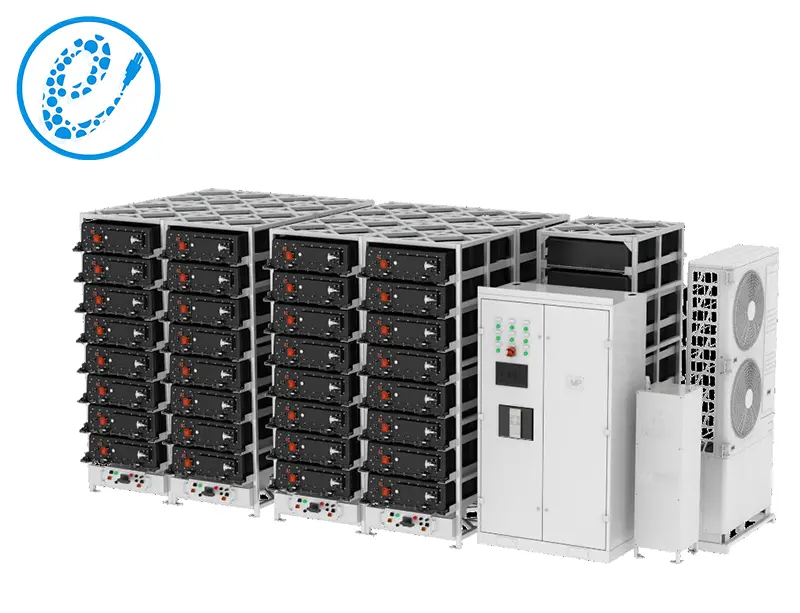

Battery ClusterNominal   Voltage (V)1331.2
Capacity   (kWh)372.736
Pack Configuration1P52S-8S
SSXXXX02-1331.2V2520A(280AH9P416S)Nominal   Voltage (V)1331.2
Capacity   (MWh)3.35
Cluster Configuration1P52S-8S-9P
Rated Power0.5P
Fire Protection SystemPACK-rated   perfluorohexanone fire extinguishing system + water sprinkler
Weight≤35T
Waterproof LevelIP65
Operating Humidity0~95%   (non-condensing)
Operating Temperature Range-30~55℃
Cycle Life6000   times 1Cycle/day (@25±3°C, 0.5P) 90% DOD
    EOL 80%SOH
Cooling MethodLiquid   Cooling
Dimension L×W×H (mm)L6058*W2600*H3200
Communication methodsMODBUS   RTU/TCP、IEC104、IEC61850
