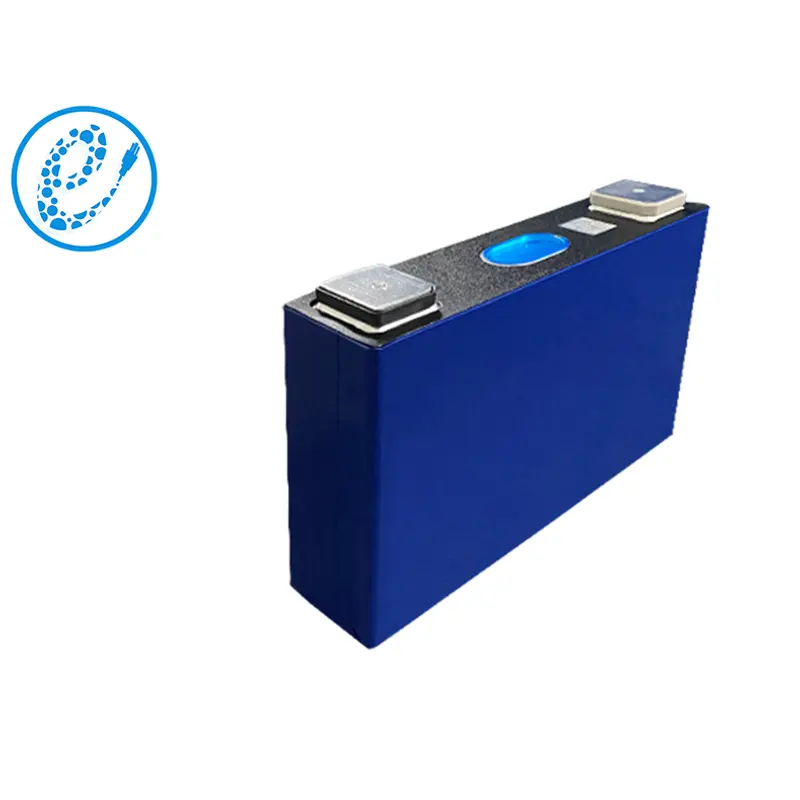

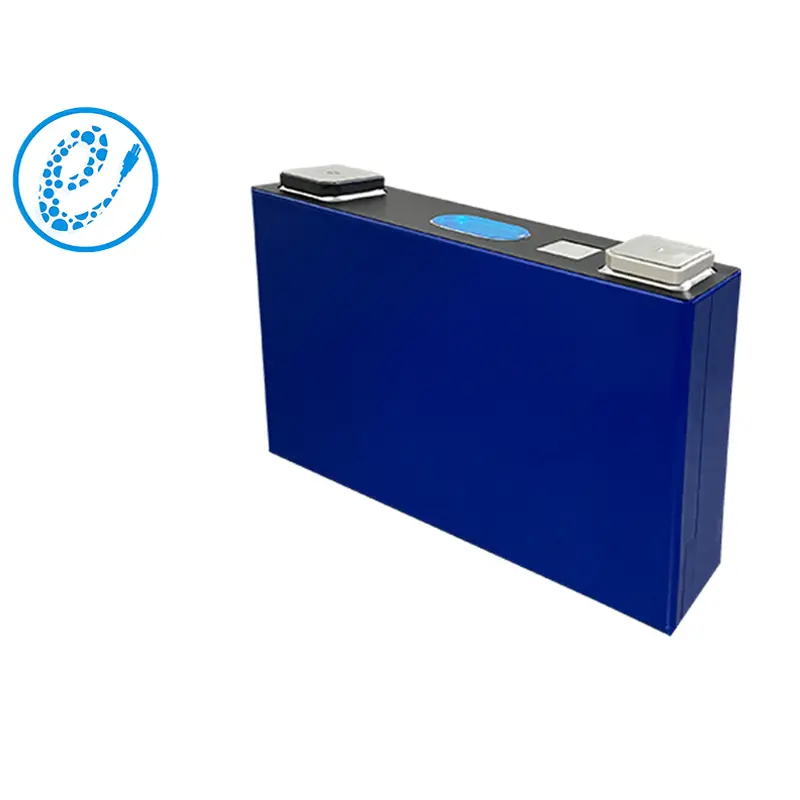

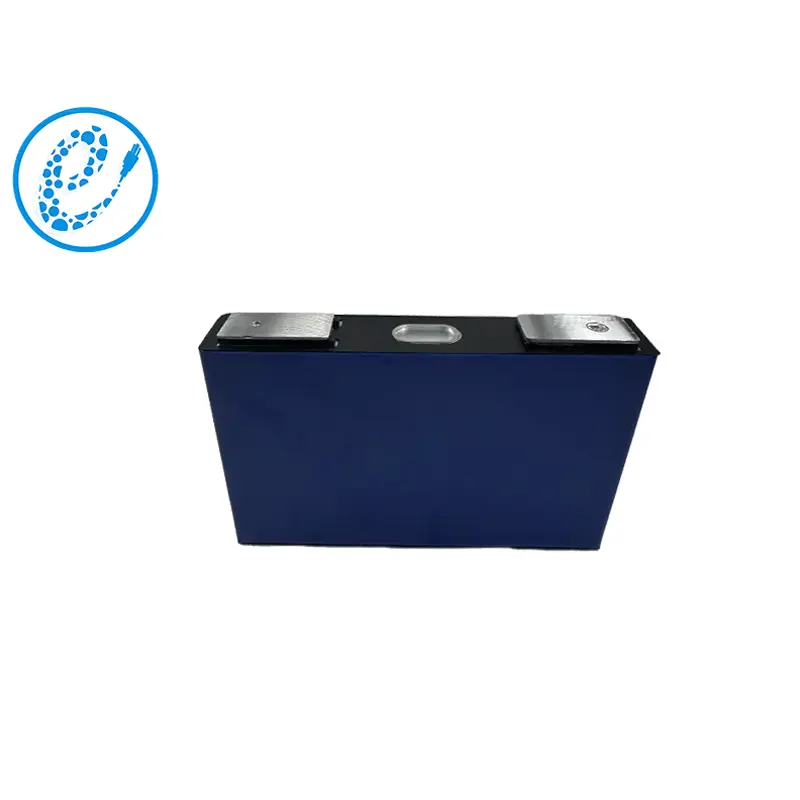

Based on AGV power system, the EcoPower C20-NCM50WN delivers exceptional power and efficiency. With capacity of 50Ah, this battery ensures a reliable and consistent energy supply for industrial, commercial, and residential applications.
| Item | Specification | |

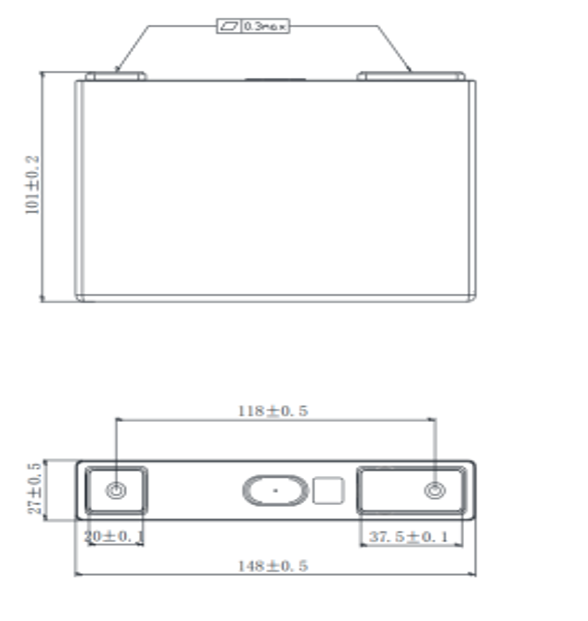

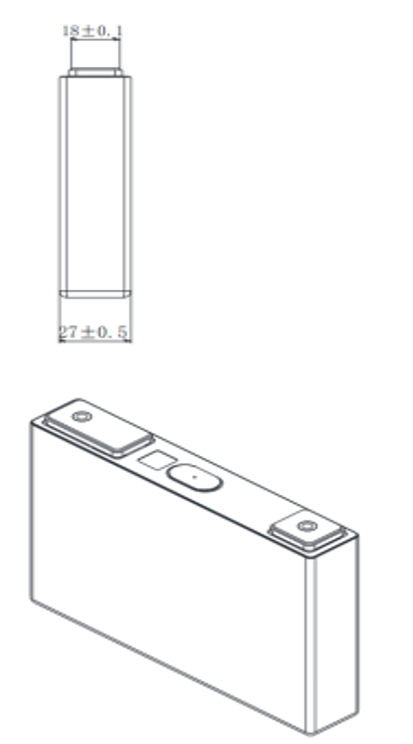

| Dimension (Welding terminal) | 27*148*101mm | |
| Dimension(NUT) | 27*148*115mm | |
| Weight | 875g±10g | |
| Min. capacity | 50Ah（1/3C)@25℃ | |
| Min. energy | 182.5Wh (1/3C) @ 25℃ | |
| Recommended SOC usage window | 10%~90% | |
| Terminal | Welding/Nut | |
| Impedance（1kHz） | ≤1.0mΩ (25℃，50%SOC) | |
| Voltage | Max. | 4.25V |
| Nominal | 3.65V (1/3C) | |
| Min. | 2.8V (T＞0℃） | |
| Current | Maximum continuous charge | 2C |
| Maximum continuous discharge | 4C | |
| Energy density | Gravimetric | 208Wh/kg |
| Volumetric | 452Wh/L | |
| Temp. Condition | Operation (Charge) | -20~55℃ |
| Operation (Discharge) | -30~55℃ | |
| Cycle Life | 1C/1C, 100% DOD 25℃ | 2000 cycles |
| Abuse test | Overcharge, Over-discharge, Short, Heat | GB/T 31485-2015 |
