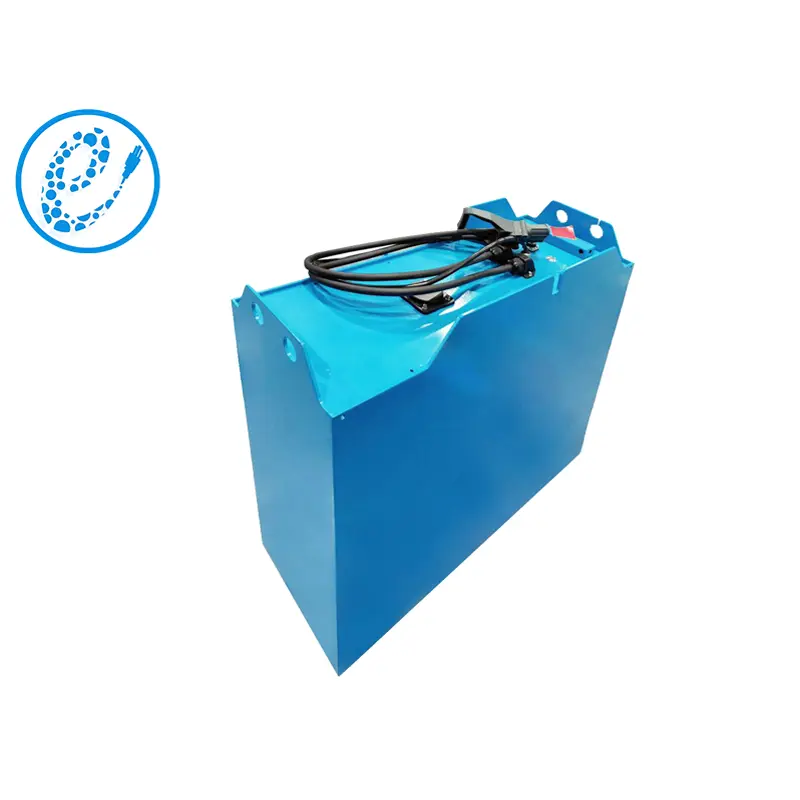

PC16XXXX-25.6V206A（206AH1P8S）forklift battery pack with a energyof 5.273kWh, providing stable and consistent power output, ensuring optimal efficiency and functionality in demanding scenarios.
Safety is paramount in every battery we produce, and this forklift battery cell pack is no exception. Equipped with advanced battery management systems and robust protection mechanisms, it guarantees reliable operation while mitigating the risk of overcharging, overheating, and other potential hazards.
| Item | Parameters | |
| PC16XXXX-25.6V206A（206AH1P8S） Battery Pack | Nominal Voltage | 25.6V |
| Rated Capacity（@ 20±5℃ 0.3C） | 206Ah | |
| Nominal Energy（@ 20±5℃ 0.3C/0.3C100%DOD） | ≈5.273kWh | |
| Maximal Continuous Charging Current | 100A | |
| Maximal Continuous Discharging Current | 160A | |
| Maximum pulse discharge current（≤5s） | 300A | |
| Battery Configuration | 8 series of 3.2V206Ah cell | |
| Battery Operating Voltage Range | 20～29.2V | |
| Operating Temperature Range(Charge) | 0～55℃ | |
| Operating Temperature Range(Discharge) | -20～60℃ | |
| Recommended Operating Range of SOC | 20%～100% | |
| SOC Requirement for long period idle and storage | ≈30% SOC | |
| Dimension | ≈550mm*195mm*520mm(W*D*H) | |
| Weight | ≈66kg | |
| Communication methods | RS485 | |
