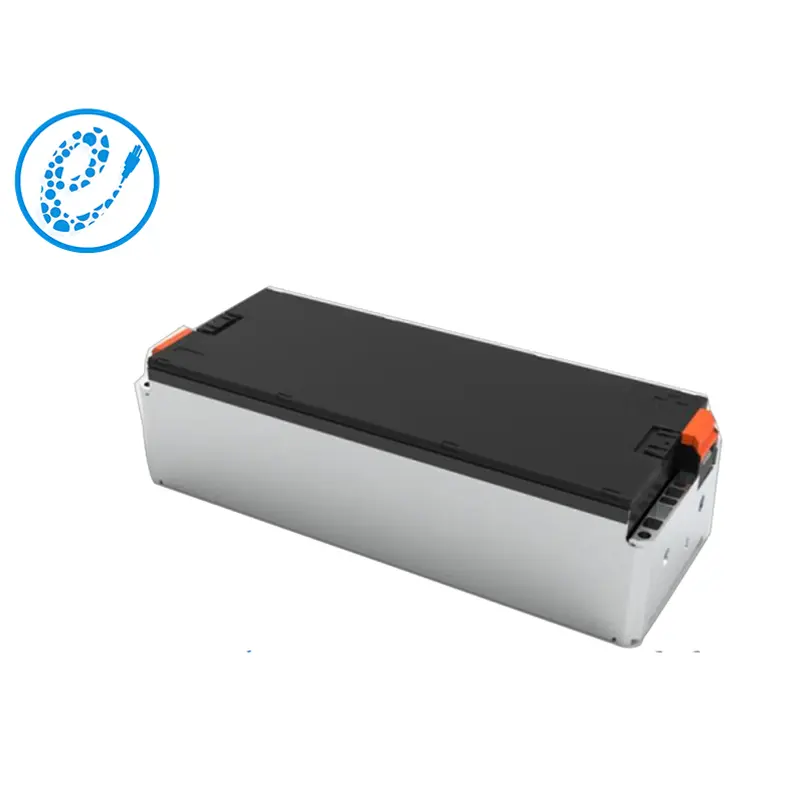

The MC1623-14.4V150A-(NCM50AH3P4S) has a rated capacity of 150Ah, a nominal voltage of 14.4V and a 3P4S connection. Browse our product pages for an in-depth look at the technical specifications, features and benefits of the MC1623-14.4V50A-(NCM50AH3P4S) battery. Experience the future of sustainable energy solutions with the countless satisfied customers who have made the switch to EcoPowerBattery. We are committed to environmental practices and customer satisfaction and strive to lead the world to a greener, more energy efficient path.
| No. | Items | MC1623-14.4V150A | Note | |
| 50Ah3P4S | ||||
| 1 | Nominal voltage(V) | 14.4 | ||
| 2 | Operating voltage(V) | min | 11.2 | |
| 3 | max | 16.8 | ||
| 4 | Nominal capacity(Ah) | 150 | 25°C | |
| 5 | Nominal energy（KWh ） | 2.16 | 25°C | |
| 6 | Cell Configuration | 3P4S | ||
| 7 | Module weight（Kg） | 11.5 | ||
| 8 | Maximum continuous charge current（A） | ≤150A | ||
| 9 | Maximum continuous discharge current（A） | ≤150 A | ||
| 10 | Maximum pulse discharge current（≤10s）（A） | ≤300A | ||
| 11 | SOC operating range（%） | 5~100 | ||
| 12 | Insulation requirements(MΩ) | ≥100 | ||
| 13 | Module cooling method | Natural cooling | ||
| 14 | Module heating film | NO | ||
| 15 | Shipping capacity (SOC) | ≈30% | SOC is consistency in the same batch | |
| 16 | Dimension L （mm） | 356.7 | ||
| Dimension B （mm） | 151.2 | |||
| Dimension H （mm） | 111 | |||
