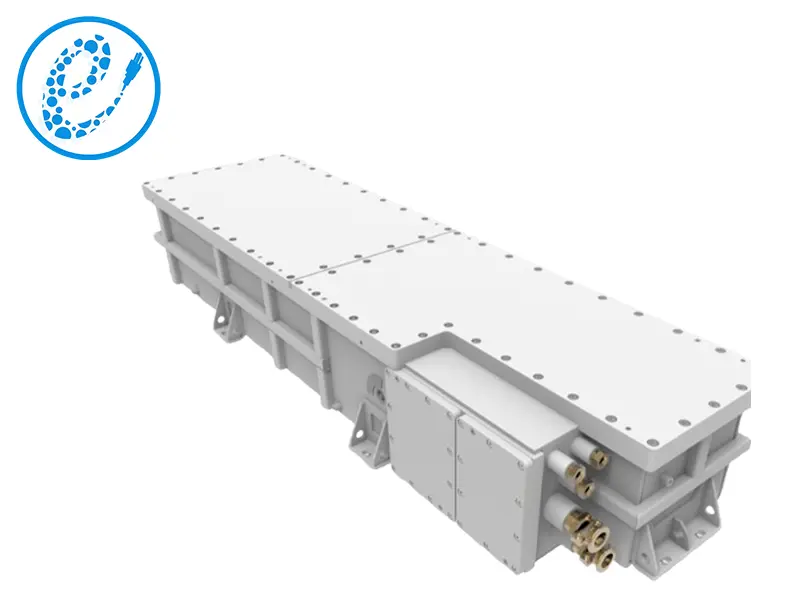

Flame-proof Lithium-ion Battery Power Supply For Mining
| No. | Items | EP-LFP230Ah STANDARD PACK | ||||
| 230AH1P50S | 230AH1P100S | 230AH1P100S | 230AH1P40S | |||
| Type-A | Type-B | Type-C | Type-D | |||
| 1 | Nominal voltage(V) | 160 | 320 | 320 | 128 | |
| 4 | Nominal capacity(Ah) | 230 | 230 | 230 | 230 | |
| 5 | Nominal energy（KWh ） | 36.8 | 73.6 | 73.6 | 29.44 | |
| 6 | Cell Configuration | 1P50S | 1P100S | 1P100S | 1P40S | |
| 7 | Continuous charge current（A） | 115A | 115A | 115A | 115A | |
| 8 | Continuous discharge current（A） | 180A | 230A | 230A | 180A | |
| 9 | Weight | 455kg | 900kg | 1250kg | 455kg | |
| 10 | Temp. Condition | Operation (Charge) | 0~55°C | 0~55°C | 0~55°C | 0~55°C |
| Operation (Discharge) | -20~60°C | -20~60°C | -20~60°C | -20~60°C | ||
| 11 | Dimension（mm） | ≤1444*671*290 | ≤1343*672*572 | ≤1924*1050*361 | ≤1744*489*290 | |
