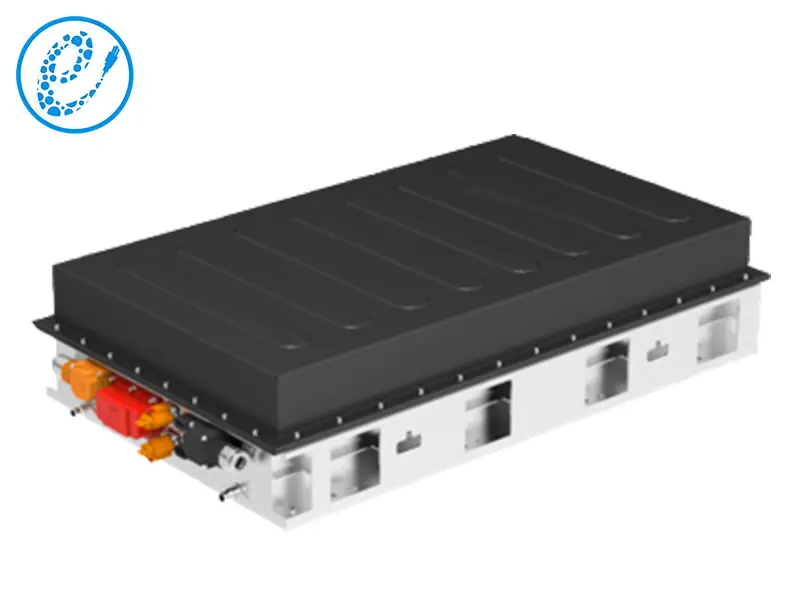

The PS13XX02-288V96Ah (96AH1P90S) TC Pack is a durable lithium-ion battery designed for EV mining trucks and construction machinery. With 288V voltage and 96Ah capacity, it ensures reliable power in tough environments. Liquid cooling enhances thermal management, while the IP68-rated design provides water and dust protection. Ideal for heavy-duty electrification, it boosts efficiency, safety, and sustainability.
_01.png "PS13XX02-288V96A(96AH1P90S)_01.png")
| Model | MiningTruck / Construction Machinery |
| PS13XX02-288V96A(96AH1P90S) | |
| Cell Capacity（Ah） | 96 |
| Cell Dimension（mm） | T48*W174*H133 |
| Configuration | 1P90S |
| Dimension（mm） | L1090*W644*H165 |
| Max. Charge Rate | 3C continuous (6C peak charge/discharge) |
| Energy Density （Wh/kg） | ＞140 |
| Cooling Strategy | Liquid-cooling / Liquid-heating |
| IP Rating | IP68 |
| Operating Temp | -30℃~+55℃ |
üHigh reliability: real-time collection of vibration road spectrum, structural strength of more than 4 times GB/T 31467.3 requirements, to meet the various types of complex operating conditions;
üHigh protection: meets IP68, IP69K, easy to deal with all kinds of water wading and washing scenes;
üHigh weather resistance: full-range thermal management system configured with liquid-cooling/heating management modes, -30~55℃ working temperature range, adaptable to different areas;
üLong cycle life: 1C charging @ 25℃, cycle life ≥ 4000 cycles.
