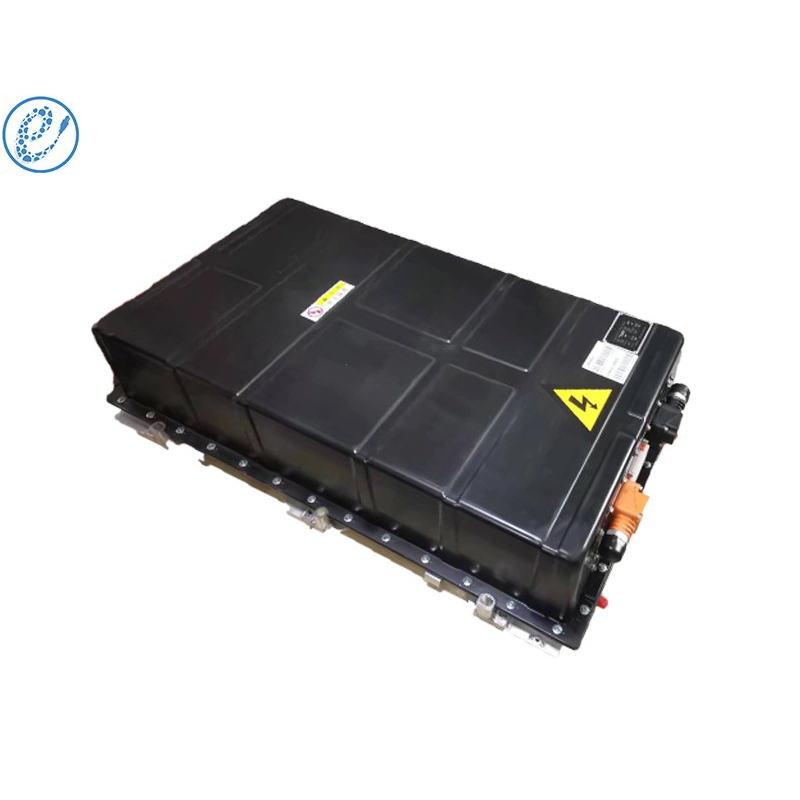

This PS131502-154.56V228A (228AH1P48S) Pack is a high-performance, high-capacity lithium iron phosphate battery pack. It offers up to 228Ah of energy storage capacity, enabling long-term energy storage solutions. With its long service life, superior safety, and excellent performance, this PS131502-154.56V228A (228AH1P48S) Pack is an ideal choice for a range of applications.
| No. | Items | EPLFP 228Ah STADARD PACK | Note | |
| PS131502-154.56V228A | ||||
| 228Ah1P48S | ||||
| A BOX | ||||
| 1 | Nominal voltage(V) | 154.56 | ||
| 2 | Operating voltage(V) | min | 124.8 | |
| 3 | max | 168 | ||
| 4 | Cell Configuration | 1P48S | ||
| 5 | Nominal energy (KWh) | 35.24 | 25±2℃, 1/3C, 100%DOD | |
| 7 | Weight (Kg) | 225 | ||
| 8 | Energy density(Wh/Kg) | ≥135 | without: High-voltage box, cable | |
| 9 | Nominal capacity(Ah) | 228 | 0.5C, 25±2℃ | |
| 11 | Maximum continuous charge current (A) | 228 | 20~45℃.SOC:0~80% | |
| 12 | Maximum continuous discharge current (A) | 228 | 15~45℃. SOC:40%100% | |
| 13 | Maximum pulse charge current (≤30s) | 342 | 25~45℃. SOC:0~80% | |
| 14 | Maximum pulse discharge current (≤30s) (A) | 684 | 20~50℃. SOC:40%一100% | |
| 15 | Shipping consistency (mv) | 30 | Voltage difference between cell<30mV | |
| 16 | Humidity range | ≤65% | ||
| 17 | Self-discharge | ＜3% | 25±2℃， 50%SOC | |
| 18 | Storage temperature(℃) | 0~45℃ | ||
| 19 | SOC operating range (%) | 20~100 | ||
| 20 | Insulation requirements(MΩ) | ≥200 | 1000V DC. High voltage output to battery module shell, at the normal temperature, and humidity | |
| 21 | Protection class | IP67 | ||
| 22 | cooling method | Liquld colding | ||
| 23 | heating method | Heating film/Liquid Heating | ||
| 24 | Shipping capacity | ≈30% | SOC is consistency in the same batch | |

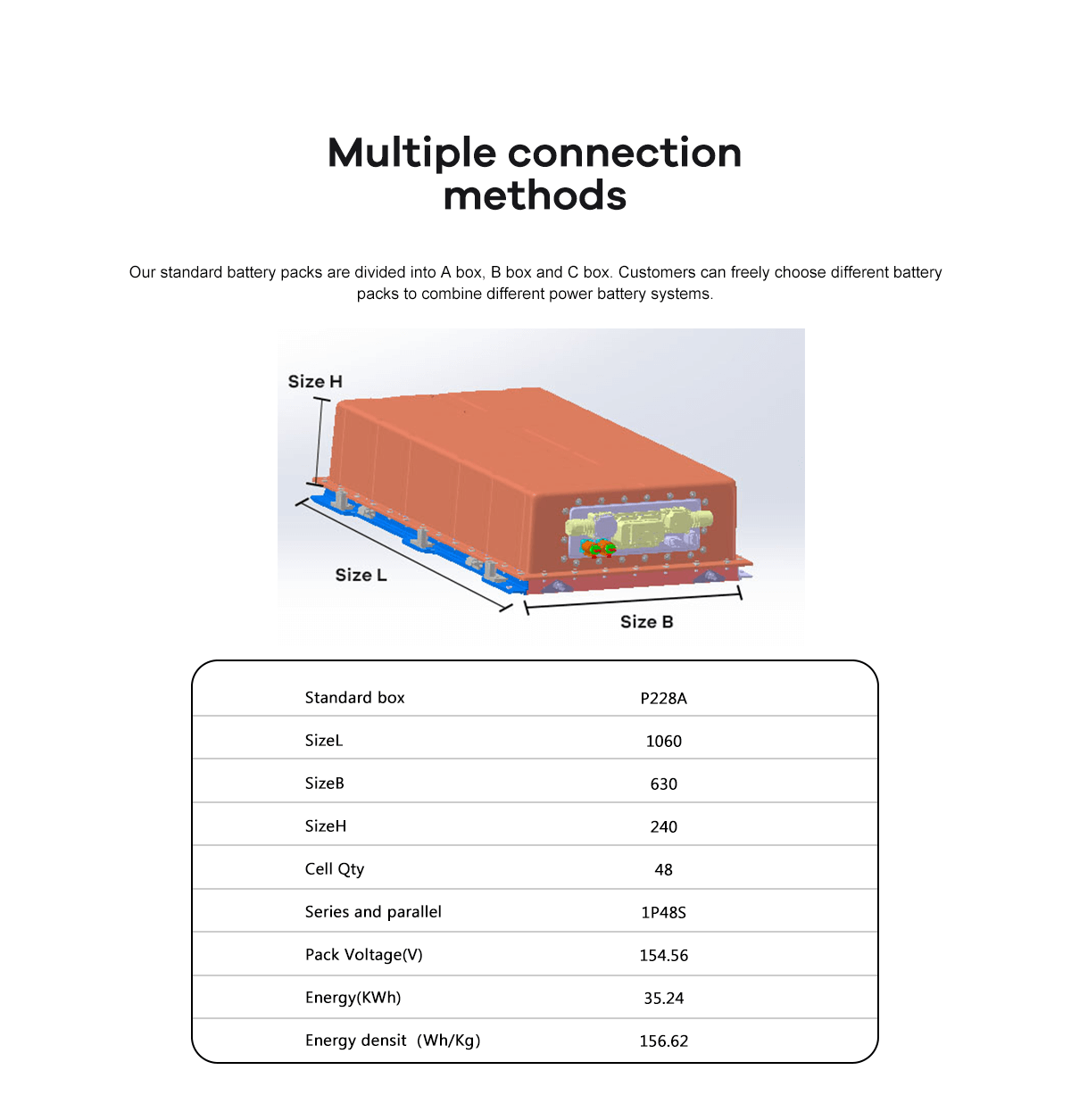

| 25 | Dimension L (mm) | 1060 | ||
| Dimension B (mm) | 630 | |||
| Dimension H (mm) | 240 | |||
