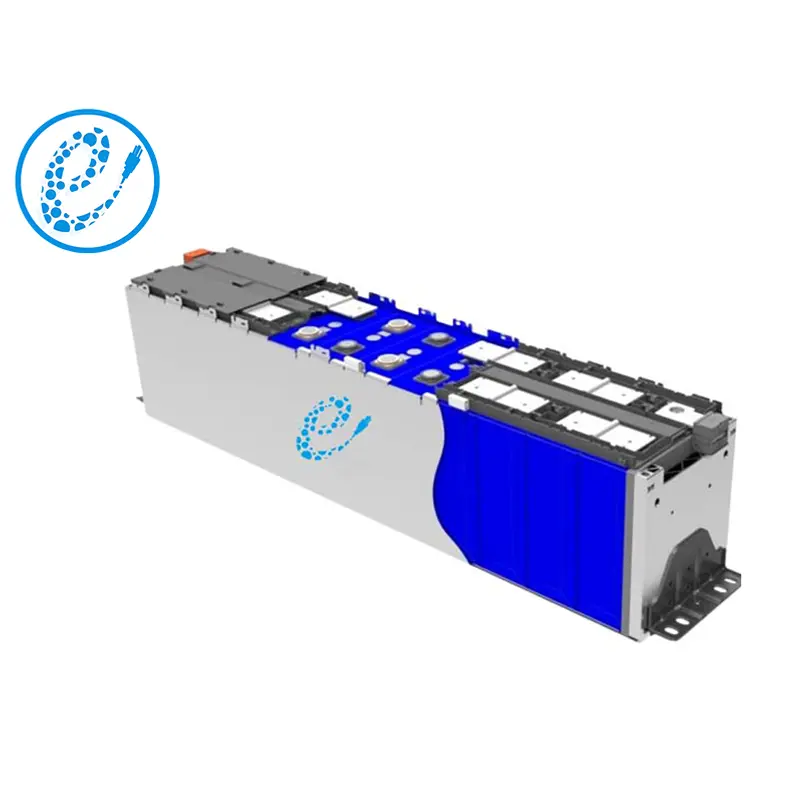

The MS0202-51.2V173A(173AH1P16S) lipo battery charger module consists of 16 cells connected in series with a rated voltage of 51.2V and a rated capacity of 173Ah. The integration of the modules improves the efficiency of the battery's use and provides stable energy for a variety of applications.
| No. | Items | EP-LFP173Ah STANDARD MODULE | Note | |||
| MS0202- 32V173A | MS0202- 38.4V173A | MS0202- 51.2V173A | ||||
| 173AH1P10S | 173AH1P12S | 173AH1P16S | ||||
| 1 | Nominal voltage(V) | 32 | 38.4 | 51.2 | ||
| 2 | Operating voltage(V) | min | 25 | 30 | 40 | T＞0℃ |
| 3 | max | 36.5 | 43.8 | 58.4 | ||
| 4 | Nominal capacity(Ah) | 173 | 1/3C，100%DOD | |||
| 5 | Nominal energy（KWh ） | 5.536 | 6.643 | 8.857 | 1/3C，100%DOD | |
| 6 | Cell Configuration | 1P10S | 1P12S | 1P16S | ||
| 7 | Maximum continuous charge current（A） | 86.5 | ||||
| 8 | Maximum continuous discharge current（A） | 173 | ||||
| 9 | Maximum pulse discharge current（≤180s）（A） | 346 | ||||
| 10 | SOC operating range（%） | 10~90 | ||||
| 11 | Insulation requirements(MΩ) | ≥20 | ||||
| 12 | Module cooling method | Natural cooling | ||||
| 13 | Module heating method | No | Or heating film | |||
| 14 | Shipping capacity (SOC) | ≈30% | SOC is consistency in the same batch | |||
| 15 | Dimension L （mm） | 447 | 530 | 695 | ||
| Dimension B （mm） | 179 | 179 | 179 | |||
| Dimension H （mm） | 220 | 220 | 220 | |||
