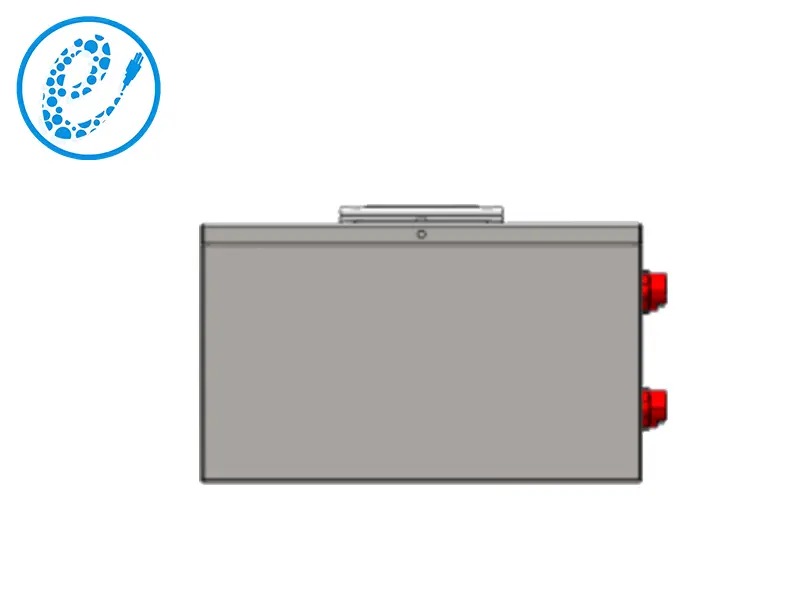

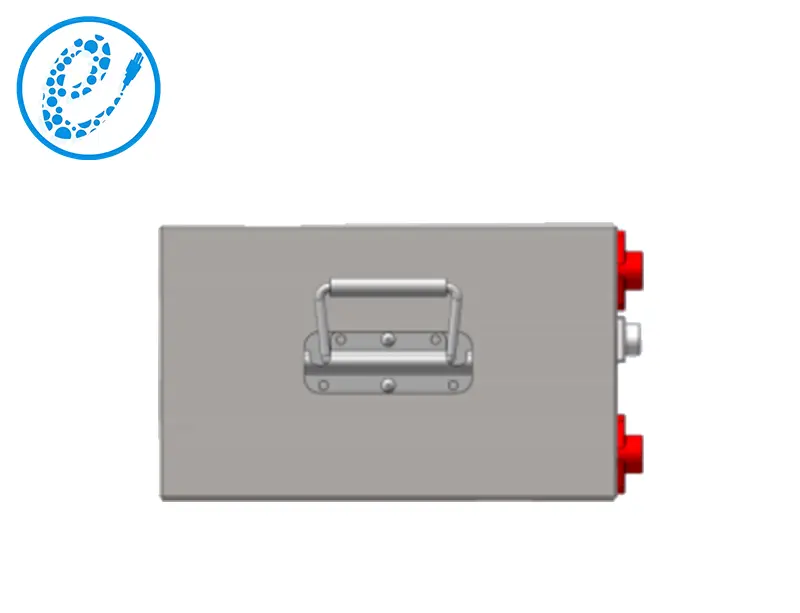

PC32XXXX-29.4V20A-(10AH2P12S) custom lithium battery pack features a 2P12S configuration with a rated voltage of 29.4V and a rated energy of 0.588kwh, which provides you with a stable and powerful energy supply.
| No. | Items | EP-LT 20Ah STADARD PACK | Note | |
| PC32XXXX-29.4V20A | ||||
| 10AH2P12S | ||||
| 1 | Nominal voltage(V) | 29.4 | ||
| 2 | Operating voltage(V) | min | 18 | |
| 3 | max | 33.6 | ||
| 4 | Group mode | 2P12S | ||
| 5 | Nominal energy（KWh ） | 0.588 | 25±2℃ | |
| 6 | Nominal capacity(Ah) | 20 | 25±2℃ | |
| 7 | Maximum continuous charge current（≤1min） | 10C | 25±2℃ | |
| 8 | Maximum continuous discharge current（≤10s） | 20C | 25±2℃ | |
| 9 | Shipping consistency（mv） | 30 | Voltage difference between cell ＜30mV | |
| 10 | SOC operating range（%） | 20~100 | ||
| 11 | Insulation requirements(MΩ) | ≥55 | 500V DC，High voltage output to battery shell, at the normal temperature and humidity | |
| 12 | cooling method | Liquid cooling | ||
| 13 | Shipping capacity | ≈30% | SOC is consistency in the same batch | |
| 14 | Dimension L (mm) | 300 | ||
| Dimension B (mm) | 180 | |||
| Dimension H (mm) | 176 | |||
