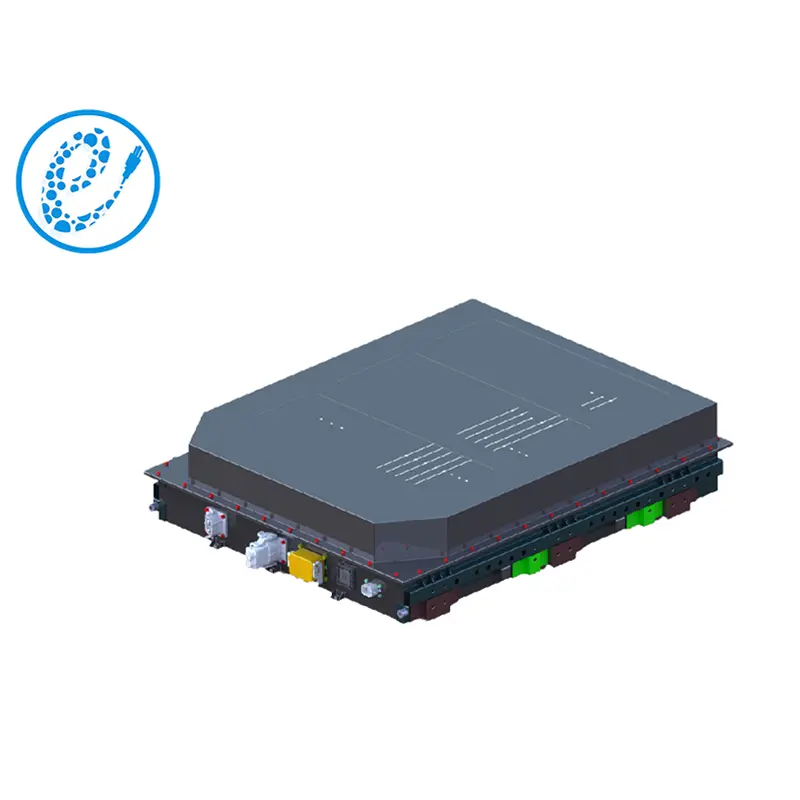

PS050605-309.12V125A(125AH1P96S)

PS050605-309.12V125A(125AH1P96S)utilizes a 1P96S configuration, consisting of one parallel cell group (1P) and 96 series-connected cells (96S). This configuration ensures a harmonious balance of power, safety, and performance, guaranteeing a reliable energy supply, which is a battery box specially developed for mini-van and medium-sized van

The PS050605-309.12V125A(125AH1P96S)battery is engineered to cater to a diverse range of applications, from automotive systems, backup power solutions, and marine equipment to remote monitoring devices, and more. Its versatility makes it a go-to choice for various consumer and industrial needs.




No.ItemsEP-PS050605-LFP125Ah   STADARD PACKNote
309.12V125AH1P96S312.34V125AH1P97S315.56V125AH1P98S318.78V125AH1P99S
1Nominal voltage(V)309.12312.34315.56318.78
2Operating   voltage(V)min240242.5245247.5
3max350.4354.05357.7361.35
4

Cell Configuration

1P96S1P97S1P98S1P99S
5Nominal energy(KWh )38.6439.04239.44539.84725±2℃
6Nominal capacity(Ah)12525±2℃
7Maximum continuous   charge current(A)12525±2℃
8Maximum continuous   discharge current(A)12525±2℃
9Shipping consistency(mv)30Voltage difference between cell <30mV
10SOC operating range(%)20~100
11Insulation   requirements(MΩ)≥20500V DC,High voltage output to battery    shell, at the normal temperature and humidity
12cooling methodNatural cooling
13Shipping capacity≈30%SOC is consistency in the same   batch
14Dimension L (mm)1143
Dimension B (mm)890
Dimension H (mm)210


The battery box is currently assembled with 125Ah cells, which is a battery box specially developed for mini-van and medium-sized van.
