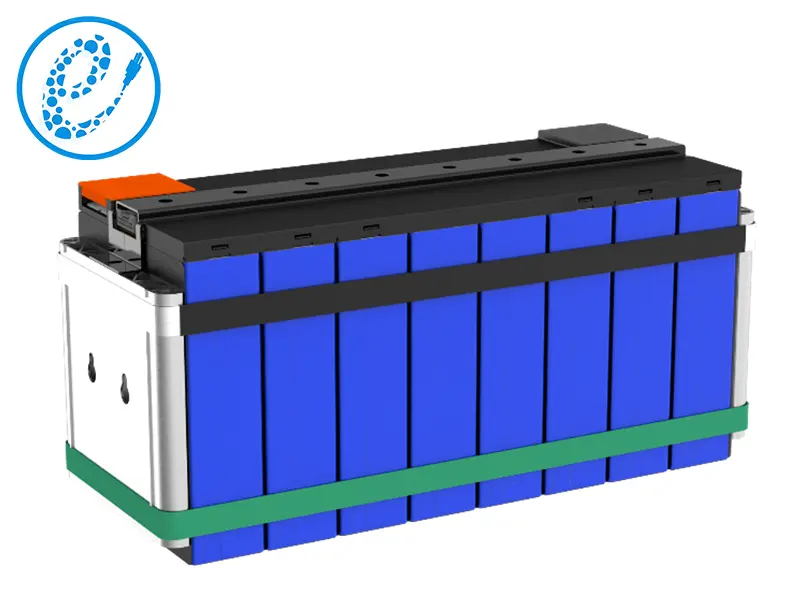

The EcoPowerBattery MS1010-25.6V277A-(277AH1P8S) uses a 25.6V, 277Ah design with the latest Li-Ion battery technology to ensure that it is capable of rapid recharging, higher energy retention and longer cycle life.
In addition, the MS1010-25.6V277A-(277AH1P8S) case is constructed with high quality materials and components to withstand the rigours of a harsh environment.
.png "2_(1).png")
| Items | MS1010-277A | Note | |
| 25.6V277A-1P8S | |||
| Nominal voltage(V) | 25.6 | ||
| Operating voltage(V) | min | 20 | |
| max | 29.2 | ||
| Nominal capacity(Ah) | 277 | 25±2℃ | |
| Nominal energy（KWh） | 7.091 | 25±2℃ | |
| Cell Configuration | 1P8S | ||
| Maximum continuous charge current（A） | 277 | 25±2℃ | |
| Maximum continuous discharge current（A） | 277 | 25±2℃ | |
| Maximum pulse discharge current（≤30s)(A） | 554 | 25±2℃ | |
| SOC operating range（%） | 20~100 | ||
| Insulation requirements(MΩ) | ≥20 | 500V DC，High voltage output to battery module shell, at the normal temperature and humidity | |
| Module cooling method | Natural cooling | ||
| Module heating film | NO | ||
| Shipping capacity (SOC) | ≈30% | SOC is consistency in the same batch | |
| Dimension L （mm） | 612.7 | ||
| Dimension B （mm） | 177.4 | ||
| Dimension H （mm） | 226.7 | ||
