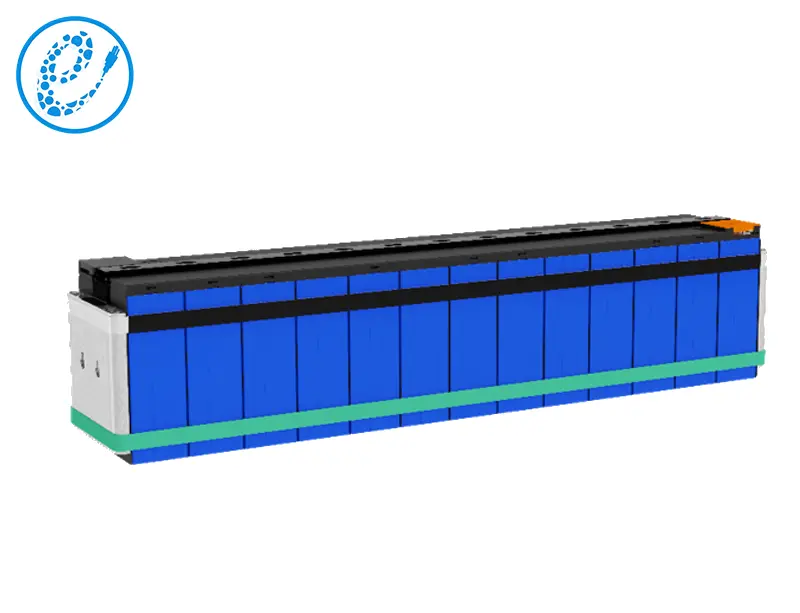

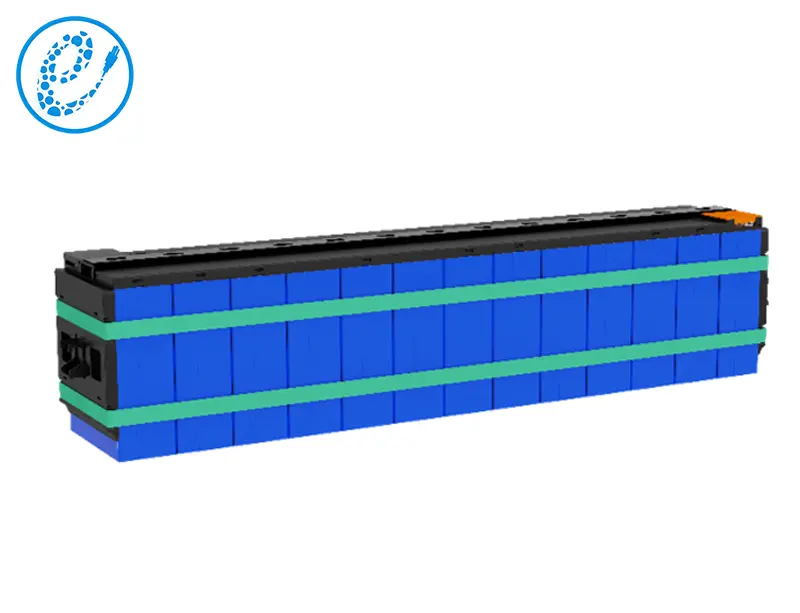

The MS0302-41.6V280A-(280AH1P13S)-ZD module represents a pinnacle of energy storage innovation. Operating at 41.6V with a formidable 280A maximum current output, it ensures unwavering power supply. Its generous 280AH capacity is tailored to meet the demands of prolonged operations. Embracing a compact 1P13S configuration, it optimizes space utilization while maintaining peak efficiency.
.png "280AH1P13S_(1).png")
| No. | Items | EP-LFP280Ah STANDARD MODULE | Note | |
| MS0302-41.6V280A | ||||
| 280AH1P13S | ||||
| 1 | Nominal voltage(V) | 41.6 | ||
| 2 | Operating voltage(V) | min | 32.5 | |
| 3 | max | 47.45 | ||
| 4 | Nominal capacity(Ah) | 280 | ||
| 5 | Nominal energy（KWh ） | 11.648 | ||
| 6 | Cell Configuration | 1P13S | ||
| 7 | Maximum continuous charge current（A） | 0.5P | ||
| 8 | Maximum continuous discharge current（A） | 0.5P | ||
| 9 | SOC operating range（%） | 10~90 | ||
| 10 | Insulation requirements(MΩ) | ≥20 | ||
| 11 | Module cooling method | Natural cooling | ||
| 12 | Module heating method | No | Or heating film | |
| 13 | Shipping capacity (SOC) | ≈30% | SOC is consistency in the same batch | |
| 14 | Dimension （Aluminium Profile End Plate） | 979×176×227mm | L*B*H | |
| Dimension（Assembly End Plate） | 1004×176×227mm | |||
.png "280AH1P13S_(3).png")
.png "280AH1P13S_(4).png")
.png "280AH1P13S_(5).png")

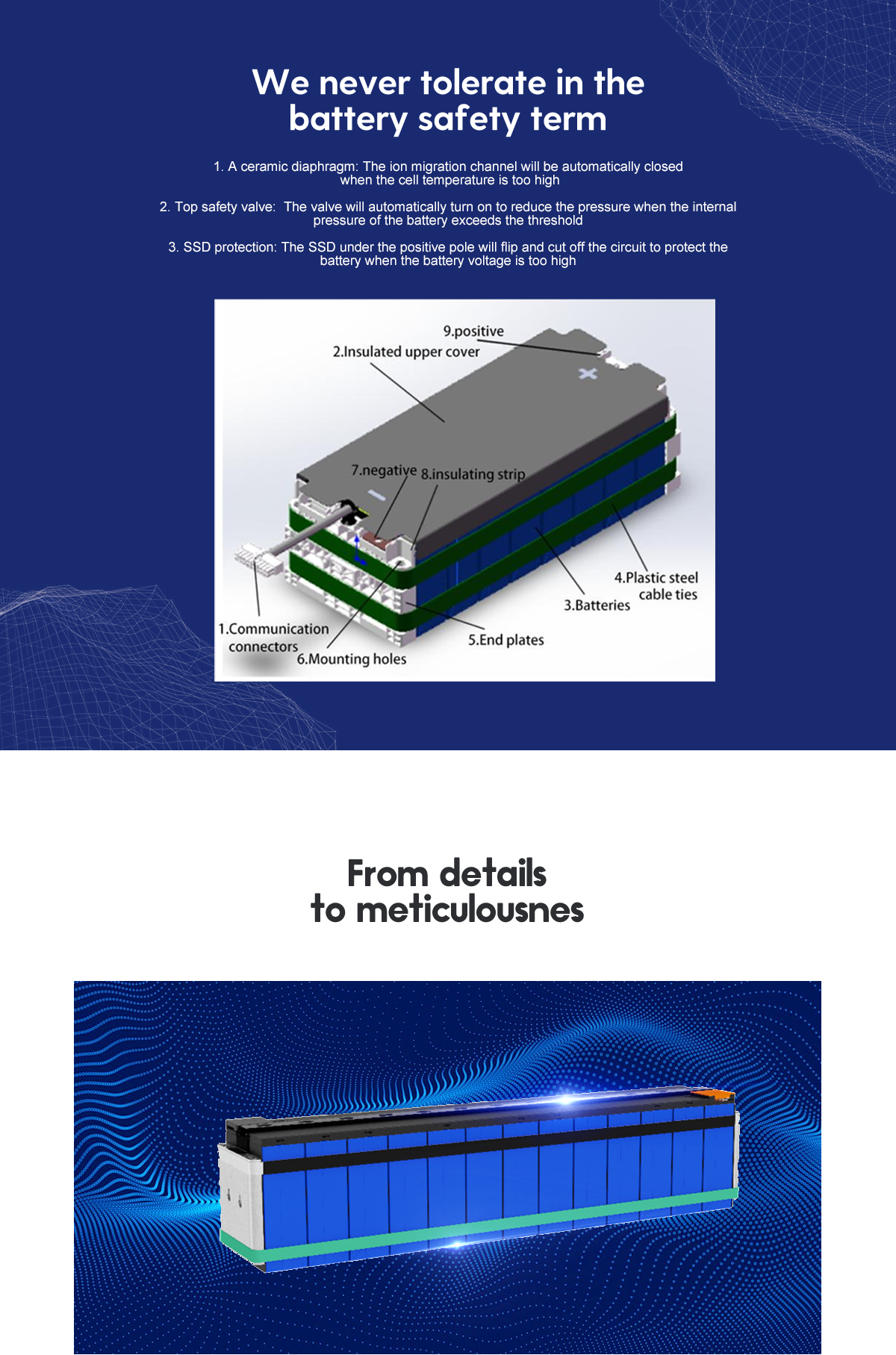

.png "280AH1P13S_(6).png")
.png "280AH1P13S_(7).png")
.png "280AH1P13S_(8).png")
.png "280AH1P13S_(9).png")
