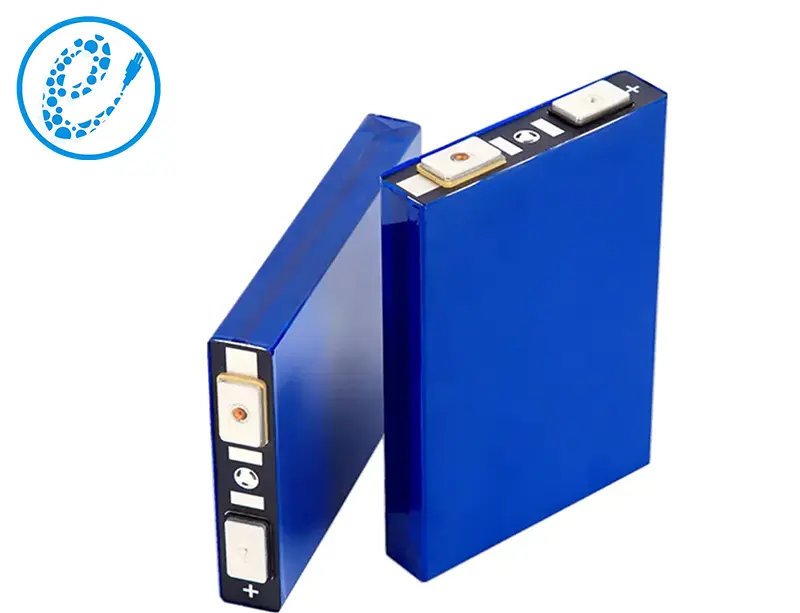

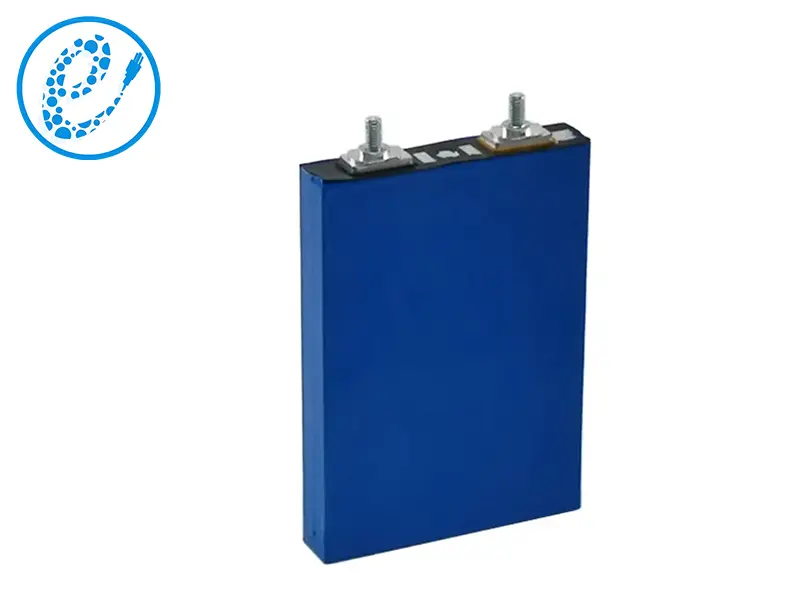

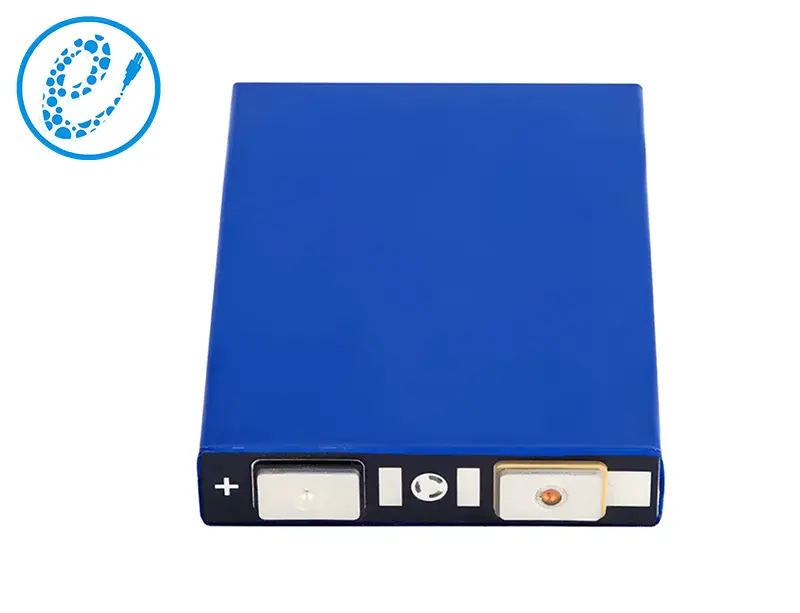

The EcoPower C20-LFP30WN is a 30Ah capacity lithium iron phosphate cell for use in electric commercial vehicles, electric passenger vehicles, and commercial and industrial energy storage.
The C20-LFP30WN lifepo4 solar battery has a cycle life of up to 3,000 cycles at 100% DOD. It provides you with a long-lasting energy solution that minimises maintenance and replacement costs.
| Item | Specification | |

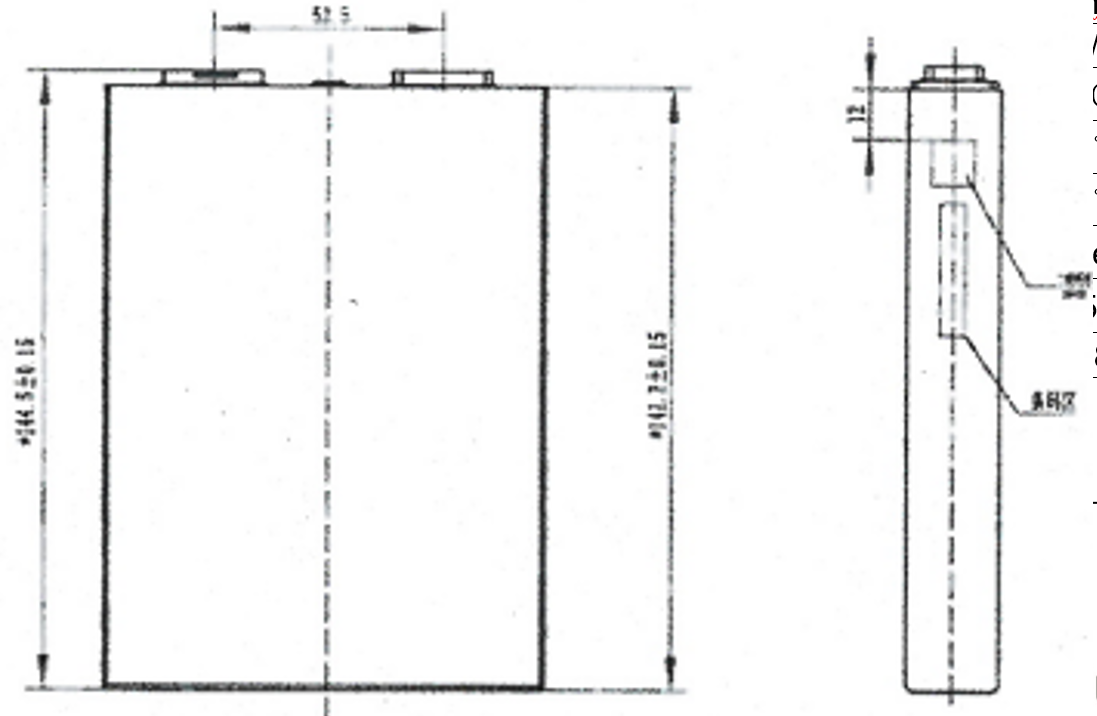

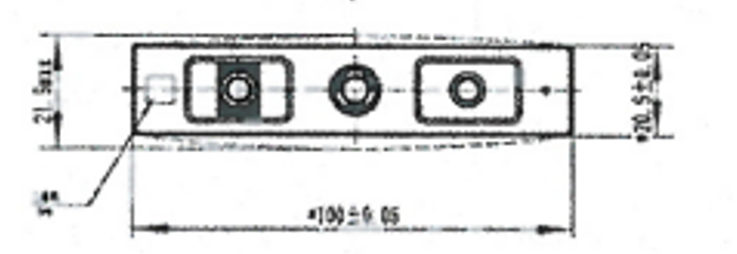

| Dimension | 20.5mm*100mm*140mm | |
| Weight | 640g±10 g | |
| Min. capacity | 30Ah (1C) @ 25℃ | |
| Min. energy | 96Wh (1C) @ 25℃ | |
| Recommended SOC usage window | 10 ~ 90% | |
| Terminal | Welding Terminal | |
| Impedance（1kHz） | ≤3mΩ | |
| Voltage | Max. | 3.65V |
| Nominal | 3.2V | |
| Min. | 2.0V | |
| Current | Maximum continuous charge | 2C |
| Maximum continuous discharge | 1.5C | |
| Energy density | Gravimetric | 150Wh/kg |
| Volumetric | 334Wh/L | |
| Temp. Condition | Operation (Charge) | 0~ 55℃ |
| Operation (Discharge) | -30 ~ 55℃ | |
| Storage | 10 ~ 35℃ | |
| Cycle Life | 1C/1C, 100% DOD 25℃ | 3000 cycles |
| Abuse test | Overcharge, Over-discharge, Short, Heat | GB/T 31485-2015 |
