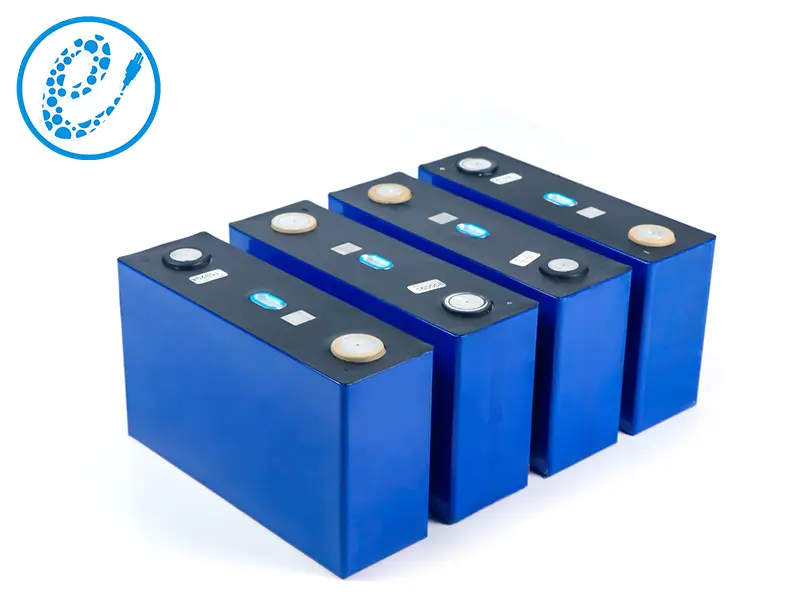

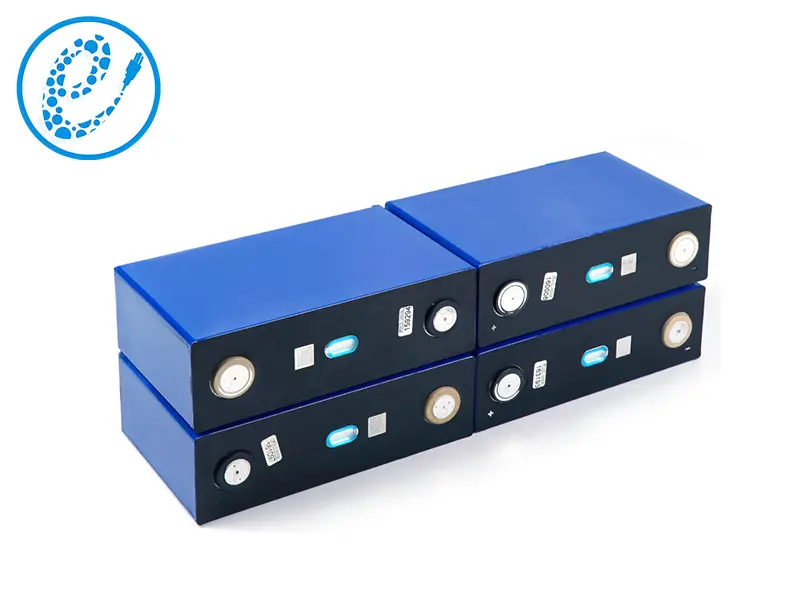

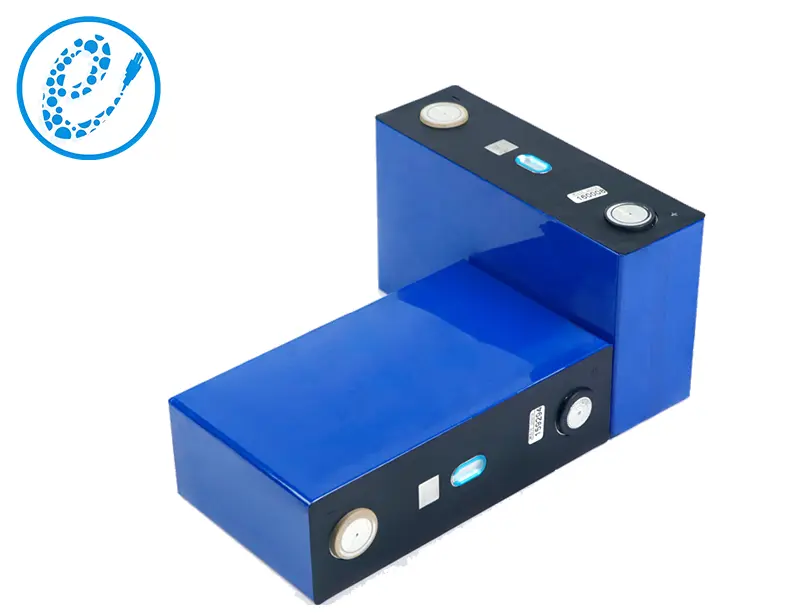

C3-LFP166W

The EcoPower C3-LFP166W has a capacity of 166Ah, a weight energy density of 186.56 Wh/kg, and can reach 2000 cycles at 100% DOD. This LFP cell provides stable performance for both power vehicles and energy storage.


ItemSpecification

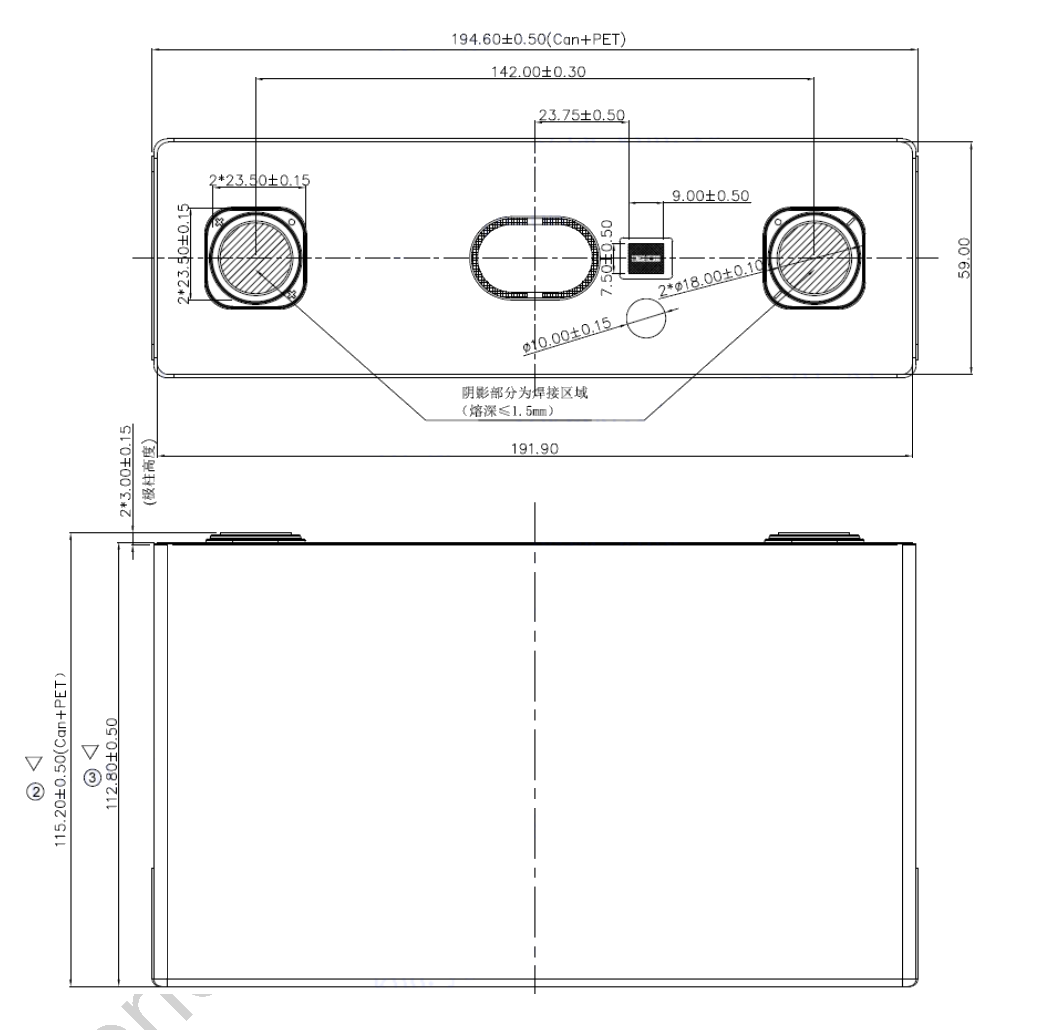

Dimension194.6mm*60.7mm*115.2mm
Weight2.865±0.03kg
Min. capacity166Ah (1C) @ 25℃
Min. energy534.52Wh (1C) @ 25℃
Recommended SOC usage window10   ~ 90%
TerminalWelding Terminal
Impedance(1kHz)<0.4mΩ (AC)
VoltageMax.3.65V
Nominal3.22V
Min.2.0V (T≤0℃)
    2.5V (T>-0℃)
CurrentStandard   discharge current166A
Maximum discharge current332A
Energy densityGravimetric186.56Wh/kg
Volumetric392.8Wh/L
Temp. ConditionOperation   (Charge)-20~ 55℃
Operation (Discharge)-30 ~ 55℃
Storage-40 ~ 60℃
Cycle Life1C/1C,   100% DOD 25℃2000   cycles
Abuse testOvercharge,   Over-discharge, Short, HeatGB/T   31485-2015
