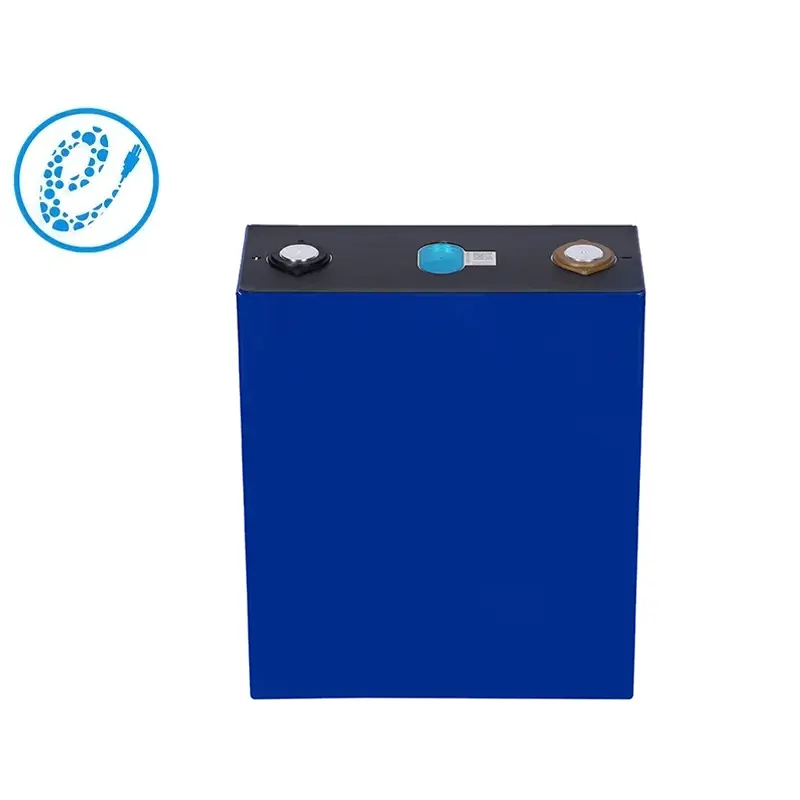

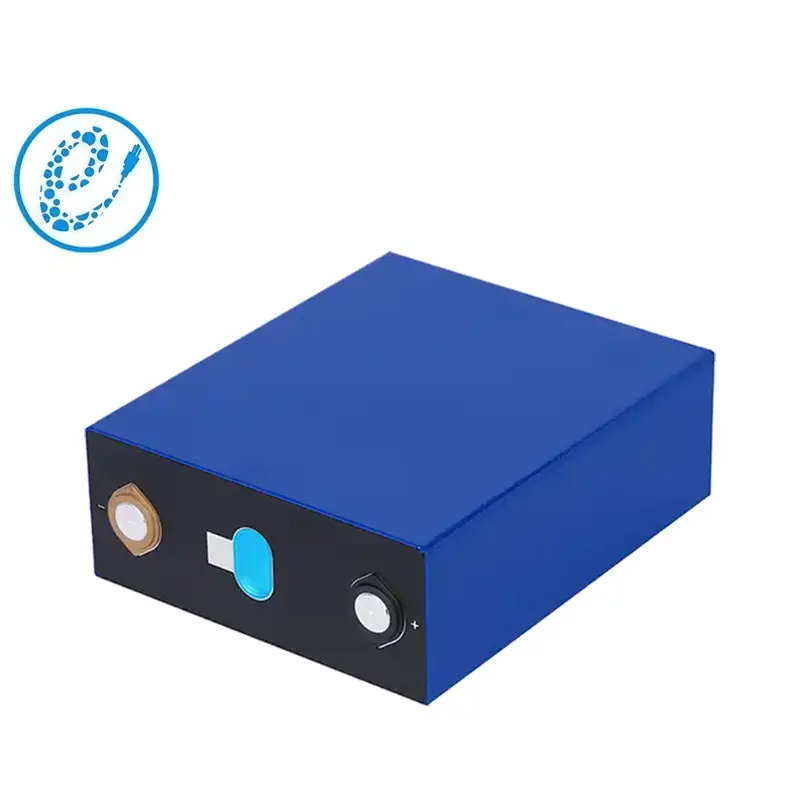

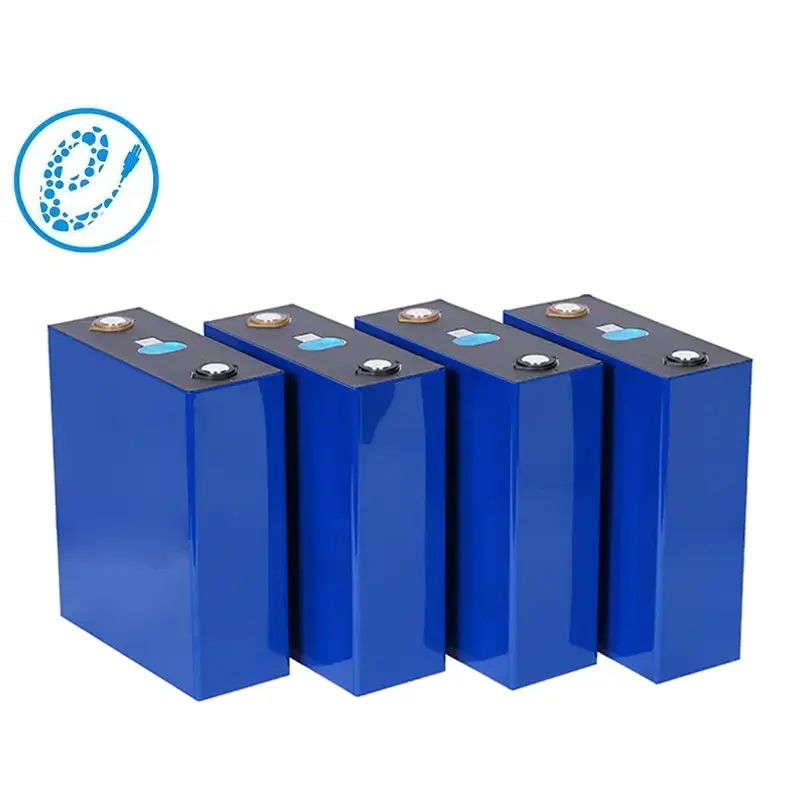

C2-LFP314W

The EcoPower C2-LFP314W has large capacity, providing you with an abundant and continuous energy supply. Whether you're powering a large-scale industrial operation, a commercial facility, or a residential complex, this high-capacity battery ensures that you have a constant supply of energy.

With the C2-LFP314W deep cycle LFP battery cells as your energy storage solution, you gain the freedom to control your power supply. Integrate renewable energy sources like solar panels and wind turbines, store excess energy during peak production, and utilize it when needed. Take charge of your energy destiny and reduce reliance on conventional energy grids.




ItemSpecification

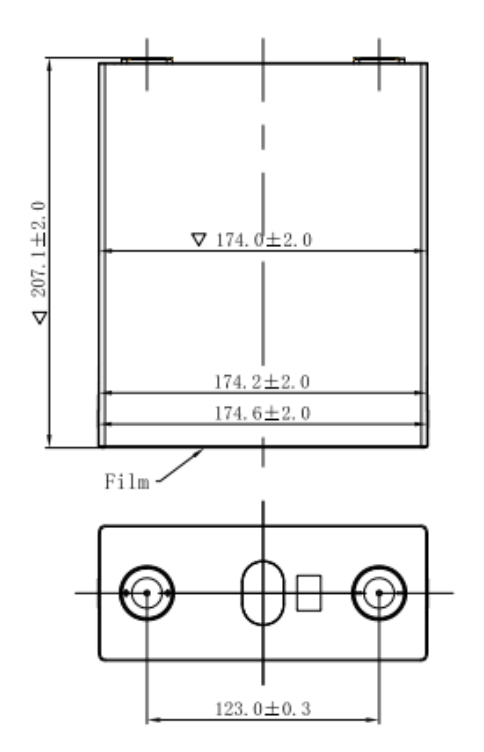

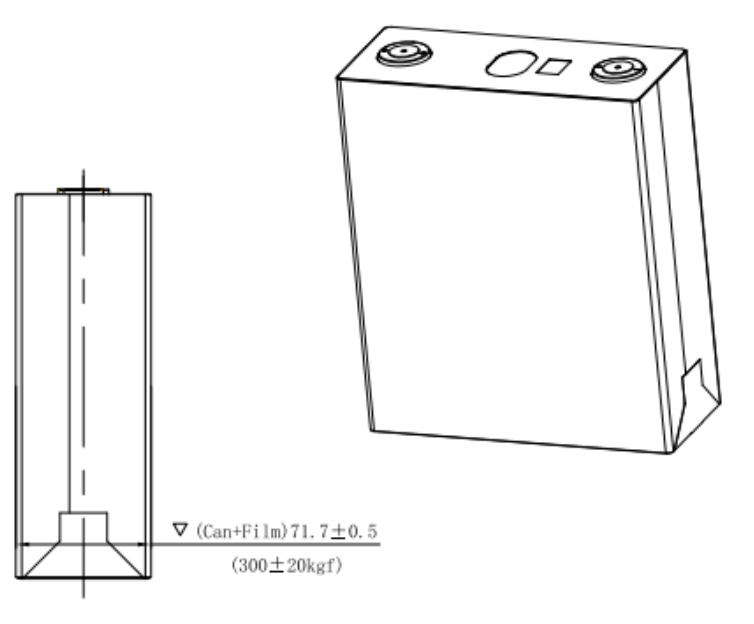

Dimension174.6mm*71.7mm*207.1mm
Weight5.69±0.28kg
Min.   capacity314Ah (1C) @ 25℃
Min.   energy1004.8Wh (1C) @ 25℃
Recommended SOC usage window10   ~ 90%
TerminalWelding Terminal
Impedance(1kHz)≤0.2mΩ
VoltageMax.3.65V
Nominal3.2V
Min.2.5V   T>0℃
    2.0V T≤0℃
CurrentStandard   charging power528.8W @ 25℃
Standard discharging power502.4W @ 25℃
Energy densityGravimetric176.59Wh/kg
Volumetric387.55Wh/L
Temp. ConditionOperation   (Charge)0~ 55℃
Operation (Discharge)-10 ~ 55℃
Cycle Life1C/1C,   100% DOD 25℃8000   cycles
Abuse testOvercharge,   Over-discharge, Short, HeatGB/T   31485-2015
