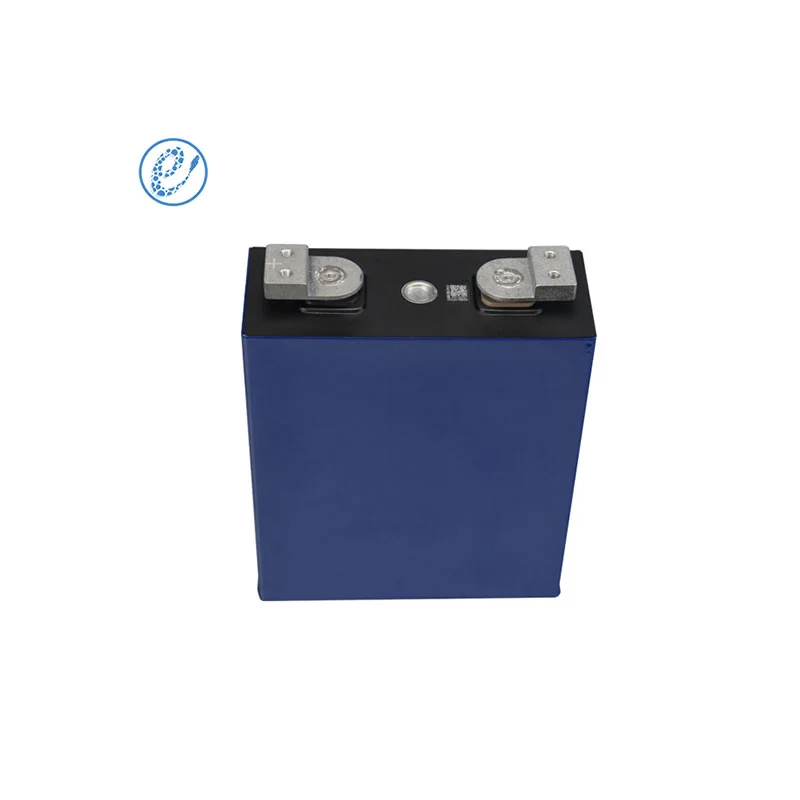

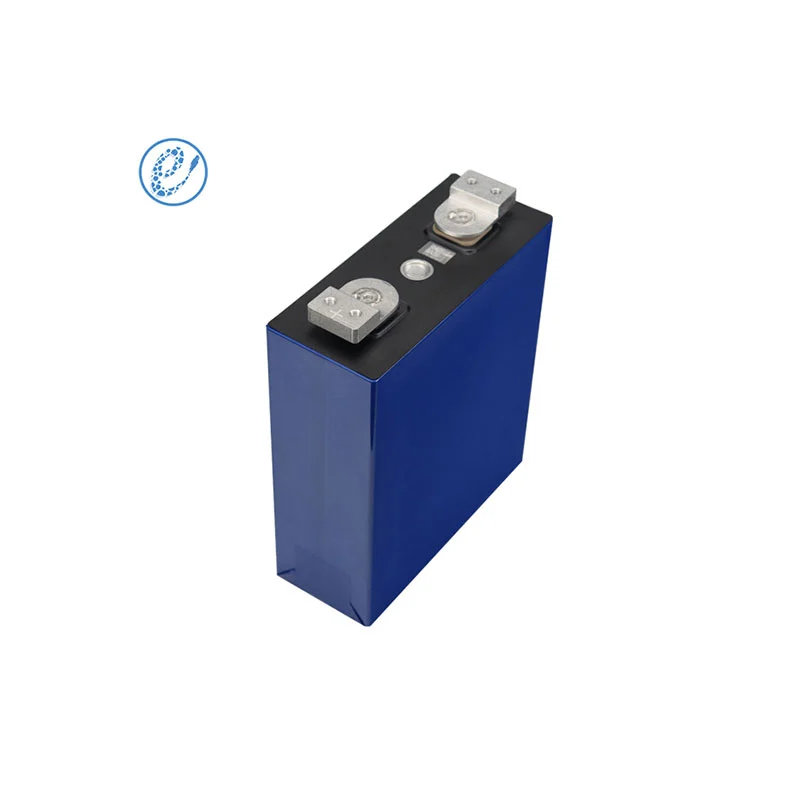

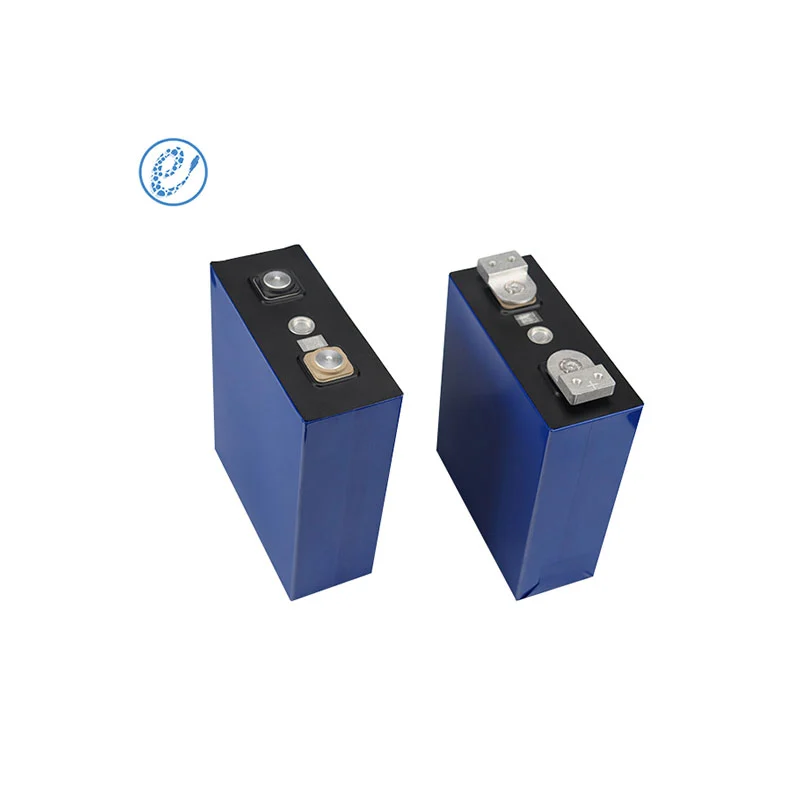

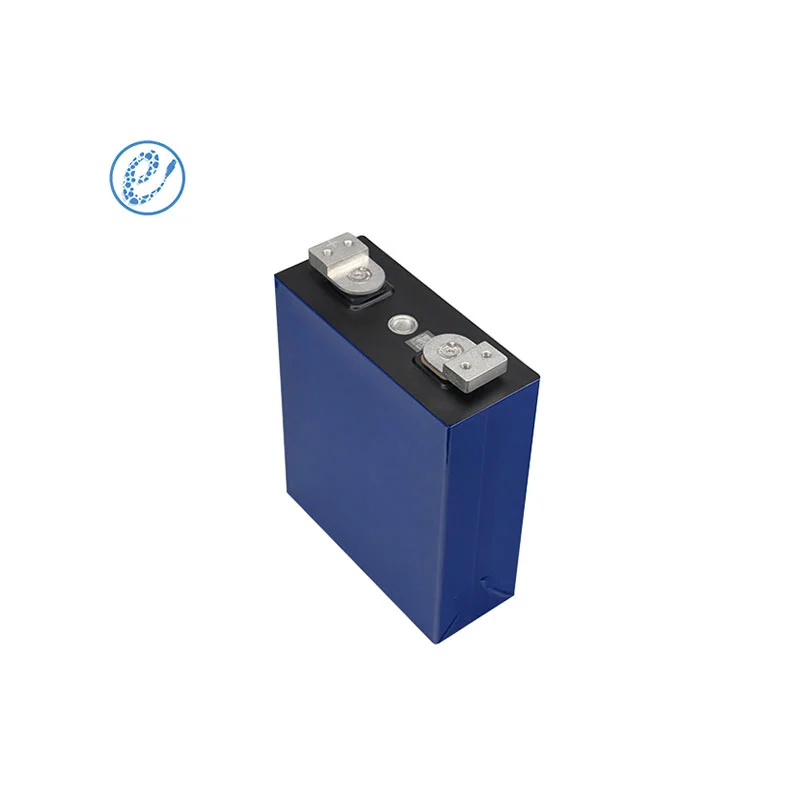

The C2-LFP302WS LFP lifepo4 battery is a high-capacity battery that can provide long-lasting, reliable power to a wide range of applications. It's also lightweight, making it easy to install and transport. It has a wide operating temperature range and is highly efficient, with a long cycle life and low self-discharge rate.
| Item | Specification | |

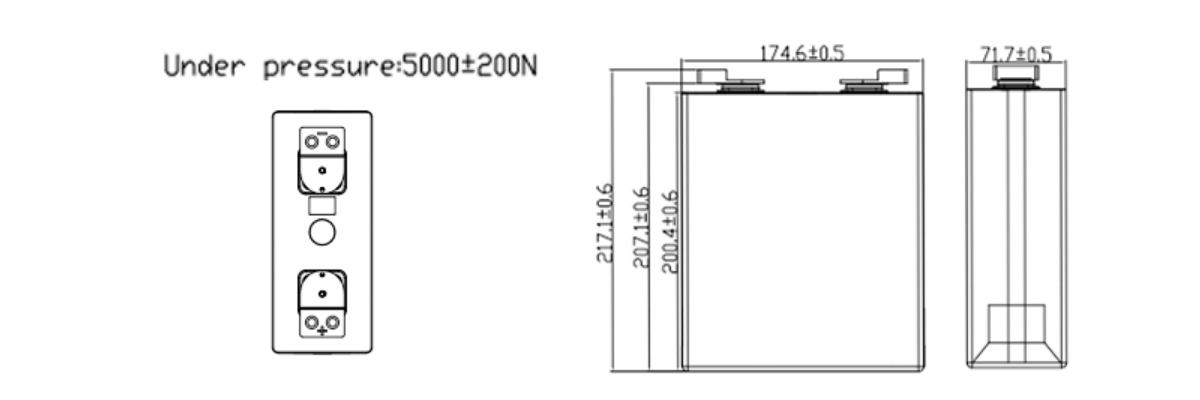

| Dimension (Welding terminal) | 71.7mm *174.6mm *207.1mm | |
| Dimension (Screw terminal) | 71.7mm *174.6mm *217.1mm | |
| Weight | 5.5±0.275kg | |
| Min. capacity | 302Ah (1/3C)@25℃ 100DOD% | |
| Min. energy | 972.44Wh (1/3C)@25℃ 100DOD% | |
| SOC window | 10 ~90% | |

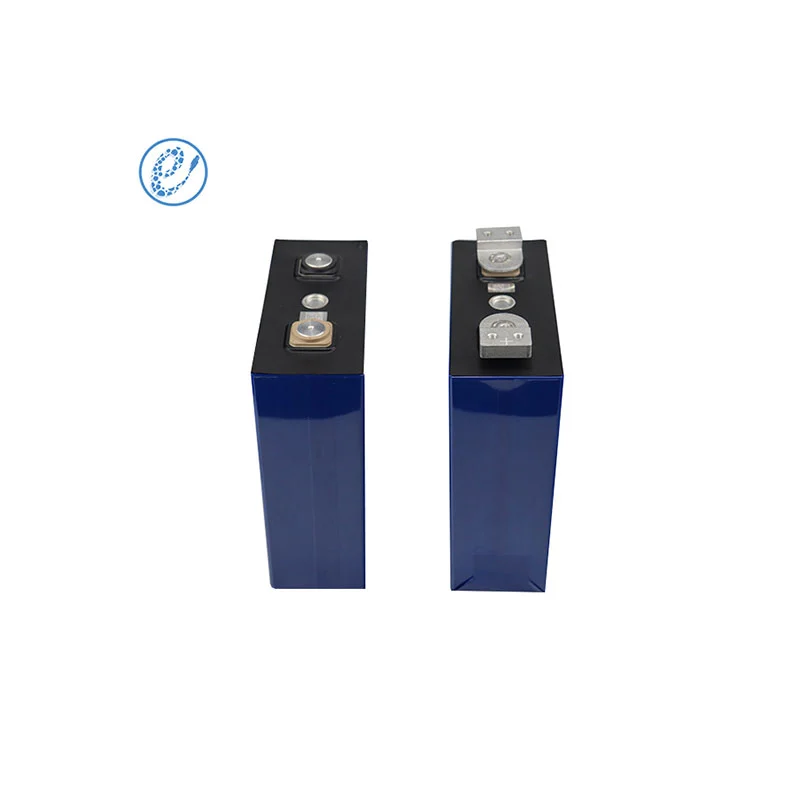

| Terminal | Welding/Screw terminal | |
| Impedance (1kHz) | ≤0.2mΩ | |
| Voltage | Max. | 3.65V |
| Nominal | 3.22V | |
| Min. | 2.5V(T>0℃) 2.0V(T≤0℃) | |
| Current | Standard charging current | 100.7A |
| Standard discharging current | 100.7A | |
| Energy density | Gravimetric | 176Wh/kg |
| Volumetric | 375Wh/L | |
| Temp. Condition | Operation (Charge) | 0~55℃ |
| Operation (Discharge) | -20~55℃ | |
| Self-Discharge Rate | Count after fresh cell need Standard Chargeto 50%SOC and storage at 25+2°C for 3 months | ≤3% |
| Cycle Life | 1C/1C,80%DOD 25℃ EOL 80% 3%~98%SOC | 2500 cycles |
| Abuse test | Overcharge, Over-discharge, Short, Heat | GB/T 31485-2015 |
